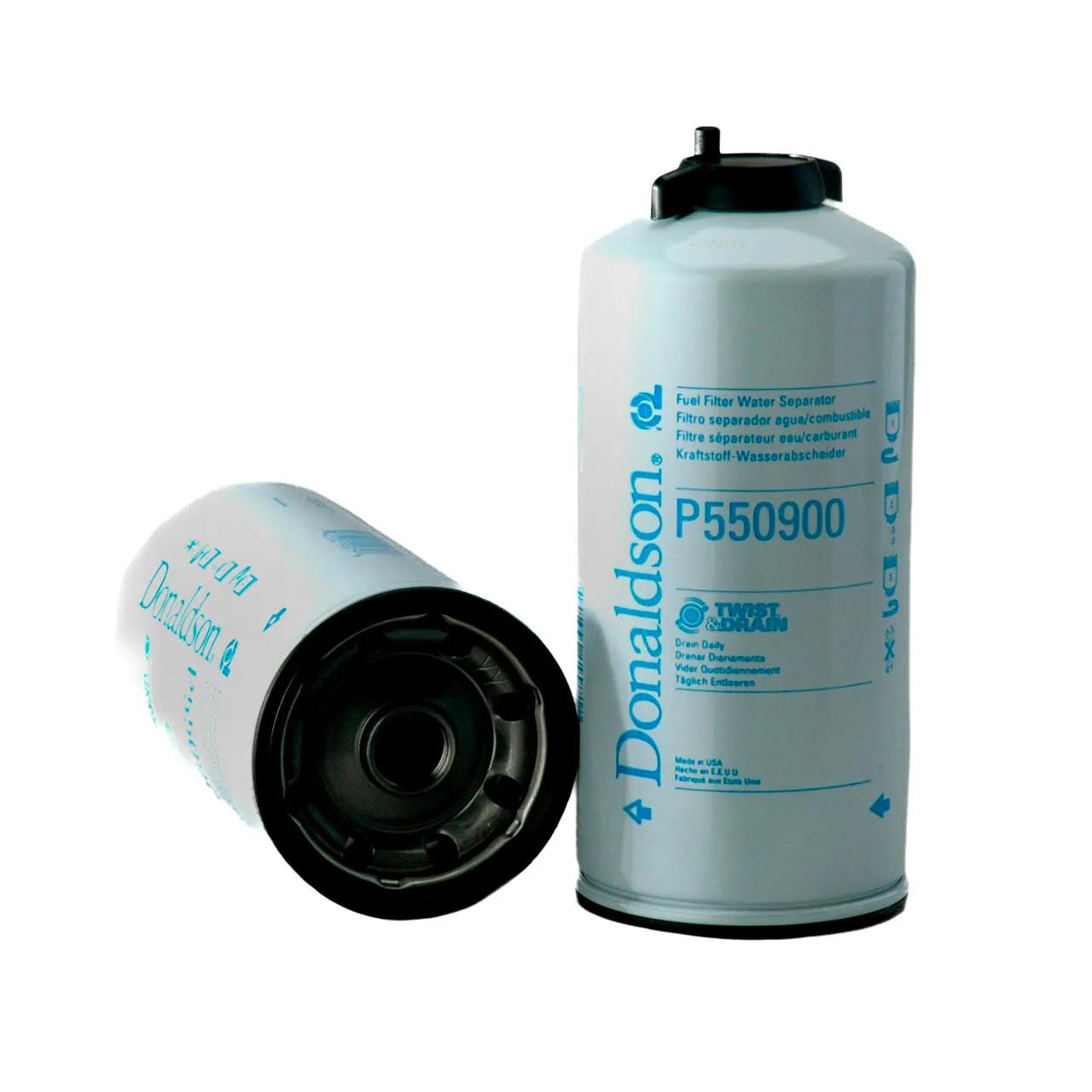

Donaldson Fuel/Water Separator Spin-On Filter, 9.78 in Length, 1-14 UN Thread, 4.23 in OD, 20 Micron Efficiency
#DONP550900
Product Overview
Donaldson fuel filter and water separator with cellulose media, spin-on style featuring a standard drain valve. Designed to deliver 20 micron filtration efficiency with 85% emulsified water removal, meeting SAE J1985 standards for superior performance in on- and off-road applications.Fuel Filter, Water Separator, Cellulose Media, 0.85 Filter Efficiency, Filter Rating: 20 micron, 3.54 in Gasket I.D., 3.86 in Gasket O.D., 4.22 in OD, Stand Pipe: Yes, Standards: SAE J1985, Spin-On, 1-14 UN Thread, For Standard Drain Valve, 9.78 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | Standard Drain Valve |
| Diameter Range | 4 to 4.99 in |
| Emulsified H2O Efficiency | 85 Percent |
| Gasket ID | 3.54 in (90 mm) |
| Gasket OD | 3.86 in (98.1 mm) |
| Length | 9-25/32 in |
| Notes | Not for Marine Applications |
| Outer Diameter | 4.23 in (107.3 mm) |
| Length Range | 9 to 9.99 in |
| Stand Pipe | Yes |
| Thread Size | 1-14 UN |
| Filter Efficiency | 0.85 |
| Filter Rating | 20 micron |
| Filter Type | Water Separator |
| Thread Size | 1-14 UN |
| Media Type | Cellulose |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| 86607 |
| 86606 |
| J8621170 |
| FS20051 |
| PS11185 |
| SN55436 |
| SN55437 |
| SN55438 |
| SN55441 |
| 3608 |
| SK3322 |
| SK3137 |
| 33608 |
| 4238521 |
| STCX769A |
| STCX769B |
| STCX770 |
| STCX771A |
| STCX771B |
| 7992091 |
| 6003722 |
| 3222343171 |
| 6060008045 |
| 2658383143 |
| 55198718 |
| 912028700 |
| EN1001 |
| 69038969 |
| 2110146 |
| 187609 |
| 803442628 |
| SN55450 |
| 4587259 |
| 1749570 |
| 4238525 |
| 4238522 |
| 800157349 |
| PS10264 |
| FS19820 |
| FS19843 |
| FS19968 |
| FS20007 |
| BF1284SP |
| BF1351S |
| BF1351SP |
| LFF6770 |
| LFF6771 |
| LFF67712360976900 |
| 3606 |
| 3786 |
| 3787 |
| 3789 |
| BF1374SP |
| BF9811SP |
| AF550626 |
| FS550626 |
| 33606 |
| 33786 |
| 33787 |
| 33789 |
| 332095668 |
| 4238524 |
| 4312 |
| 1R0769 |
| 1R0770 |
| 1R0771 |
| 1R0781 |
| 3261641 |
| 3261642 |
| 86786 |
| 86787 |
| 3261644 |
| 33607 |
| 3607 |
| 3751 |
| 33751 |
| 283809 |
| 3261643 |
| BF1397-SP |
| BF1397SP |
| BF1399-SP |
| HLC1147889 |
| P550626 |
| PS11 |
| 86608 |
| 86751 |
| 3261643FILTER |
| 326-1641 |
| BF9903-SP |
