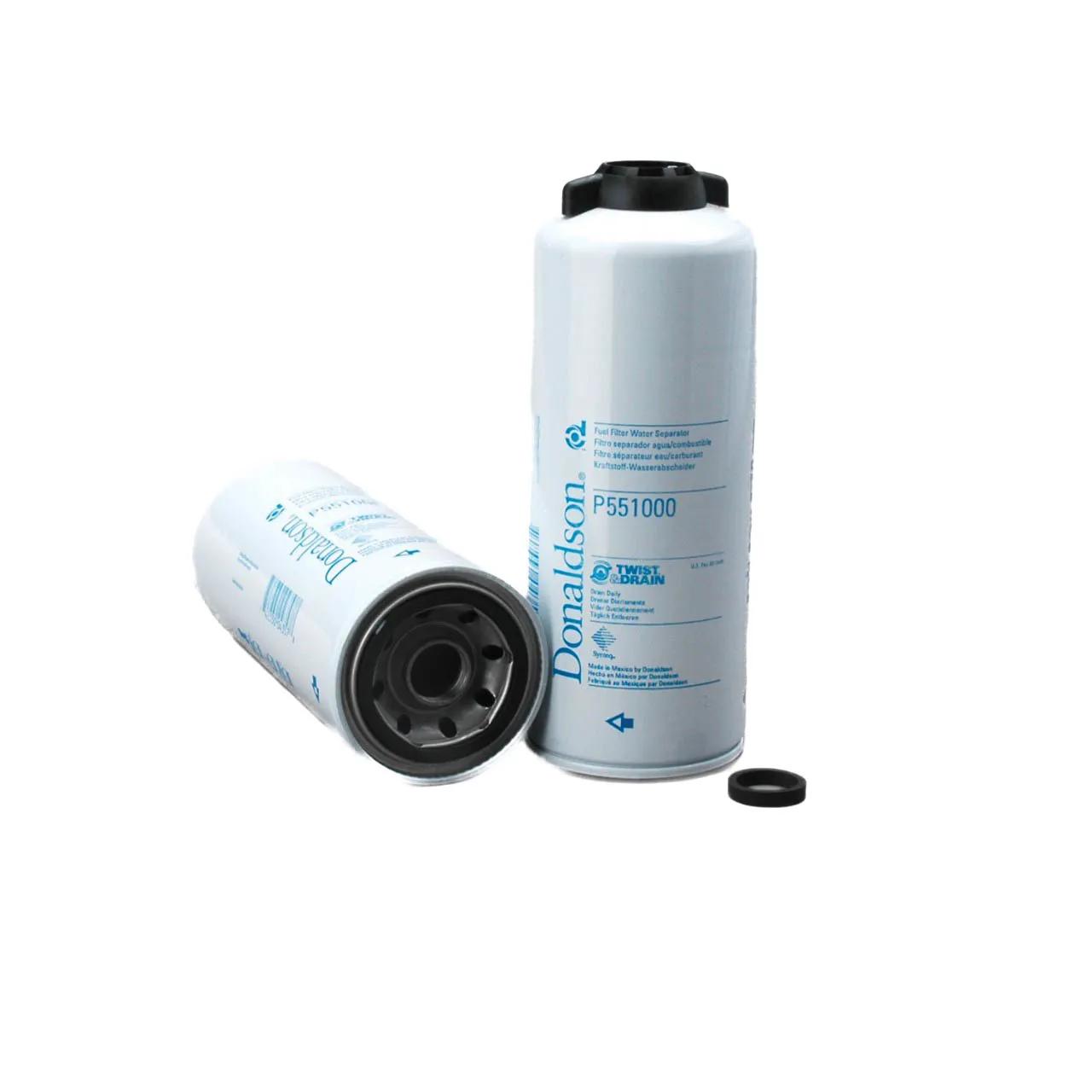

Donaldson Fuel/Water Separator Spin-On Filter, 9.92 in Length, 1-14 UN Thread, 3.66 in OD, Composite Media, 10 Micron Efficiency
#DONP551000
Product Overview
Fuel Filter, Water Separator, Composite Media, Collapse Burst Pressure: 75 psi, 0.96 Filter Efficiency, Filter Rating: 10 micron, 2.44 in Gasket I.D., 2.83 in Gasket O.D., 3.66 in OD, Stand Pipe: Yes, Standards: SAE J1488, J1985, Spin-On, 1-14 UN Thread, 9.92 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 10 Micron |
| Emulsified H2O Efficiency | 96 Percent |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 9.92 in |
| Notes | Not for Marine Applications |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 9 to 9.99 in |
| Stand Pipe | Yes |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Type | Water Separator |
| Collapse Burst Pressure | 75 psi |
| Filter Efficiency | 0.96 |
| Filter Rating | 10 micron |
| Filter Type | Water Separator |
| Thread Size | 1-14 UN |
| Media Type | Composite |
| Standards | SAE J1488, J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| ABPN10GFS1000 |
| BF1259 |
| BF1249 |
| 86406 |
| J8620000 |
| EFF9090 |
| 40C0433 |
| FF105HP |
| FS1000 |
| FSR81000 |
| PS6829 |
| PS8048 |
| GPP1000 |
| BF1249SP |
| FF1063 |
| H181WK |
| SN55001 |
| SN40512 |
| FS344 |
| LFF1000 |
| WK965 |
| WK965X |
| 3406 |
| A1259SP |
| F71000 |
| Z822 |
| FC5709 |
| SK3215 |
| SFF1000 |
| 33406 |
| 33406MP |
| TP1292 |
| 72515622 |
| 95406 |
| 5541709800 |
| 95431 |
| 10064607 |
| 84557707 |
| J329289 |
| 2568753 |
| 3I2113 |
| 459300015901 |
| VF2822 |
| 9826250880001 |
| FSW4140 |
| 3161407 |
| 3329289 |
| 3843750 |
| 3889716 |
| 5001779 |
| 47400033 |
| DNP551000 |
| 3381757H1 |
| 4377880 |
| 43778801 |
| E12977622 |
| L4377880 |
| 1515707 |
| 11NB70010 |
| 04FS1000 |
| 57479123 |
| 32925968 |
| RE160384 |
| 807201962 |
| YE3329289 |
| YEFS1000 |
| YN02PU1010P1 |
| 1310368H2 |
| 131036H2 |
| BF2486 |
| CU3329289 |
| CUFS1000 |
| BR1100P |
| 5614398 |
| 53C0650 |
| 2191P551000 |
| 4136470 |
| 29213450 |
| X57536400006 |
| NEOFS1000 |
| 86021254 |
| 86991015 |
| L86991015 |
| 1478371 |
| 19500500 |
| 60205950 |
| 60206018 |
| 1273400213 |
| 15271319 |
| 76194229 |
| 86029143 |
| FF551000 |
| FS551000 |
| 12977622 |
| 85114046 |
| 170013418 |
| 170014406 |
| WGFS1000 |
| WGFS1242 |
| 800105027 |
| 800163516 |
| 1273 400211 |
| ABP N03 F51000 |
| DN P551000 |
| BF1249-SP |
