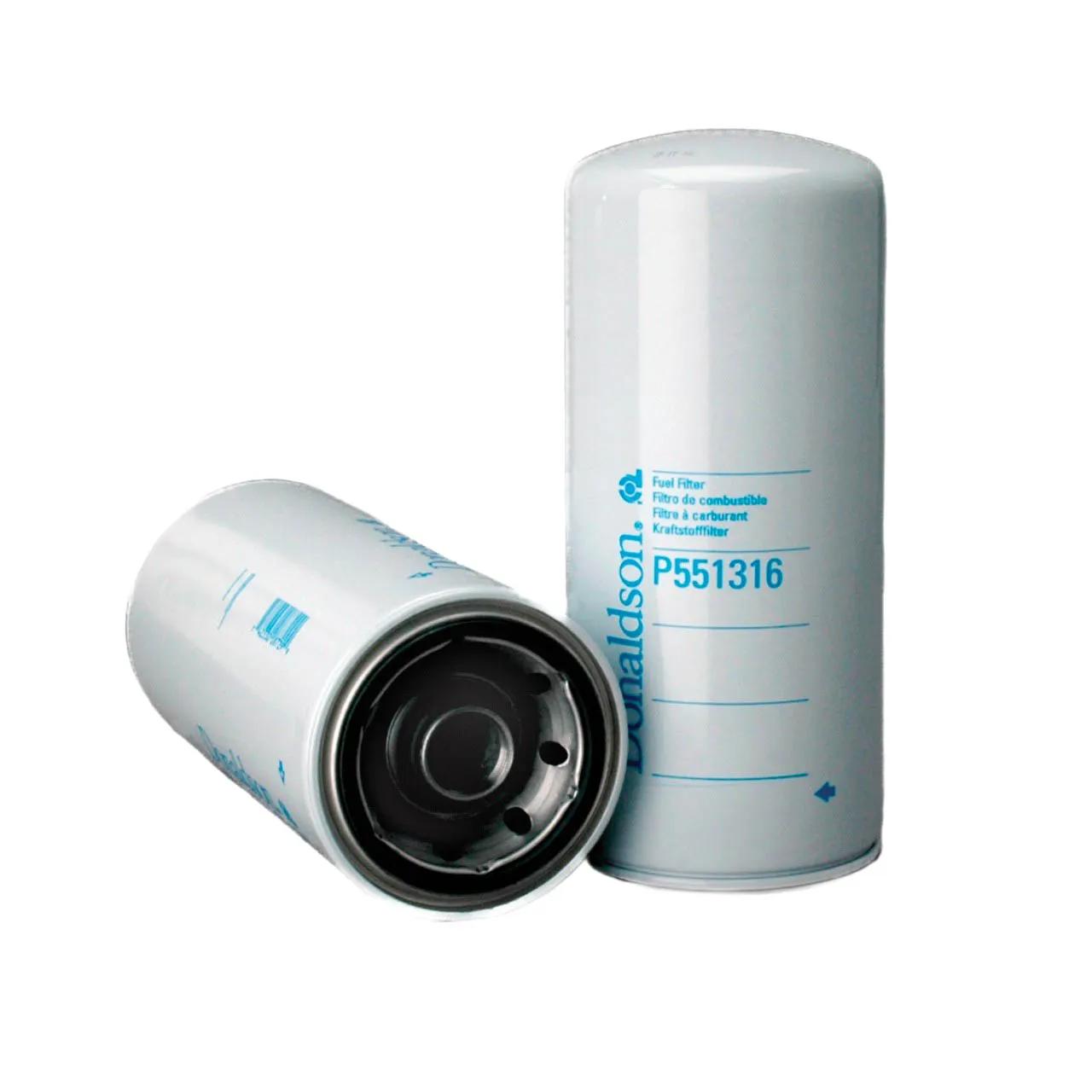

Donaldson Fuel/Water Separator Spin-On Filter, Length 12.13 in, Thread 1 3/8-16 UN, Outer Diameter 5.33 in, Cellulose Media
#DONP551316
Product Overview
Fuel Filter, Cellulose Media, Collapse Burst Pressure: 149 psi, Filter Rating: 4 micron, 3.95 in Gasket I.D., 4.35 in Gasket O.D., 5.32 in OD, Standards: SAE J1858, Spin-On, 1-3/8-16 UN Thread, For CATERPILLAR 1R0755, 12.13 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | Caterpillar 1R0755 |
| Diameter Range | 5 to 5.99 in |
| Efficiency 99% | 4 Micron |
| Emulsified H2O Efficiency | 95 Percent |
| Engine Manufacturer | Caterpillar |
| Gasket ID | 3.95 in (100.4 mm) |
| Gasket OD | 4.36 in (110.8 mm) |
| Length | 12.13 in |
| Outer Diameter | 5.33 in (135.2 mm) |
| Length Range | 12 to 12.99 in |
| Style | Spin-On |
| Thread Size | 1 3/8-16 UN |
| Collapse Burst Pressure | 149 psi |
| Filter Rating | 4 Micron |
| Thread Size | 1 3/8-16 UN |
| Media Type | Cellulose |
| Standards | SAE J1858 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| BF7639 |
| 86685 |
| LFF4102 |

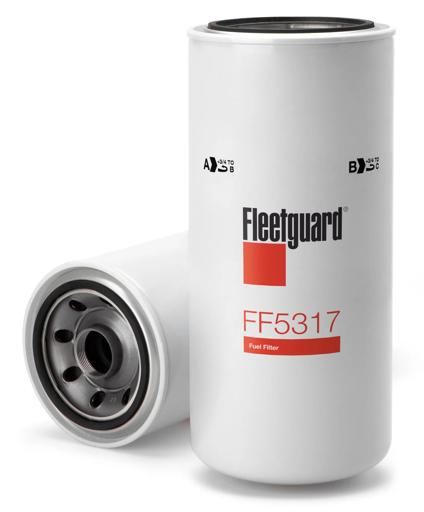

| FF5317 |
| FFR85317 |
| P8430 |
| FF1090 |
| SN55424 |
| F498 |
| WK14001 |
| 3685 |
| SK3354 |
| SFF1316 |
| 33685 |
| 95685 |
| V013569 |
| 3890433 |
| 1R0755 |
| STCX020 |
| 61141061 |
| FF551316 |
| 1001421244 |
| 1000104483 |
| 2110145 |
| WGF1755 |
| 33685NP |
| 3685NP |
| 1003297630 |
| 1003877744 |
| 1004300450 |
| 1008088046 |
| ABP N03 F51316 |
| DN P551316 |
| DN P551316 |
| 016641061 |
| 2657899379E9 |
| 061141061 |
| 1R-0755 |
| 1R755 |
| 2191-P551316 |
| DONP551316 |
| FF5317FLG |
| FIL3685 |
| HLC1134561 |
| TP1525 |
| FF936 |
| 16641061 |
| 297-1143 |
| 364-6612 |
| 389-0433 |
