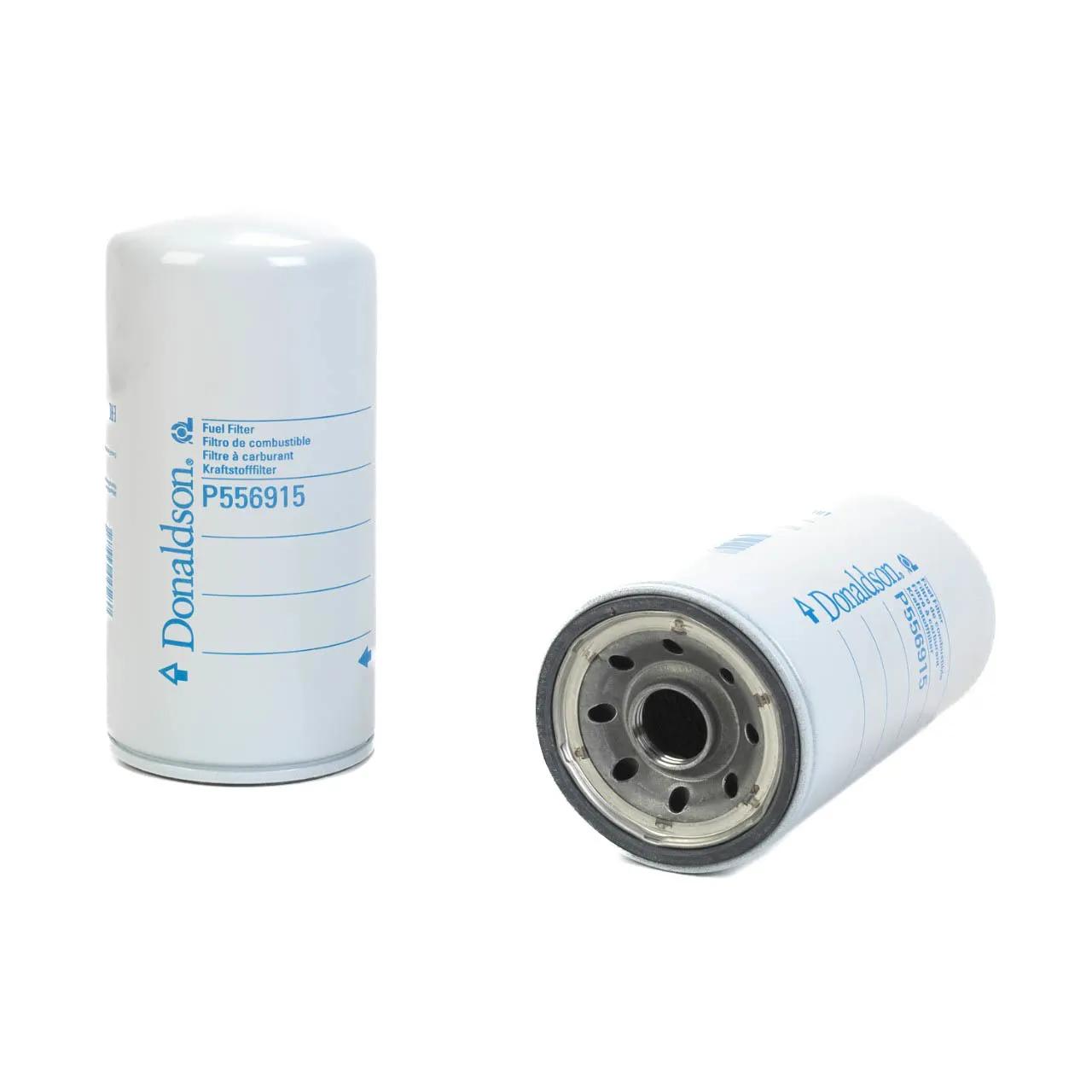

Donaldson Fuel/Water Separator Spin-On Filter, Primary, 7.88 in Length, 1-12 UN Thread, 3.66 in OD, Cellulose Media
#DONP556915
Sommaire du produit
Fuel Filter, Primary, Cellulose Media, Collapse Burst Pressure: 100 psi, Filter Rating: 25 micron, 3.05 in Gasket I.D., 3.39 in Gasket O.D., 3.66 in OD, Standards: SAE J1985, Spin-On, 1-12 UN Thread, For DETROIT Diesel 23517471, 7.87 in L
Caractéristiques et avantages
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
- Donaldson blue fuel filters with Synteq XP media deliver fuel that's up to 4x cleaner than competitors' best filters.
- Best capture and retention of injector damaging contaminants.
- Best performance in heavy-duty environments (inferior filters can shed contaminant during engine vibration).
- Helps minimize expensive repairs and unplanned downtime.
Spécifications
| Application | DETROIT Diesel 23517471 |
| Gasket ID | 3.05 in (77.5 mm) |
| Gasket OD | 3.39 in (86.2 mm) |
| Length | 7-7/8 in |
| Outer Diameter | 3.66 in (92.97 mm) |
| Style | Spin-On |
| Thread Size | 1-12 UN |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 25 micron |
| Filter Type | Primary |
| Thread Size | 1-12 UN |
| Media Type | Cellulose |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges et pièces équivalentes:
| PF207 |
| ABPN10GFF5207 |
| BF580 |
| BF5800 |
| BF5800B |
| BF580B |
| 86118 |
| 86118MP |
| FP815F |
| HF512 |
| LFP815F |
| J8620915 |
| 1146 |
| 9303 |
| GP26 |
| GP26M |
| GP915F |
| FF207 |
| FF5207 |
| FFR8207 |
| FFR85207 |
| NF203 |
| LFP815FN |
| P1146 |
| P1146G |
| P1146GFP |
| 992 |
| F992 |
| FF992 |
| A16009 |
| HDA16009 |
| H185WK |
| SN207 |
| FD2H07 |
| F183 |
| F183A |
| F183AS |
| F183B |
| KF183AR |
| WK96211 |
| FD766 |
| FD766FP |
| FD828 |
| FG766 |
| 3118 |
| 3118MP |
| 4096 |
| PER96 |
| A96 |
| 6694095 |
| F60096 |
| Z105 |
| Z105A |
| FC6501 |
| SK3530 |
| SFF6915 |
| PS2207 |
| PSC138 |
| 24096 |
| 33118 |
| 33118MP |
| 533118 |
| T815 |
| T821 |
| T915 |
| T915D |
| T92 |
| TP815 |
| TP915 |
| TP915D |
| 12915 |
| 29462 |
| SP884 |
| FC20150 |
| 542 |
| 95118 |
| 95118MP |
| SP432M |
| 9709001001 |
| SWT603101 |
| 6438839 |
| 590 |
| 853535036 |
| 7722943 |
| E6HT9155AA |
| E6HZ9155E |
| 2266558 |
| 3I1217 |
| 3I1990 |
| 8T3911 |
| 9Y4417 |
| CO394 |
| 7255091500 |
| L304 |
| 1992216 |
| 3576059 |
| 949838 |
| 961987 |
| 42828001 |
| FF815 |
| AZF051 |
| Z128 |
| PM496 |
| 394 |
| WD394 |
| 23517471 |
| 23518481 |
| 23530706 |
| 25014274 |
| 469441C1 |
| 690 |
| 69016190 |
| FCS43 |
| FT4941 |
| 7723935 |
| 7723943 |
| G1207EC |
| 97173900003 |
| 971739171 |
| 9 |
| 4521002 |
| H180WK |
