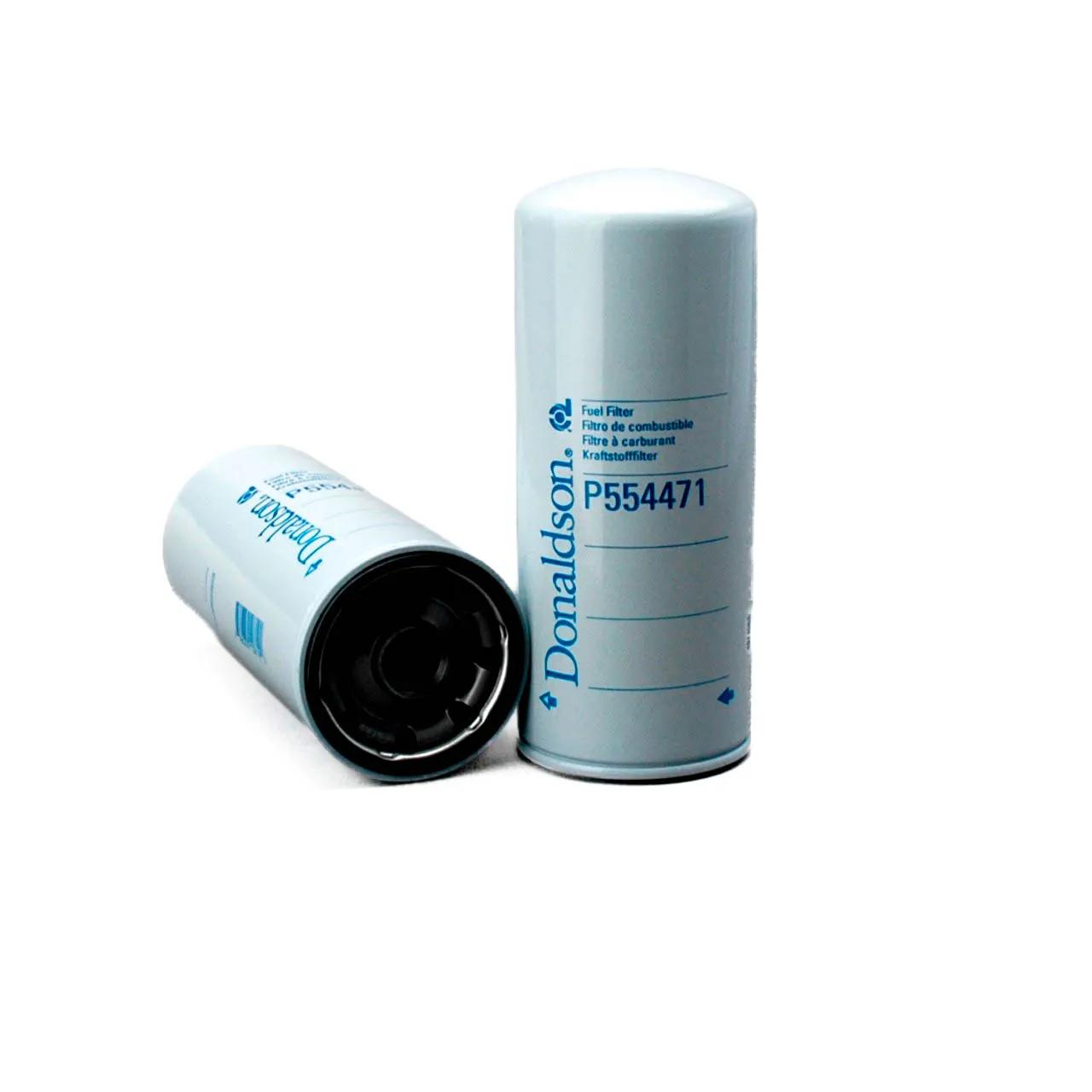

Donaldson Fuel/Water Separator Spin-On Filter, Secondary, 10.31 in Length, M30 x 1.5 Thread, 4.24 in OD, Cellulose Media, 9 Micron
#DONP554471
Product Overview
Fuel Filter, Secondary, Cellulose Media, Collapse Burst Pressure: 100 psi, Filter Rating: 9 micron, 3.56 in Gasket I.D., 3.90 in Gasket O.D., 4.23 in OD, Standards: SAE J1858, Spin-On, M30 x 1.5 Thread, For MACK 483GB471M, 10.31 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | MACK 483GB471M |
| Diameter Range | 4 to 4.99 in |
| Efficiency 99% | 9 Micron |
| Emulsified H2O Efficiency | 95 Percent |
| Gasket ID | 3.56 in (90.5 mm) |
| Gasket OD | 3.9 in (99.1 mm) |
| Length | 10-5/16 in |
| Outer Diameter | 4.24 in (107.5 mm) |
| Length Range | 10 to 10.99 in |
| Style | Spin-On |
| Thread Size | M30 x 1.5 |
| Type | Secondary |
| Vehicle Make | Mack |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 9 micron |
| Filter Type | Secondary |
| Thread Size | M30 x 1.5 |
| Media Type | Cellulose |
| Standards | SAE J1858 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| ABPN10GFF5382 |
| BF7657 |
| 86587 |

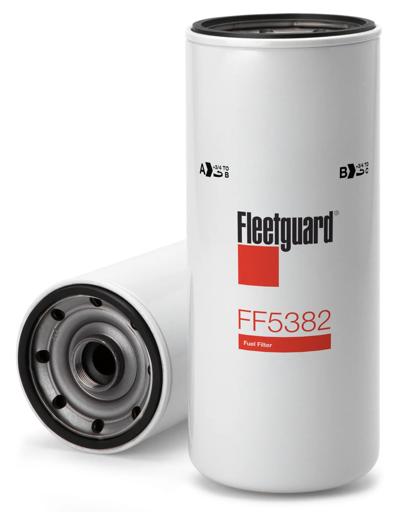

| FF5382 |
| FFR85382 |
| P8050 |
| FF1083 |
| F359 |
| LFF4471 |
| 3587 |
| A7657 |
| F75297 |
| Z1015 |
| 33587 |
| 95587 |
| 2191P554471 |
| 25502422 |
| 483GB471M |
| FF554471 |
| 85114067 |
| WGF5382 |
| ABP N03 F54471 |
| ABP N10G FF5382 |
| DN P554471 |
| DN P554471 |
| LFF 4471 |
| 2191-P554471 |
| 250929 |
| BF7657JAB |
| DONP554471 |
| FF33587 |
| FF5382FLG |
| FIL3587 |
| G2282 |
| TWDP554471 |
| TP1340 |
