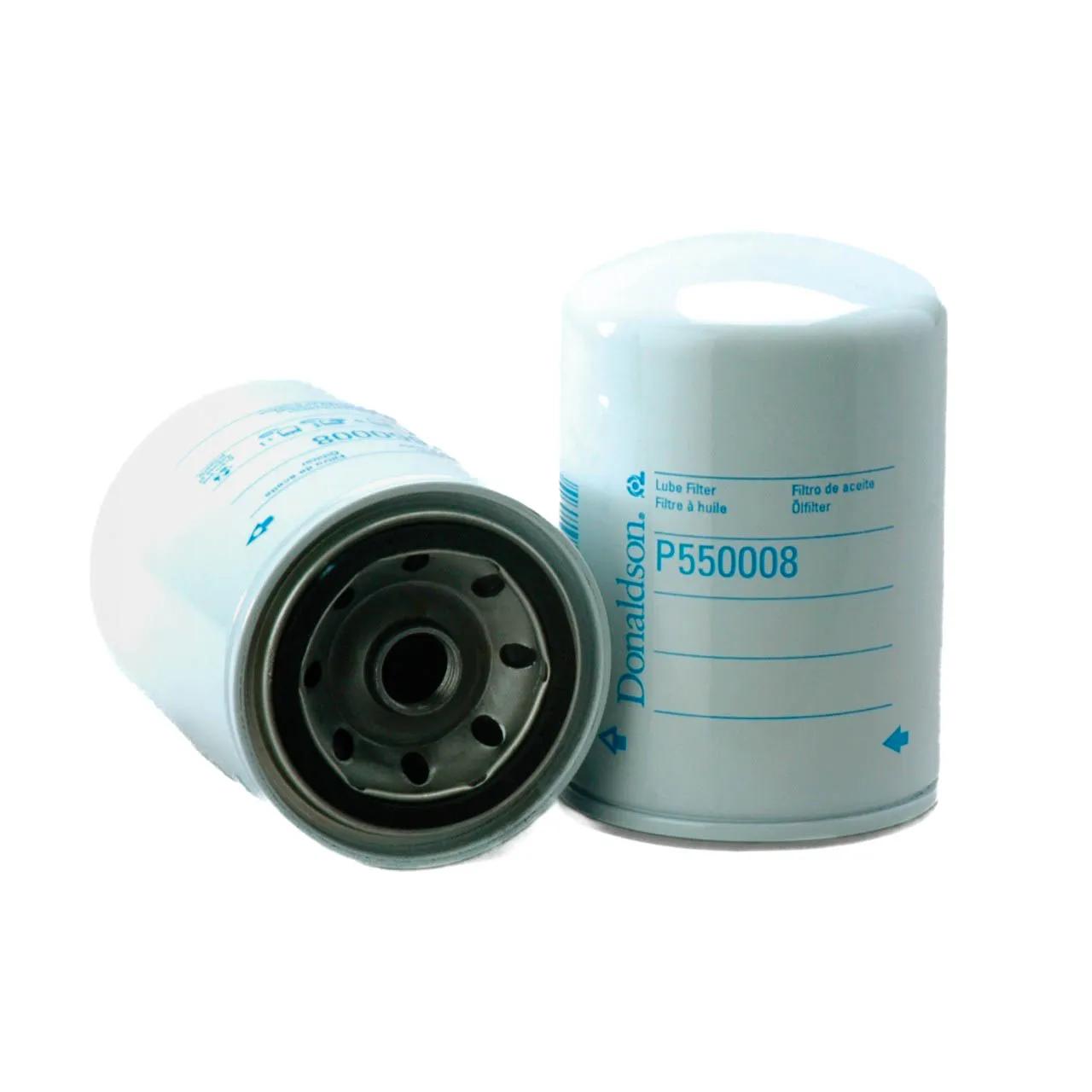

Donaldson Full-Flow Engine Oil Filter, Spin-On, 5.36 in Length, 3/4-16 UN Thread, 3.66 in Outer Diameter
#DONP550008
Product Overview
Lube Filter, Full-Flow, Cellulose Media, Anti-Drainback Valve: Yes, Yes Bypass Valve, Collapse Burst Pressure: 100 psi, Filter Rating: 40 micron, 2.44 in Gasket I.D., 2.85 in Gasket O.D., 10 psi High, 7 psi Low Pressure, Standards: SAE J1858, Spin-On, 3/4-16 UN Thread, 5.35 in L
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
- Deliver essential engine protection for maximum cold flow performance
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 0.7 bar |
| Bypass Valve Setting LR | 0.5 bar |
| Efficiency 99% | 40 Micron |
| Efficiency Test Std | SAE J1858 |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.85 in (72.4 mm) |
| Length | 5.36 in (136.2 mm) |
| Style | Spin-On |
| Thread Size | 3/4-16 UN |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 40 micron |
| Filter Type | Full-Flow |
| Thread Size | 3/4-16 UN |
| Media Type | Cellulose |
| Pressure Rating | 7 psi Low, 10 psi High |
| Standards | SAE J1858 |
| Width | 3.66 in |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| PL3313 |
| AL1 |
| AL1JA |
| APH8 |
| ABPN10GLF3313 |
| B1 |
| B2 |
| B246 |
| B249 |
| B253 |
| BT266 |
| BT524 |
| DL2 |
| V1F |
| V2F |
| BT8922 |
| BT111 |
| 85015 |
| 85515 |
| 85515MP |
| 85525 |
| 85775 |
| 3114001 |
| 3114003 |
| 3138001 |
| 3174007 |
| AR1A |
| OF01 |
| PH1 |
| PH1A |
| PH256 |
| PH8 |
| PH8A |
| J8611010 |
| OF8A |
| 545 |
| 637 |
| 9362 |
| 10M2530 |
| 1OM2530 |
| FFUP401 |

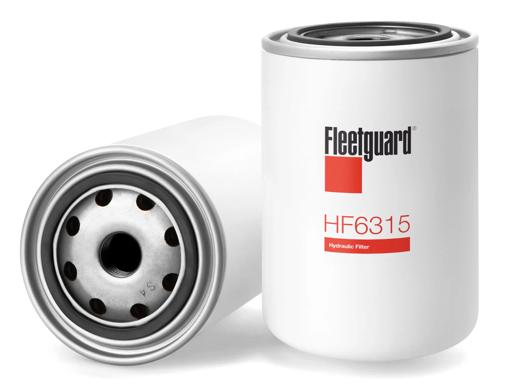

| HF6315 |
| LF16208 |
| LF3306 |

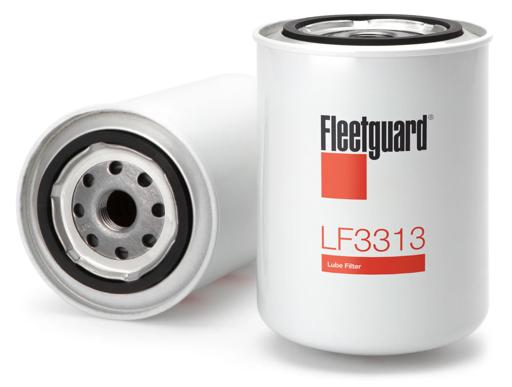

| LF3313 |
| LF3313J |

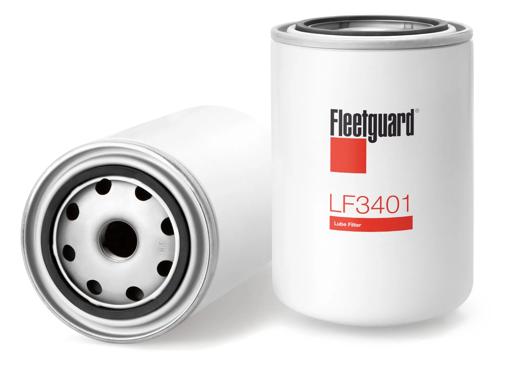

| LF3401 |
| LF3418 |
| LF551 |
| LF551A |
| LF350 |
| LFR83306 |
| LFR83313 |
| LFR83353 |
| LFR83401 |
| LFR83530 |
| LFR8551 |
| LFR8551A |
| BPH8A |
| DG8A |
| GH230 |
| P4104 |
| P8A |
| PH12 |
| PH19 |
| PH19A |
| PH2803 |
| PH2812 |
| PH2827 |
| PH2828 |
| PH2879 |
| PH2996 |
| PH2996A |
| PH3 |
| PH32 |
| PH33 |
| PH3381 |
| PH3509 |
| PH4825 |
| PH4854 |
| PH8AFP |
| XG8A |
| GP1 |
| GP1M |
| GP32M |
| 115A |
| LF115 |
| LF15 |
| LF344 |
| LF470 |
| P115A |
| T115A |
| H12W |
| H17W |
| H17W02 |
| H17WD01 |
| H19W02 |
| H24W04 |
| SO053 |
| SH62171 |
| JC110 |
| KL250029 |
| KL320014 |
| D22 |
| D33 |
| KL22 |
| L113 |
| L22 |
| L45 |
| L61 |
| L76 |
| L2 |
| L7 |
| L334 |
| LFP1 |
| LFP11 |
| LFP1A |
| LFP8509 |
| PH453 |
| W9404 |
| K94023 |
| W8006 |
| W80061 |
| W8130 |
| W93020 |
| W93021 |
| W93280 |
| W936 |
| W9401 |
| W94013 |
| W94022 |
| W94081 |
| WD940 |
| WP940 |
| W94049 |
| UL358 |
| MH301 |
| MH319 |
| MH319P |
| MH328P |
| MH337 |
| MH337P |
| MH340P |
| MH347 |
| MH347P |
| MH370 |
| MH379 |
| F1A |
| T1623 |
| MO8A |
| AFL1 |
| EFL1 |
| EFL230 |
| EFL282 |
| EFL316 |
| EFL60 |
| E |
| 94292 |
| P550008 |
| 11495 |
| 812684 |
| 451104003 |
