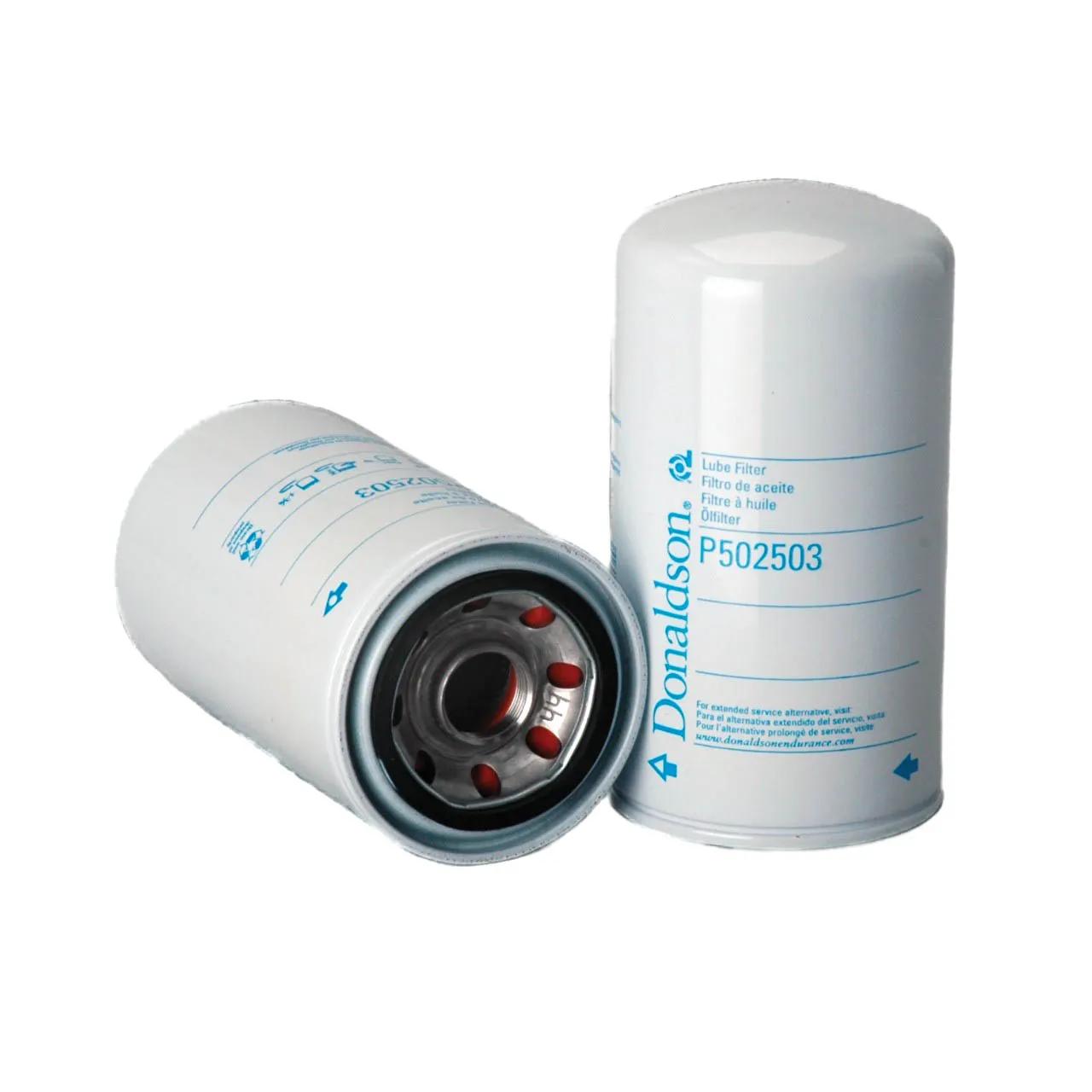

Donaldson Full-Flow Engine Oil Filter, Spin-On, Synthetic Media, 6.5 in Length, 1-16 UN Thread, 3.66 in OD
#DONP502503
Product Overview
Delivers essential engine protection for maximum cold flow performance with synthetic media for enhanced filtration.Lube Filter, Full-Flow, Synthetic Media, Anti-Drainback Valve: Yes, Yes Bypass Valve, Collapse Burst Pressure: 100 psi, Filter Rating: 15 micron, 2.44 in Gasket I.D., 2.64 in Gasket O.D., 17 psi High, 11 psi Low Pressure, Standards: ISO 4548-12, Spin-On, 1-16 UN Thread, 6.5 in L
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
- Deliver essential engine protection for maximum cold flow performance
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.2 bar |
| Bypass Valve Setting LR | 0.76 bar |
| Efficiency Test Std | ISO 4548-12 |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.64 in (67.1 mm) |
| Length | 6.5 in (165.1 mm) |
| Style | Spin-On |
| Thread Size | 1-16 UN |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 15 micron |
| Filter Type | Full-Flow |
| Thread Size | 1-16 UN |
| Media Type | Synthetic |
| Pressure Rating | 17 psi High, 11 psi Low |
| Standards | ISO 4548-12 |
| Width | 3.66 in |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| B7379 |
| 84151 |

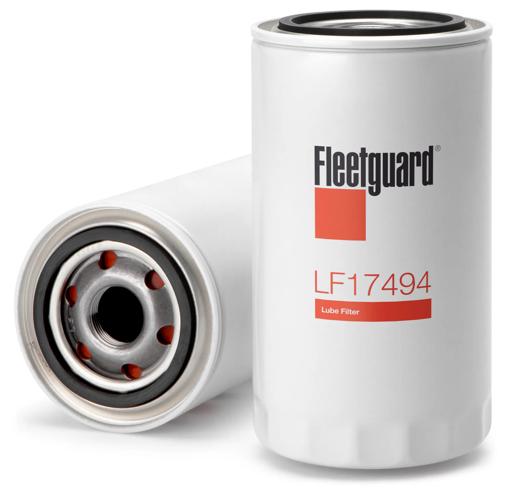

| LF17494 |
| PH10890 |
| LF651 |
| LFP2051 |
| L46128 |
| LF2124S |
| FL2051 |
| FL2051S |
| 7151 |
| S10890XL |
| 57151MP |
| 57151 |
| 57151XP |
| BC3Z6731A |
| BC3Z6731B |
| FL2124S |
| 47151 |
| 27151 |
| 2191-P502503 |
| BT8421MPG |
| FL57151 |
| PG6128 |
| ABP N03 L02503 |
| MU2Z6731C |
