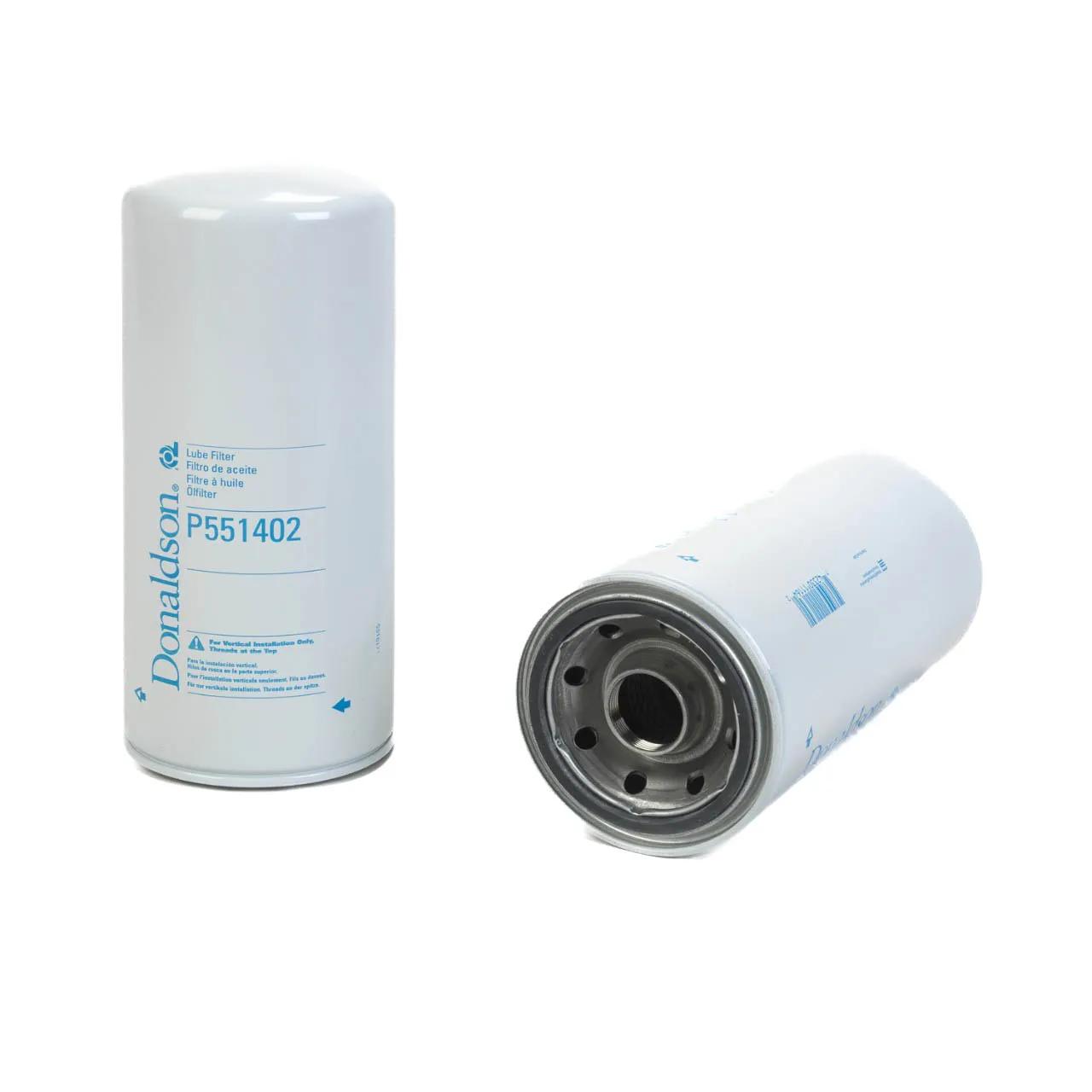

Donaldson Full-Flow Spin-On Engine Oil Filter, 12.13 in Length, 1 1/2-16 UN Thread, 5.32 in Outer Diameter
#DONP551402
Product Overview
Lube Filter, Full-Flow, Cellulose Media, Yes Bypass Valve, Filter Rating: 21 micron, 3.94 in Gasket I.D., 4.29 in Gasket O.D., 39 psi High, 32 psi Low Pressure, Standards: ISO 16889, Spin-On, 1-1/2-16 UN Thread, For Vertical Installation Only Threads at the Top, 12.13 in L
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
- Deliver essential engine protection for maximum cold flow performance
Specifications
| Application | Vertical Installation Only Threads at the Top |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 2.7 bar |
| Bypass Valve Setting LR | 2.2 bar |
| Diameter Range | 5 to 5.99 in |
| Efficiency 99% | 21 Micron |
| Emulsified H2O Efficiency | 95 Percent |
| Gasket ID | 3.94 in (100.1 mm) |
| Gasket OD | 4.29 in (109.3 mm) |
| Length | 12.13 in (308.2 mm) |
| Length Range | 12 to 12.99 in |
| Style | Spin-On |
| Thread Size | 1 1/2-16 UN |
| Vehicle Make | Vertical Installation Only – Threads At The Top |
| Filter Rating | 21 micron |
| Filter Type | Full-Flow |
| Thread Size | 1 1/2-16 UN |
| Media Type | Cellulose |
| Pressure Rating | 39 psi High, 32 psi Low |
| Standards | ISO 16889 |
| Width | 5.32 in |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| DN P551402 |
| DN P551402 |
| 0031845301 |
| E12979440 |
| LFR83957 |
| X54418300057 |
| PH3184 |
| LF16245 |

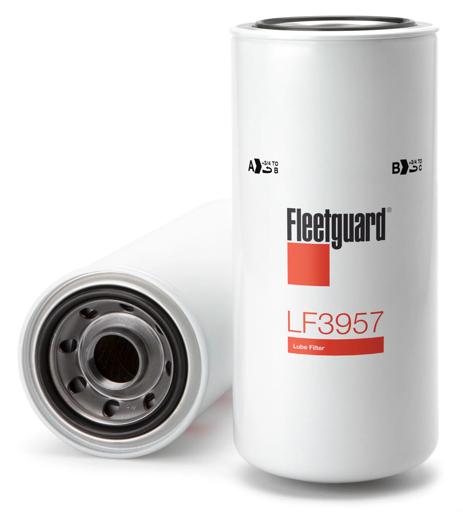

| LF3957 |
| B7180 |
| F59 |
| GM13224 |
| 23526919 |
| WD131454 |
| 7036 |
| B7150 |
| PC47 |
| XD34 |
| 15273756 |
| LF551402 |
| 57036 |
| E12980372 |
| 8037451 |
| 330242185 |
| SP4719 |
| 330510031 |
| SO10036 |
| FHU704 |
| 84036 |
| 23540039 |
| 5241800110 |
| 5361840001 |
| 2191-P551402 |
| DONP551402 |
| HLC1081469 |
| LF3957FLG |
| PH10809 |
| 4152445 |
| LFP2248 |
| LF682 |
| PF1286 |
| 31845301 |
