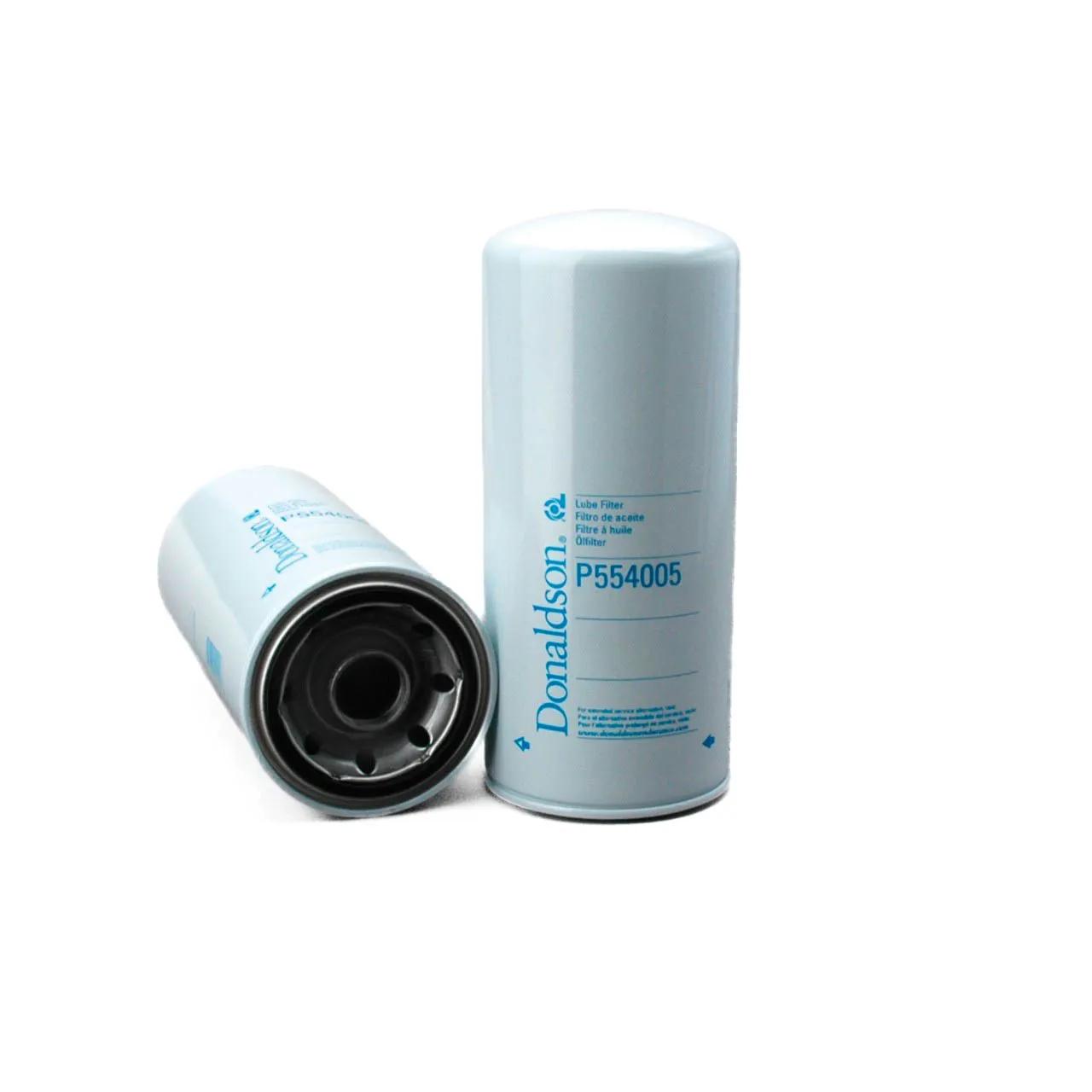

Donaldson Full-Flow Spin-On Engine Oil Filter, Length 12.13 in, Thread 1 1/2-16 UN, Outer Diameter 5.38 in
#DONP554005
Product Overview
Lube Filter, Full-Flow, Cellulose Media, Collapse Burst Pressure: 149 psi, Filter Rating: 40 micron, 3.94 in Gasket I.D., 4.33 in Gasket O.D., Spin-On, 1-1/2-16 UN Thread, 12.13 in L
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
- Deliver essential engine protection for maximum cold flow performance
Specifications
| Gasket ID | 3.94 in (100.1 mm) |
| Gasket OD | 4.34 in (110.3 mm) |
| Length | 12.13 in |
| Style | Spin-On |
| Thread Size | 1 1/2-16 UN |
| Collapse Burst Pressure | 149 psi |
| Filter Rating | 40 Micron |
| Filter Type | Full-Flow |
| Thread Size | 1 1/2-16 UN |
| Media Type | Cellulose |
| Width | 5.38 in |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| A69 |
| A69SP |
| 4804381 |
| 68562224OLD |
| Z869 |
| ABP N03 L54005 |
| ABP N10G LF691A |
| ABP N10G LF691 |
| DN P554005 |
| DN P554005 |
| LFP 4005 |
| 012706480 |
| 025021 |
| 085693 |
| 012335 |
| 001002065 |
| G 292.100.471.110 |
| 00811407 |
| 0451403210 |
| 00499074 |
| ZP538 |
| 9334 |
| A309Y |
| PL691 |
| ABPN10GLF691A |
| 6201041024 |
| 40035123 |
| Y05017412 |
| 69002783 |
| FT4940 |
| LFR83374 |
| LFR83566 |
| LFR8691A |
| LFR89691 |
| LFR89691A |
| NL309 |
| OC21060 |
| 9576P554005 |
| SFO4005 |
| HPH3335 |
| P8021 |
| PH3335 |
| PH3335FP |
| PH3545FP |
| DNP554005 |
| FO1288 |
| 852 |

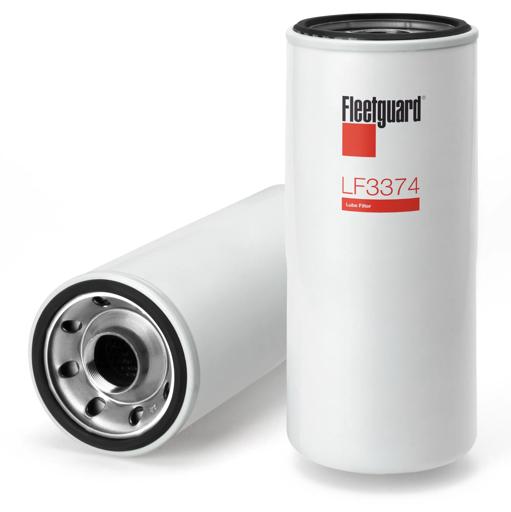

| LF3374 |
| LF691A |
| 92792 |
| 92848 |
| 9058S1 |
| P518 |
| GP52 |
| GP52M |
| GP691 |
| G051792 |
| 9414100363 |
| SDF73 |
| Z184 |
| HD0351 |
| HD3850 |
| A15005 |
| HDA15005 |
| H300W04 |
| H300WD01 |
| 3095171 |
| FP359 |
| LF282 |
| LF282XS |
| P359 |
| 2P4005 |
| 35362235 |
| 38480810 |
| 5218323 |
| 52183233 |
| 92036219 |
| AT82193 |
| 45495 |
| 52763112 |
| AML691 |
| SO691 |
| KL800020 |
| KL190 |
| L1904 |
| L190R |
| L190RMO |
| L190RU |
| OC122 |
| FB99 |
| 4425274 |
| KW691 |
| LW691 |
| LFP4005 |
| LFP4005HE |
| LFP4005XL |
| SP425 |
| PH4005 |
| 499144274 |
| PF2101 |
| AP77501 |
| AP77501A |
| LK77501 |
| LK97500 |
| 25021 |
| 2191P554005 |
| 3216165500 |
| 3216953103 |
| FL326 |
| FL326FP |
| 51055040066 |
| 51055040067 |
| W131452 |
| WD13125 |
| WD131451 |
| PF879 |
| PF879L |
| KFO0332594 |
| PC2 |
| 2KYR3 |
| PH3335341 |
| PF2101F |
| P554005 |
