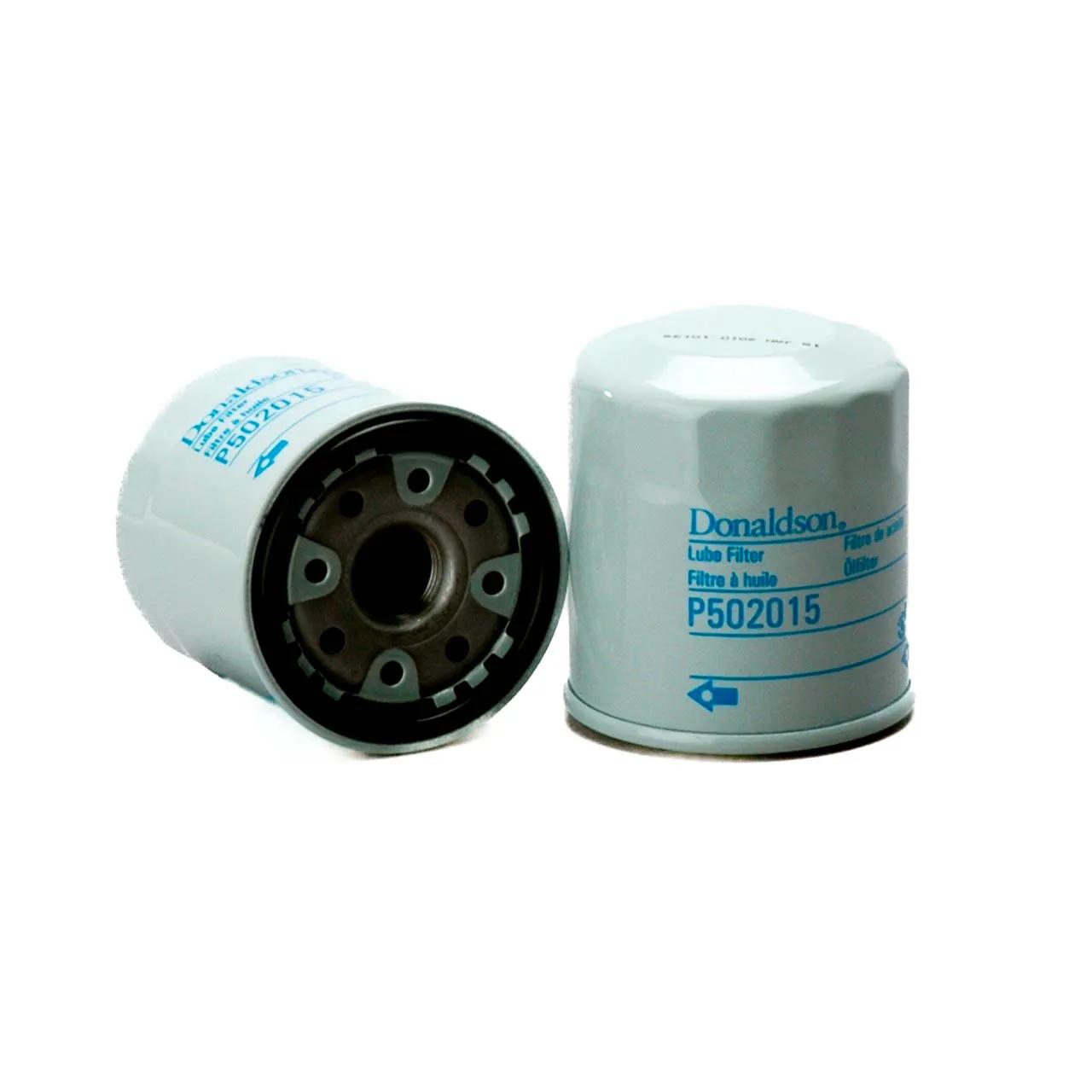

Donaldson Full-Flow Spin-On Engine Oil Filter, Length 2.91 in, Outer Diameter 2.56 in, Cellulose Media
#DONP502015
Product Overview
Donaldson full-flow spin-on lube filter designed to keep today's engine lubrication systems functioning at peak performance. Features cellulose media for effective contaminant capture, delivering essential engine protection and maximum cold flow performance.Lube Filter, Full-Flow, Cellulose Media, Anti-Drainback Valve: Yes, Yes Bypass Valve, Collapse Burst Pressure: 100 psi, Filter Rating: 20 micron, 2.19 in Gasket I.D., 2.49 in Gasket O.D., 15 psi High, 12 psi Low Pressure, Standards: JIS D 1611, Spin-On, 3/4-16 UN Thread, For TOYOTA 9091503001, 2.91 in L
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
- Deliver essential engine protection for maximum cold flow performance
Specifications
| Anti-Drainback Valve | Yes |
| Application | TOYOTA 9091503001 |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1 bar |
| Bypass Valve Setting LR | 0.8 bar |
| Efficiency 50% | 20 Micron |
| Efficiency Test Std | JIS D 1611 |
| Gasket ID | 2.19 in (55.7 mm) |
| Gasket OD | 2.49 in (63.3 mm) |
| Length | 2.91 in (74 mm) |
| Style | Spin-On |
| Vehicle Make | Toyota |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 20 micron |
| Filter Type | Full-Flow |
| Thread Size | 3/4-16 UN |
| Media Type | Cellulose |
| Pressure Rating | 15 psi High, 12 psi Low |
| Standards | JIS D 1611 |
| Width | 2.56 in |
| Product Category | Lube Filter |
Interchanges & Equivalent parts:
| B33 |
| B131 |
| 85288 |
| 85366 |
| 85394 |
| 85395 |
| 85625 |
| 2I8660 |
| C138 |
| PH2840 |
| DOF8102 |
| 346 |
| 966 |
| L183 |
| L966 |
| 2079 |
| 366 |
| 691 |
| OP572 |

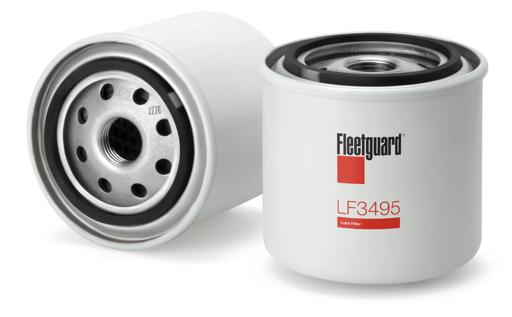

| LF3495 |
| LF3614 |
| LFR83614 |
| DG4967 |
| PH2951A |
| PH3568 |
| PH4478 |
| TG4967 |
| GP3816 |
| 155A |
| 157A |
| 384A |
| LF155 |
| LF384 |
| LF400 |
| LF410 |
| P157 |
| P400 |
| H90W02 |
| H90W04 |
| H97W07 |
| T3142 |
| T1636 |
| L210A |
| L24R |
| L33 |
| PH2821A |
| ML1009 |
| W681 |
| W6880 |
| W7120 |
| W71219 |
| W7135 |
| W683 |
| 1150101800 |
| 1501000 |
| MH374 |
| T501 |
| MO4967 |
| EFL163 |
| EFL168 |
| EFL391 |
| EFL89 |
| FL836 |
| 1366 |
| 1394 |
| 1395 |
| 1625 |
| 21394 |
| A14476 |
| A14476PLUS |
| A4041 |
| A14477 |
| FCO201 |
| FCO258 |
| L10183 |
| L14476 |
| L22821 |
| OC95 |
| PC20 |
| PC201 |
| PC26 |
| PC321 |
| PER183 |
| PER275 |
| PER2821A |
| PER4476 |
| PL14476 |
| Z191 |
| Z386 |
| C1107 |
| C1109 |
| C11091 |
| C11095 |
| C12021 |
| C2204 |
| C22041 |
| C3001 |
| SP40151 |
| S02821 |
| S0966 |
| S4967 |
| STP2840 |
| SFO1001 |
| SFO3171 |
| SFO7103 |
| 9350605 |
| OC216 |
| OC89 |
| C110 |
| 2313100 |
| 2316900 |
| 2326300 |
| 2326340 |
| 2327000 |
| 51366 |
| 51394 |
| 51395 |
| 51625 |
| 551394 |
| PF1219 |
| PF1233 |
| PF54 |
| SD3 |
| X18 |
| X20 |
| X72 |
| 88905889 |
| 77201898 |
| SP1008 |
| SP925 |
| SP926 |
| SP991 |
| TO137 |
| 114212580390 |
| 721014983 |
| ABH966 |
| 4100P0624 |
| J1312010 |
| KC110 |
| OC18090 |
| OC18140 |
| SC110 |
| SKC1109 |
| VO40 |
| YC110 |
| 20 |
| 986452017 |
| 451103043 |
| 451103050 |
| 92326340 |
| 451102002 |
| SP4069 |
