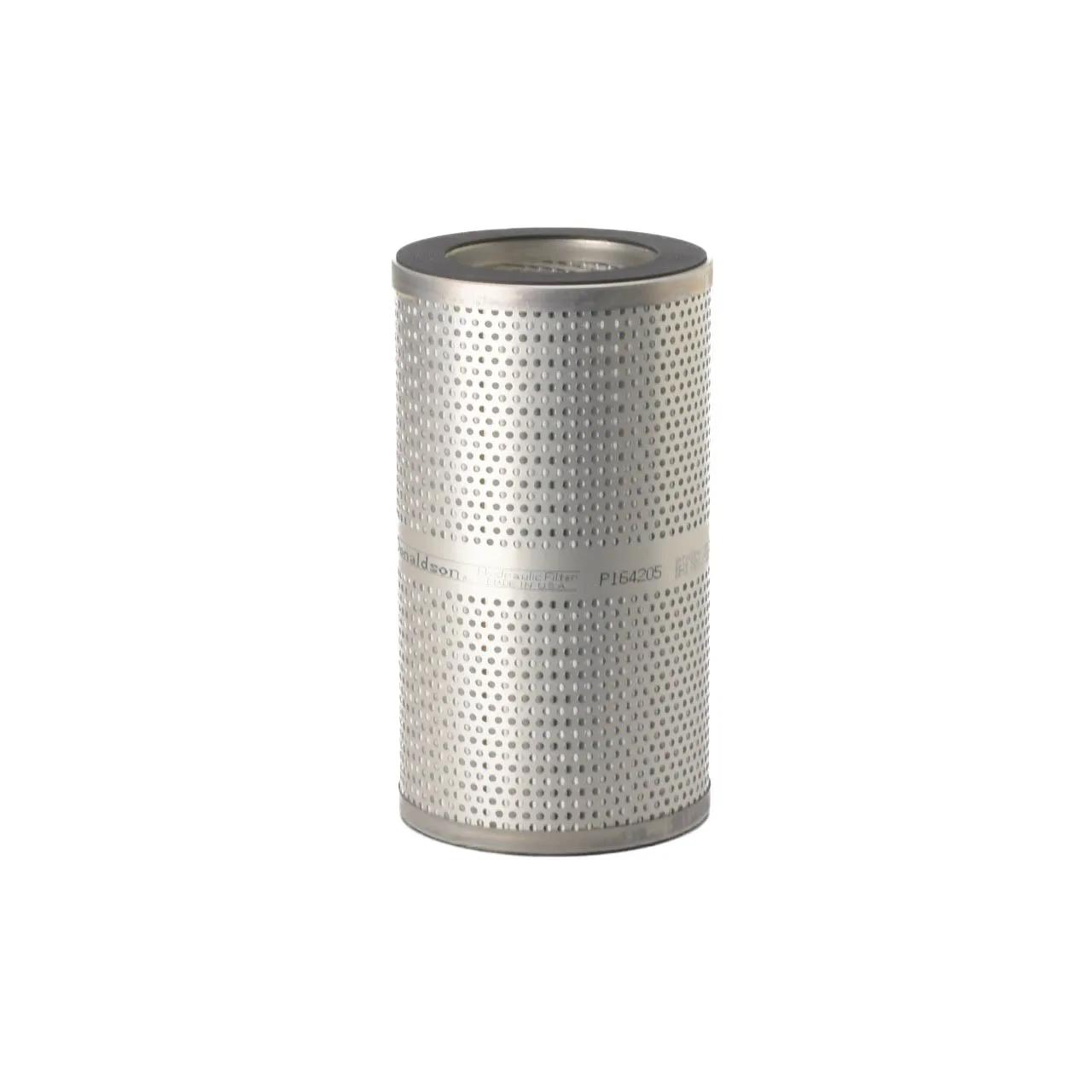

Donaldson Hydraulic Cartridge Filter, Synthetic Media, 9.12 in Length, 5.07 in OD, 3.35 in ID
#DONP164205
Product Overview
Hydraulic Filter, Cartridge, Synthetic Media, 11 micron Beta Efficiency, Collapse Burst Pressure: 149 psi, 3.35 in ID, 5.07 in OD, 9.12 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance hydraulic cartridges utilize Donaldson media technology which undergoes stringent design and testing setting the standard in filtration performance.
- Donaldson media formulations provide superior hydraulic system protection.
- Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
- A variety of Wilfit cartridges which meet and/or exceed OEM specifications.
Specifications
| Inner Diameter | 3.35 in (85.1 mm) |
| Length | 9.12 in |
| Outer Diameter | 5.07 in |
| Beta Efficiency | 13 Micron |
| Collapse Burst Pressure | 149 psi |
| Filtration Rating | 11 micron |
| Fitment | Caterpillar |
| Media Type | Synthetic |
| Type | Cartridge |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| P164205 |
| 1197 |
| 51197 |
| PT48110 |
| PT94 |
| SH56148 |
| H5503 |
| SFH6064 |
| PH64 |
| PL64 |
| CO1709 |
| 664214 |
| 666421 |
| 3042912 |
| 3042917 |
| 6624214 |
| 6664213 |
| 7066400 |
| 16624214 |
| 30429120 |
| 30429127 |
| 70664000 |
| 70666421 |
| AS171 |
| L52764 |
| L59846 |
| 1R0778 |
| 402954 |
| 81400750 |
| 81404865 |
| 1R0720 |
| 1U2094 |
| 2H1560 |
| 2J1360 |
| 2J1550 |
| 2J1560 |
| 2J1660 |
| 2J6135 |
| 3I0591 |
| 3I1338 |
| 3K6727 |
| 3S4621 |
| 4D2954 |
| 4F6064 |
| 4J0806 |
| 4J6068 |
| 4J6164 |
| 4J806 |
| 5H6174 |
| 5J6174 |
| 5J9174 |
| 6J3963 |
| 6J8958 |
| 7S8701 |
| 7SS701 |
| 8S1237 |
| 8S2213 |
| 9W642S |
| S30262A |
| 9W6428 |
| 7255606400 |
| P4J6064 |
| P4J606410 |
| PM4J6064 |
| 350008 |
| FA205H |
| FA905H |
| 1930836 |
| 6686884 |
| 70666429 |
| 73042912 |
| 73135857 |
| 76624214 |
| 79092882 |
| 9576P164205 |
| 639P |
| 4J6064 |
| HX79 |
| TS2135 |
| VL4530 |
| VY2195 |
| WY2195 |
| 25014 |
| AF56 |
| HX1 |
| KFO0232069 |
| D162 |
| MT205 |
| 75658 |
| 103837 |
| 105510 |
| 1499568 |
| L1930836 |
| 8120731791 |
| PL50935 |
| HD64 |
| 688956 |
| 3130945 |
| 810967 |
| 811445 |
| S214CP |
| WGH6098 |
| DN P164205 |
| DN P164205 |
| 00810967 |
| 1662 |
| PT90-10 |
| PT90-MPG |
| LH22044 |
| HY9564 |
