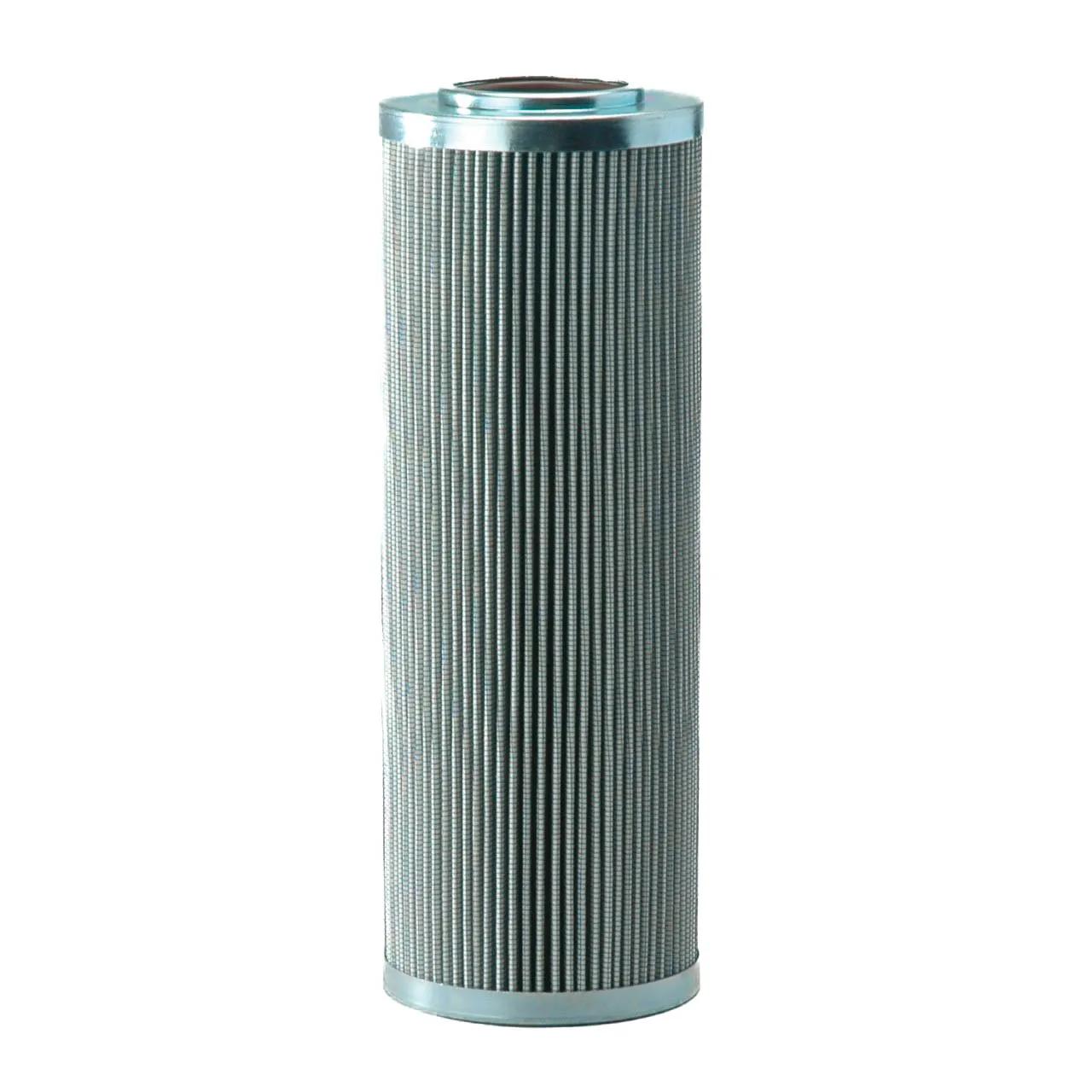

Donaldson Hydraulic Cartridge Filter, Synthetic Media, Viton Seals, 12.97 in Length, 3.63 in OD, 1.9 in ID
#DONP566684
Product Overview
Hydraulic Filter, Cartridge, Synthetic Media, Viton, 12 micron Beta Efficiency, Collapse Burst Pressure: 450 psi, 1.83 in Gasket I.D., 1.89 in ID, 3.63 in OD, 12.97 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance DT hydraulic cartridges utilize Donaldson Synteq media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
- DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime which has a direct impact on your bottom line.
- DT filters offer the best available chemical resistance for hydraulic applications.
- A high dirt holding capacity provides longer filter life for extended filter change intervals, reducing time and expense for servicing equipment.
- Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications
| Bypass Valve | No |
| Gasket ID | 1.83 in |
| Inner Diameter | 1.9 in (48.3 mm) |
| Length | 12-61/64 in |
| Outer Diameter | 3.63 in |
| Overall Length | 5.07 in (128.8 mm) |
| Beta Efficiency | 12 micron |
| Collapse Burst Pressure | 450 psi |
| Filter Media Type | Synteq |
| Material | Viton |
| Media Type | Synthetic |
| Seal Material | Fluorocarbon |
| Type | Cartridge |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| R928031964 |
| 9660LAH10XLA000VSO3000 |
| CH50811 |
| DT0660D14UM |
| R660HBH10A |
| R660HBH10H |
| 50114 |
| DHD660G10B |
| DHD660G10V |
| FC7273F010VS |
| FC7273Q010VS |
| FFKPVL17273A10ABS |
| HF30100 |
| FDHD660G10V |
| 52YT46 |
| 1XPU9 |
| SH75060 |
| 0660D010BN4HCV |
| HP33DNL1412MB |
| HP33DNL1412MV |
| 0800D010BN4HC |
| 0660D010BN |
| 0660D010BN3HC |
| 0660D010BN4HC |
| 0660D010BNHC |
| 2055747 |
| 1250495 |
| 0660D010ON |
| 1251477 |
| 2067520 |
| 2068560 |
| 0660D010BN3HCV |
| 0660D010BN4HCVSO103H |
| 0660D010BNHCV |
| 0660D010ONV |
| 0660D010ONVSO103H |
| LH95394 |
| LH95394V |
| MF0060473 |
| MP4181 |
| PR3203 |
| SE160E10B |
| SE160G10V |
| 660D010N |
| 660D010NV |
| 15201412V |
| V0662V2C10 |
| E0662B2C10 |
| E0662V2C10 |
| ABZFDS035010N1001XVA |
| ABZFDS035010N2101XVA |
| ABZFDS035010N4201XVA |
| ABZFEN0350101XVA |
| DE0662V2C10 |
| BE33DNL1412MV |
| 7889660 |
| 31050177 |
| HC2233FDS13H |
| HC2233FDS13Z |
| HC2233FKS13H |
| HC2233FKS13Z |
| HC2233FUS13H |
| HC2233FUS13Z |
| HC2233FCS13H |
| HC2233FCS13Z |
| HC2233FMS13Z |
| H0660D012EV |
| P141131 |
| 020660D10VG30HCEP |
| 300438 |
| 020660D10VG30HCEV |
| SBF0660DZ10B |
| SBF0660DZ10V |
| HC2233FRS13Z |
| HC2233FRS13H |
| HC2233FHS13H |
| HC2233FHS13Z |
| 0660 D010 BN3HC |
| 02 |
| PT9303-MPG |
| D45B10GV |
