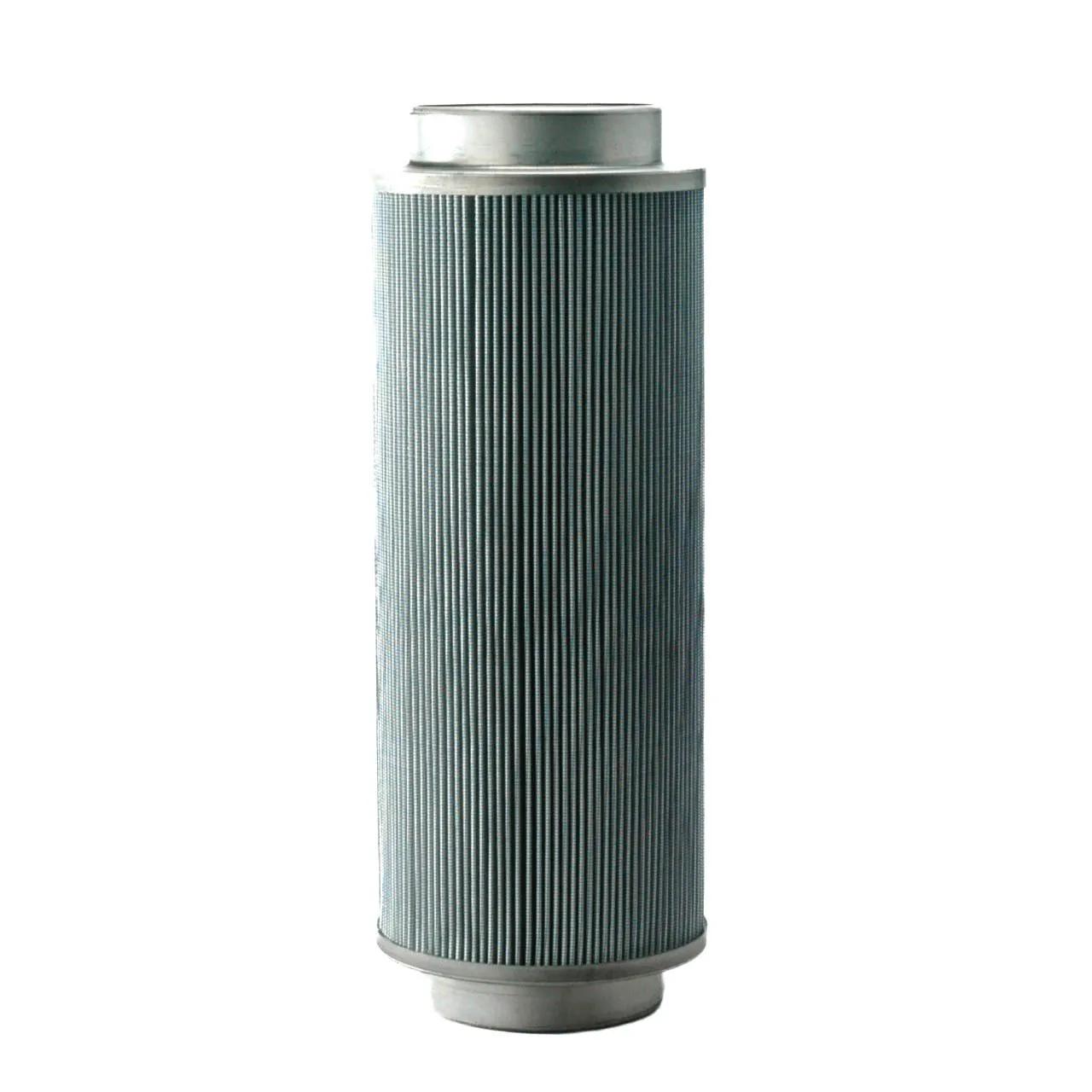

Donaldson Hydraulic Cartridge Filter, Synthetic Media, Viton Seals, 37.8 in Length, 5.94 in OD, 4.11 in ID
#DONP566258
Product Overview
Hydraulic Filter, Cartridge, Synthetic Media, Viton, 25 micron Beta Efficiency, Collapse Burst Pressure: 149 psi, 4.11 in ID, 5.94 in OD, W041, 37.8 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance DT hydraulic cartridges utilize Donaldson Synteq media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
- DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime which has a direct impact on your bottom line.
- DT filters offer the best available chemical resistance for hydraulic applications.
- A high dirt holding capacity provides longer filter life for extended filter change intervals, reducing time and expense for servicing equipment.
- Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications
| Diamètre intérieur | 4,11 po |
| Longueur | 37-13/16 po |
| Diamètre extérieur | 5,94 po |
| Séries | W041 |
| Efficacité Bêta | 25 micron |
| Pression d'écrasement et d'éclatement | 149 psi |
| Material | Élastomère fluorocarboné |
| Media Type | Synthétique |
| Seal Material | Fluorocarbone |
| Type | Cartouche |
| Product Category | Filtre hydraulique |
Interchanges & Equivalent parts:
| P566258 |
| P171046 |
| P171052 |
| DT83103925UM |
| 168310XH20SLS000V |
| 168310XH20XLS000V |
| F831039K25V |
| 1XPR9 |
| A912083 |
| KM83103925V |
| KMP8310A25V39 |
| LH95620V |
| MP3410 |
| HC8310FDT39HX321 |
| HC8310FDT39ZX321 |
| HC8310FMT39H |
| HC8310FMT39HX321 |
| HC8310FMT39ZX321 |
| HC8310FKT39HX321 |
| HC8310FKT39ZX321 |
| 932875Q |
| R831H3925H |
| 39QPMLZ25V |
| 83103925UM |
| 15033925V |
| V0411V8L20 |
| E0411B8L20 |
| E0411V8L20 |
| Y3925LND |
| R928016743 |
| DE0411V8L20 |
| BE8310L3925MV |
| HC8310FDT39H |
| HC8310FDT39Z |
| HC8310FKT39H |
| HC8310FKT39Z |
| HC8310FUT39H |
| HC8310FUT39Z |
| HC8310FCT39H |
| HC8310FCT39Z |
| HC8310FMT39Z |
| DP83250JFV |
| 2831L25V39 |
| 3831DGMV39 |
| SF83103925UMV |
| HC8310FHT39Z |
| HP8310L3925MB |
| HP8310L3925MV |
| 11439D25BN |
| H831039020BN |
| 11439D25BNV |
| HC8310FRT39H |
| HC8310FRT39HX321 |
| HC8310FRT39Z |
| HC8310FHT39H |
| HC8310FHT39HX321 |
| HC8310FHT39ZX321 |
| DP83250JFB |
| 02060847 |
| HC8310FCT39HX321 |
| HC8310FCT39ZX321 |
| PH73903CG |
| PH73903CGV |
| PH73905CGV |
| 7234579 |
| BEQ220275L4025MB |
| BEQ220275L4025MV |
| 7234580 |
| 39QPML-Z25V |
| 39QZ25V |
| R64C25GV |
| PT23248-MPG |
| 2060847 |
