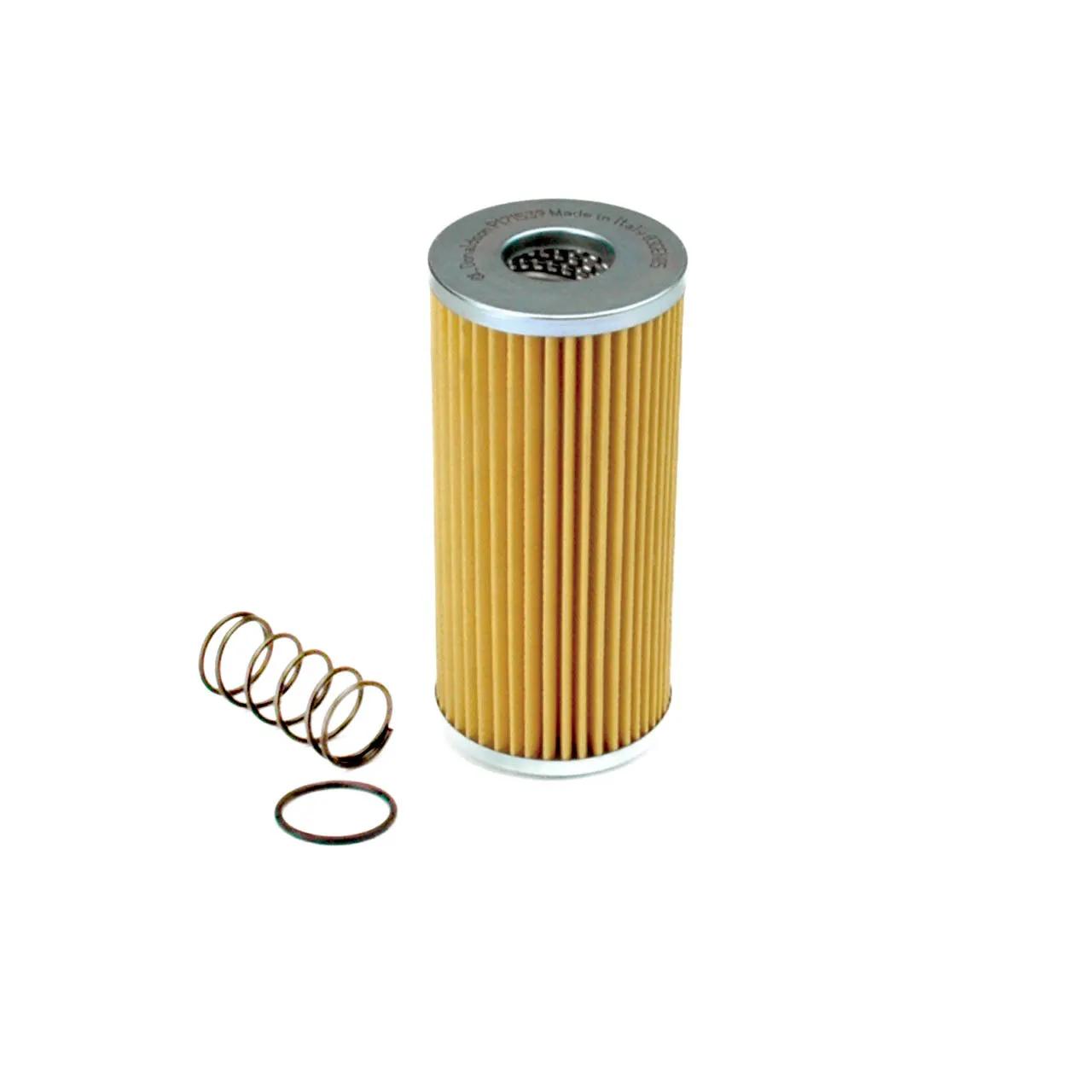

Donaldson Hydraulic Filter Cartridge, 7.95 in Length, 3.74 in OD, 1.61 in ID, Cellulose Media
#DONP171539
Product Overview
Hydraulic Filter, Cartridge, Cellulose Media, 10 micron, 32 micron, 36 micron Beta Efficiency, Bypass Valve Setting: 22 psi (LR), Collapse Burst Pressure: 145 psi, 1.56 in Gasket I.D., 1.83 in Gasket O.D., 1.61 in ID, 3.74 in OD, FK, Temperature Rating: 248 °F, 7.95 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance hydraulic cartridges utilize Donaldson media technology which undergoes stringent design and testing setting the standard in filtration performance.
- Donaldson media formulations provide superior hydraulic system protection.
- Donaldson offers the largest selection of replacement hydraulic cartridges for greater contamination control.
- A variety of Wilfit cartridges which meet and/or exceed OEM specifications.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1,5 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 36 Micron |
| Efficiency Beta 2 | 10 Micron |
| Gasket ID | 1.56 in (39.7 mm) |
| Gasket OD | 1.83 in (46.5 mm) |
| Inner Diameter | 1.61 in (40.9 mm) |
| Length | 7-61/64 in |
| Outer Diameter | 3-47/64 in |
| Series | FIK |
| Length Range | 7 to 7.99 in |
| Style | Cartridge |
| Vehicle Make | F.B.O. |
| Beta Efficiency | 10 micron, 32 micron, 36 micron |
| Bypass Valve Setting | 22 psi (LR) |
| Collapse Burst Pressure | 145 psi |
| Media Type | Cellulose |
| Operating Temperature | -40 to 250°F / -40 to 121°C |
| Standards | ISO 16889 |
| Temperature Rating | 248 °F |
| Type | Cartridge |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| HPMF3L810MB |
| 135600 |
| PT9181 |
| R20C10CB |
| K040605 |
| K040611 |
| K040939 |
| K040957 |
| K051112 |
| K051118 |
| K051125 |
| K051131 |
| K051137 |
| K051231 |
| K051232 |
| K051235 |
| K051245 |
| K051376 |
| K051384 |
| CR1801 |
| RTFE1810 |
| R140C10B |
| HF35209 |
| SH63316 |
| MF1801AP10NB |
| MF1801P10HBP01 |
| MF1801P10NBP01 |
| F18P10A |
| MF1801P10HB |
| MF1801P10NB |
| MF1801P10NBP0101002462 |
| HY18231 |
| HID24831 |
| 3132200 |
| 171539 |
| 1457431604 |
| D10180AN |
| DME4A |
| DRE4A |
| DTE4A |
| Y05779508 |
| HHC10192 |
| HHC10180 |
| HF3127 |
| 140026 |
| 2754374MI |
| 2754374M1 |
| RE50CD1 |
| CR171C10R |
| 1511019 |
| 608624 |
| 13125 |
| CRE050CD1 |
| 28040778 |
| 15502918 |
| 25315151 |
| HF171539 |
| MF1801AP10NBP01 |
| F18P10AP01 |
| MF1801P10NBP0101002462P01 |
| 03132200 |
| 10213402 |
| 62845009 |
| 10210008 |
| R2754375 |
| DN P171539 |
| DN P171539 |
| 2191-P171539 |
| BD7-1539 |
| CR180/1 |
| DONP171539 |
| HF35209FLG |
| K051 |
| LH5181V |
