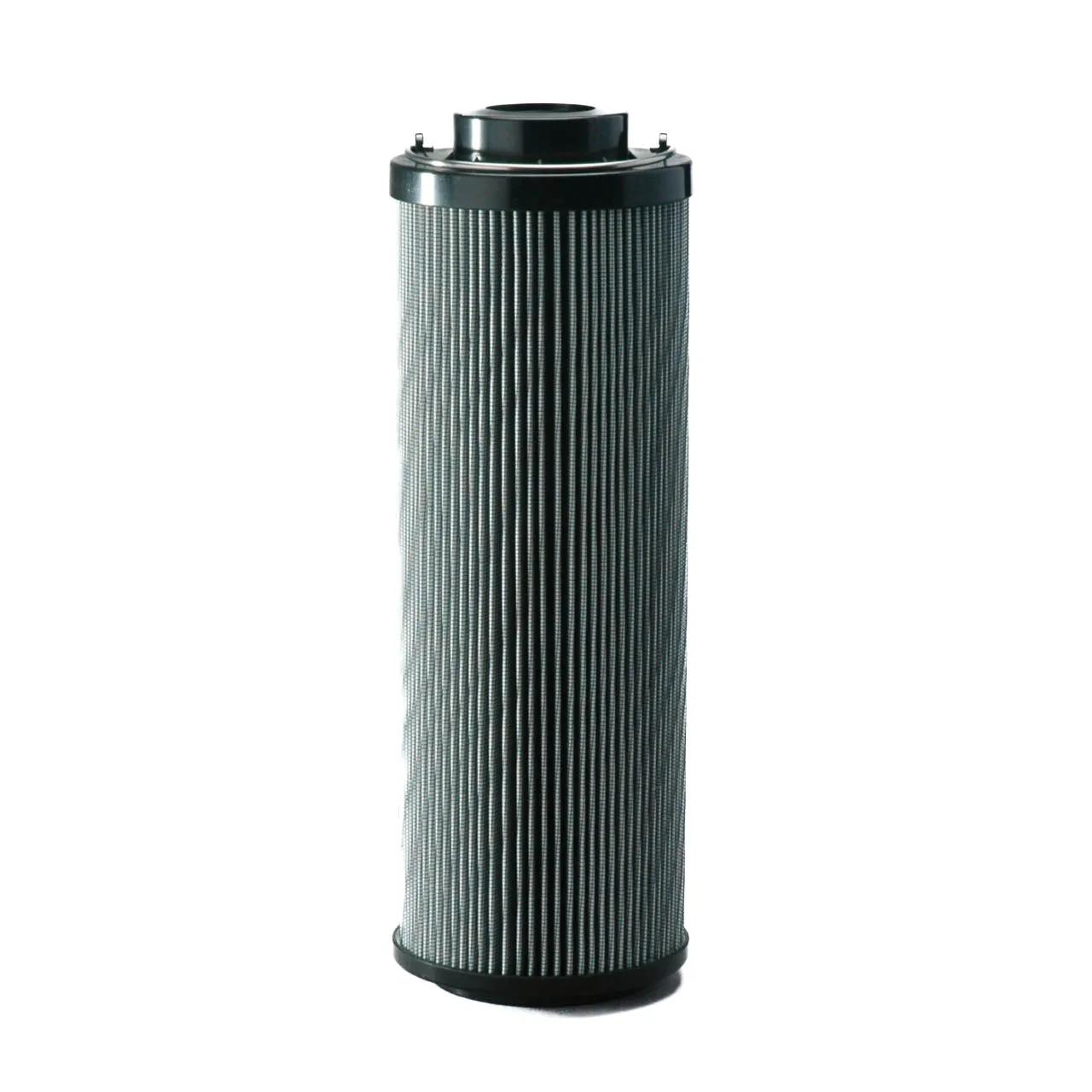

Donaldson Hydraulic Filter, Cartridge, Synthetic Media, 16.17 in Length, 4.49 in OD, 2.7 in ID
#DONP566990
Product Overview
Donaldson DT Hydraulic Cartridge Filter with synthetic Synteq media technology for superior hydraulic system protection, extended filter life, and high chemical resistance.Hydraulic Filter, Cartridge, Synthetic Media, 8 micron Beta Efficiency, Bypass Valve Setting: 51 psi (LR), Collapse Burst Pressure: 290 psi, 2.60 in Gasket I.D., 2.7 in ID, 4.49 in OD, 16.17 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance DT hydraulic cartridges utilize Donaldson Synteq media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
- DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime which has a direct impact on your bottom line.
- DT filters offer the best available chemical resistance for hydraulic applications.
- A high dirt holding capacity provides longer filter life for extended filter change intervals, reducing time and expense for servicing equipment.
- Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications
| Bypass Valve | Yes |
| Gasket ID | 2.60 in |
| Inner Diameter | 2.7 in (68.6 mm) |
| Length | 16.17 in |
| Outer Diameter | 4.49 in |
| Beta Efficiency | 8 micron |
| Bypass Valve Setting | 3 bar (51 psi) |
| Collapse Burst Pressure | 290 psi |
| Media Type | Synthetic |
| Seal Material | Fluorocarbon |
| Type | Cartridge |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| HP66RNL186MB |
| HP66RNL186MV |
| AFKVOL27810 |
| PT9403MPG |
| PT9430MPG |
| DT0850R8UM |
| R0850A06NHA |
| FP102789 |
| RHR850G05B |
| RHR850G05V |
| RHR850G10B |
| RHR850G10V |
| HF6852 |
| 4ZTA9 |
| SH74600 |
| SH74039 |
| 1263028 |
| 0850R010ECON |
| 11077192 |
| 0850R005BN3HC |
| 0850R005BN4HC |
| 0850R005BNHC |
| 0850R010BN3HC |
| 0850R010BNHC |
| 1263032 |
| 0850R005BN3HCV |
| 0850R005BN4HCV |
| 0850R005BNHCV |
| 0850R005ONV |
| 0850R010BN3HCV |
| 020850R6VG30HCSV |
| MF0064536 |
| HD12112 |
| MP66746 |
| MP4727 |
| R52D05GV |
| RHY850165GV3 |
| HC2286FKN15H50 |
| HC2285FDN15H |
| HC2286FDN15H |
| HC2286FDN15H50 |
| HC2286FDN15Z |
| HC2286FDN15Z50 |
| HC2285FMN15H |
| HC2286FMN15H |
| HC2286FMN15H50 |
| HC2286FMN15Z |
| HC2286FMN15Z50 |
| 0850EAR062F1 |
| SBF0850RZ5B |
| SBF0850RZ5V |
| SBF0850RZ05V |
| HY13249 |
| RE200G05B |
| RE200G05V |
| HID12065 |
| 850R005NV |
| 14931806V |
| ER852V2C05 |
| VR852V2C05 |
| DER852V2C05 |
| BE66RNL186MV |
| H850R10N |
| HC2285FKN15H |
| HC2286FKN15H |
| HC2286FKN15Z |
| HC2285FCN15H |
| HC2286FCN15H |
| HC2286FCN15Z |
| HC2286FCN15H50 |
| HC2285FCN15Z |
| HC2285FDN15Z |
| HC2285FKN15Z |
| HC2285FMN15Z |
| HC2285FUN15Z |
| HC2286FCN15Z50 |
| HC2286FKN15Z50 |
| H0850R006EB3V |
| 55200 |
| PT9403-MPG |
