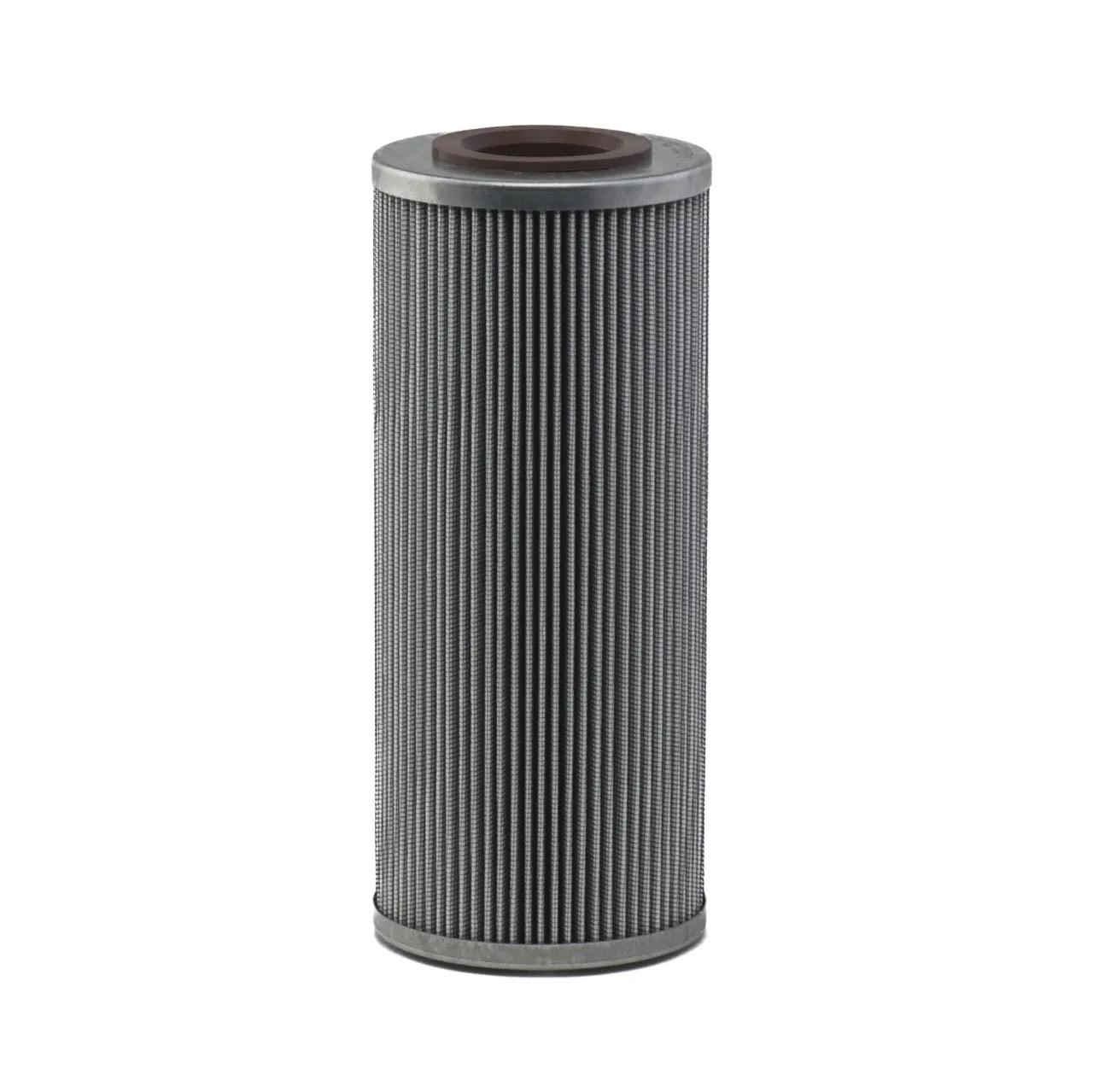

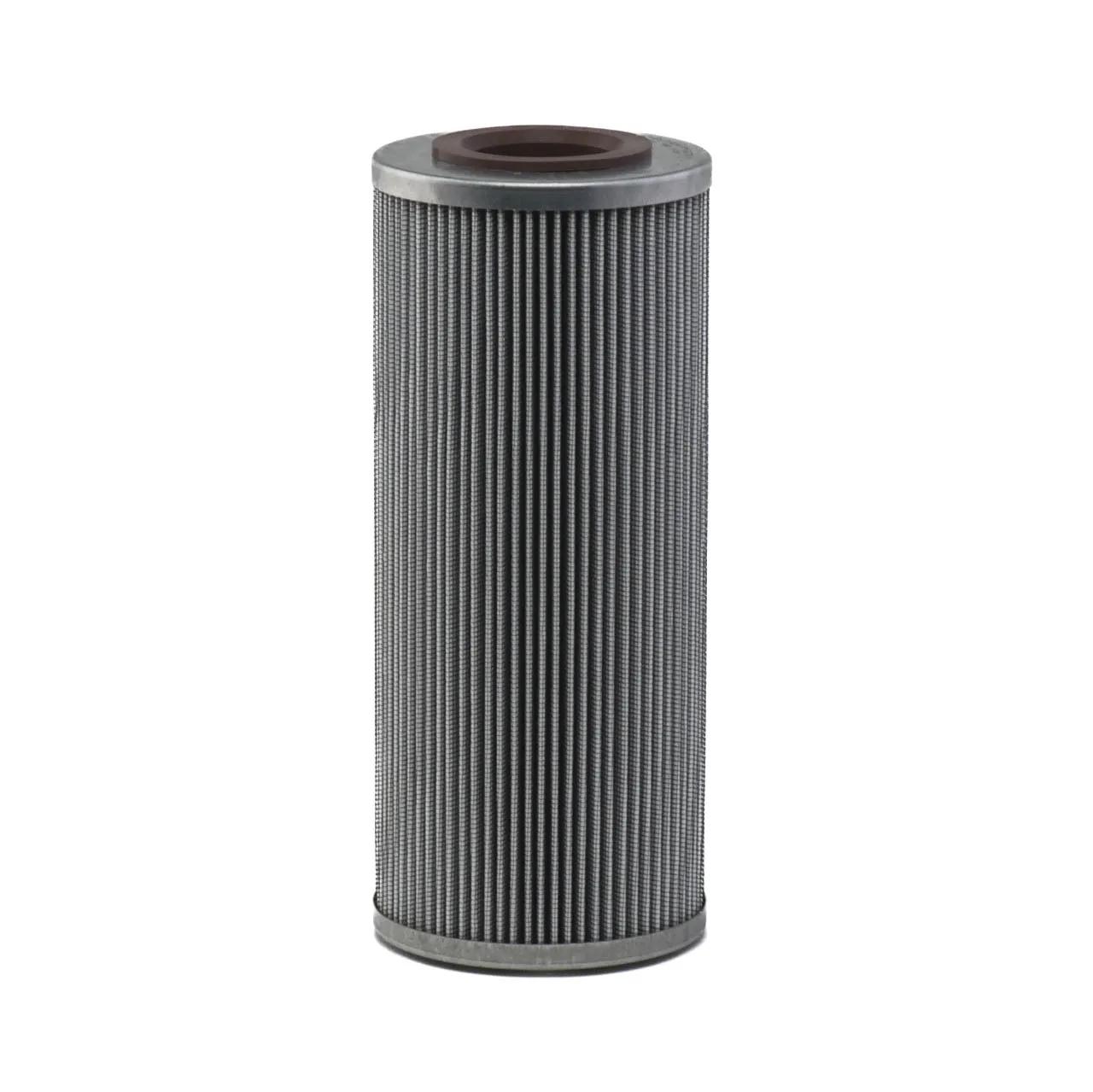

Donaldson Hydraulic Filter, Cartridge, Synthetic Media, Viton Seals, 9.28 in Length, 3.85 in OD, 1.61 in ID
#DONP566270
Product Overview
Donaldson DT Hydraulic Cartridge Filter with Synteq synthetic media and Viton fluorocarbon seals, designed for superior hydraulic system protection and extended filter life.Hydraulic Filter, Cartridge, Synthetic Media, Viton, 5 micron Beta Efficiency, Collapse Burst Pressure: 290 psi, 1.61 in ID, 3.85 in OD, WL15, WL16, W451, 9.28 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance DT hydraulic cartridges utilize Donaldson Synteq media technology which extends filter life, allows a higher initial cleanliness, and provides superior hydraulic system protection.
- DT hydraulic filters help protect equipment, reduce maintenance cost and increase equipment uptime which has a direct impact on your bottom line.
- DT filters offer the best available chemical resistance for hydraulic applications.
- A high dirt holding capacity provides longer filter life for extended filter change intervals, reducing time and expense for servicing equipment.
- Fluorocarbon seals are standard on all Donaldson DT filters.
Specifications
| Inner Diameter | 1.61 in |
| Length | 9-1/8 in |
| Outer Diameter | 3.85 in |
| Series | WL15. WL16. W451 |
| Vehicle Make | Schroeder |
| Beta Efficiency | 5 micron |
| Collapse Burst Pressure | 290 psi |
| Material | Viton |
| Media Type | Synthetic |
| Seal Material | Viton |
| Type | Cartridge |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| HPKL93MB |
| HPKL93MV |
| P566270 |
| 7840 |
| 57840 |
| AFCHF493 |
| DTHF495UM |
| 1HF41H3SLA000V |
| RKH0903A |
| RF4H0910H |
| RKH0903H |
| 14070903V |
| D650G03A |
| FD650G03AV |
| 1XPJ2 |
| 52YR80 |
| 50309D03BN |
| 2071871 |
| 2077029 |
| 50309D03BNV |
| 50309D03BNVSO103H |
| HK003BN3V |
| HK003BN4HCV |
| HK003BNV |
| HK003ONV |
| LH95281V |
| MP2094 |
| HC9720FDP9Z |
| HF4L3VQ |
| 932668 |
| 932668Q |
| HF41L3VQ |
| RF4H0903H |
| 9700EAL032F1 |
| KREZ5 |
| KS1V |
| KZ3 |
| SBFHF4Z3B |
| RTE48G03B |
| 970093UM |
| 970093UMV |
| 737829 |
| V4051V3C03 |
| V4051V3V03 |
| E4051B3C03 |
| E4051V3C03 |
| 1HF41H3SLA000P |
| BEKL93MV |
| 1453648 |
| 1137719 |
| HC9700FDP9H |
| HC9700FDP9Z |
| HC9700FKP9H |
| HC9700FKP9Z |
| HC9700FUP9H |
| HC9700FUP9Z |
| HC9700FCP9H |
| HC9700FCP9Z |
| HC9700FMP9Z |
| HC9720FCP9Z |
| HC9720FKP9Z |
| HC9720FMP9Z |
| 10117 |
| 10116 |
| 2970L03V09 |
| 3970GGCV09 |
| 818ACC03CV |
| 818AGC03CV |
| HC9700FRP9Z |
| HC9720FRP9Z |
| HC9700FHP9Z |
| HC9720FHP9Z |
| 970316191 |
| 970316191C |
| D95A06GWAV |
| MF0575937 |
| 02060528 |
| 84840 |
| DONP174622 |
