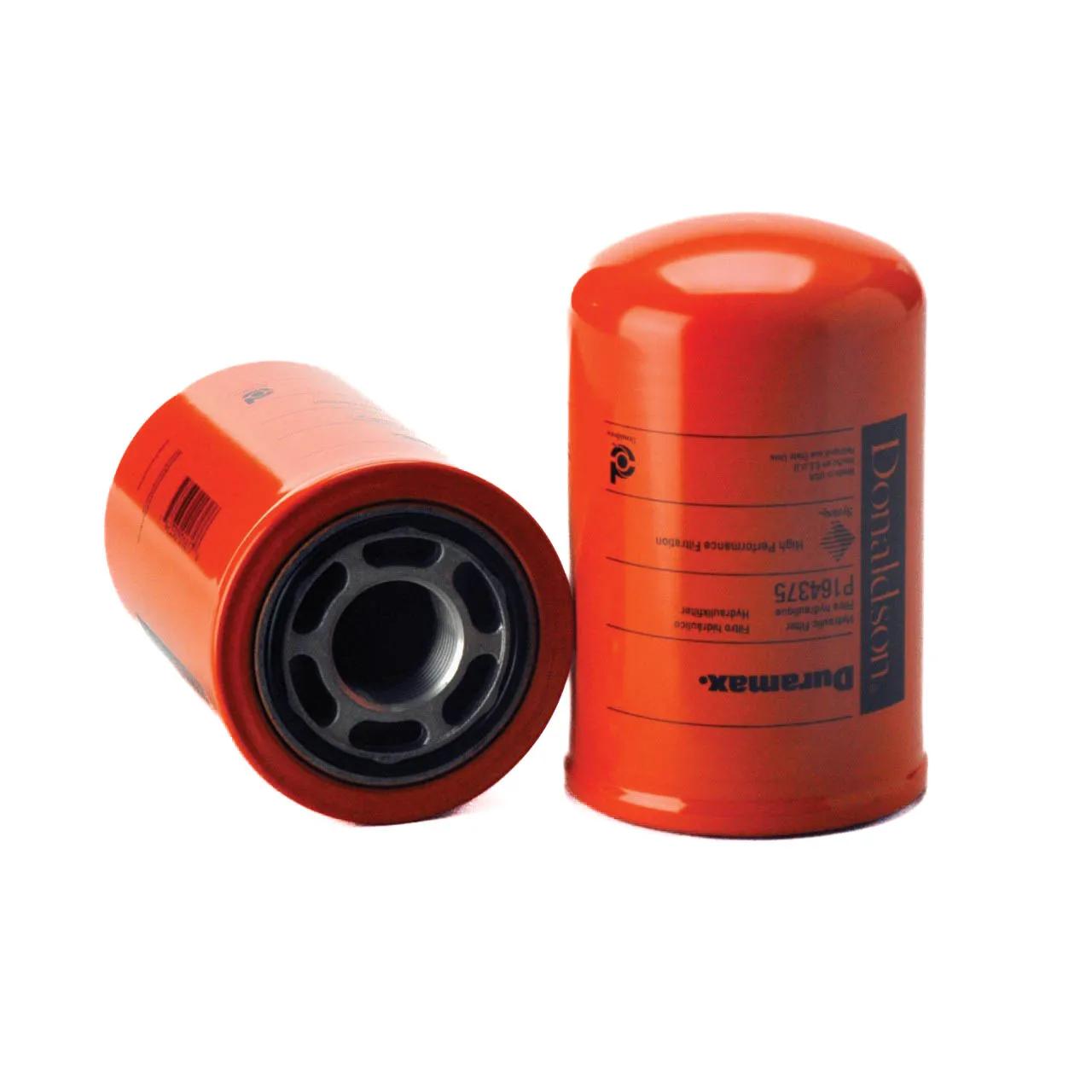

Donaldson Hydraulic Filter, Spin-On, Synteq XP Media, 5.97 in Length, 1 3/8-12 UN Thread, 3.82 in OD
#DONP164375
Product Overview
Manufactured to meet or exceed O.E.M. specifications in function, form, and fit. Designed for superior contamination control and reliable performance in hydraulic systems.Hydraulic Filter, Synteq XP Media, Filter Rating: 4 micron, 2.48 in Gasket I.D., 2.76 in Gasket O.D., 3.82 in OD, Standards: ISO 16889, Spin-On, 1-3/8-12 UN Thread, For CLARK 6630977, 5.97 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Application | CLARK 6630977 |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 11 Micron |
| Efficiency Beta 2 | 4 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 5.97 in |
| Outer Diameter | 3.82 in |
| Series | HMK04/24 |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
| Filter Rating | 4 Micron |
| Thread Size | 1 3/8-12 UN |
| Media Type | Synteq XP |
| Standards | ISO 16889 |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT748 |
| BT8840MPG |
| BT8846 |
| BT8464 |
| 85455 |
| K045802 |
| LFH4959 |
| J8630375 |
| K041620 |
| K045745 |
| K045792 |

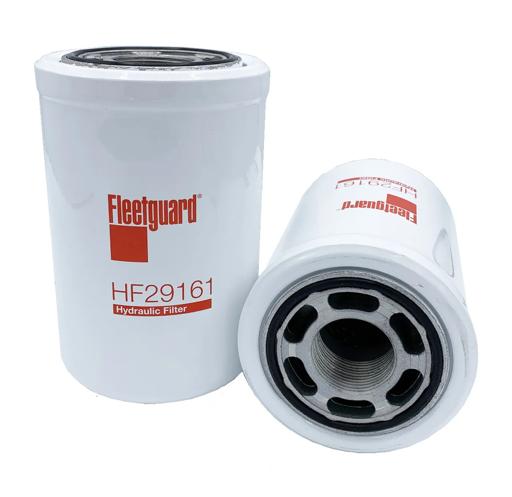

| HF29161 |

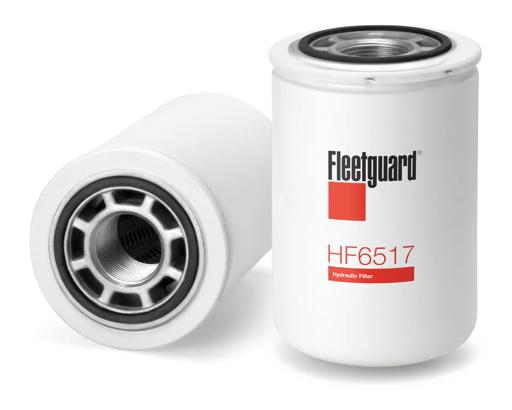

| HF6517 |
| HF6552 |
| HF6560 |
| HF6562 |
| HFR86517 |
| HFR86552 |
| CG46CC16 |
| A411G15 |
| 2304111W |
| 2304112W |
| P6881 |
| HF717 |
| HY413W |
| H20WD |
| SH66375 |
| SH66542 |
| SH66921 |
| L455 |
| MF0575528 |
| WH9452 |
| 6750459280 |
| A126F4B |
| 1455 |
| DH1975 |
| H35235 |
| SBF1643816Z10 |
| P763694 |
| SPH12506 |
| SPH12511 |
| PSH616 |
| 1455NAPA |
| 51455 |
| ZME22 |
| 2088455 |
| 90406MA20P |
| HC9910 |
| 933429 |
| 944022Q |
| 944032Q |
| EM351B1R20 |
| EM351B1R10 |
| ZME10 |
| ZME16 |
| ZME16P |
| 532370D1 |
| 700721747 |
| 92455 |
| 5540903800 |
| LG506582 |
| 6417 |
| 6630977 |
| 6661248 |
| AN203010 |
| 122562 |
| 1272051X1 |
| D122562 |
| 87707948 |
| 3800597 |
| 1446691 |
| 1456691 |
| 3I0609 |
| 2786616 |
| M6661248 |
| 4118911 |
| 4418911 |
| KCY069A |
| 159074 |
| 375995 |
| 375996 |
| 4700373675 |
| 373675 |
| 64133065 |
| 927007036 |
| 82003166 |
| 9576P164375 |
| 3R07010 |
| P472281 |
| 1201887 |
| M113100202 |
| 3171169 |
| 35706161200 |
| 58272081 |
| 1272051C1 |
| 2811255 |
| 32909000 |
| RE39596 |
| 95981 |
| LVA10419 |
| RE69054 |
| 848100086 |
| 3221044000 |
| 21983 |
| MDH8033 |
| 112419 |
| 745878 |
| 4232923M1 |
| LA322104400 |
| 48131202 |
| 84237745 |
| 920019190 |
| 51447 |
