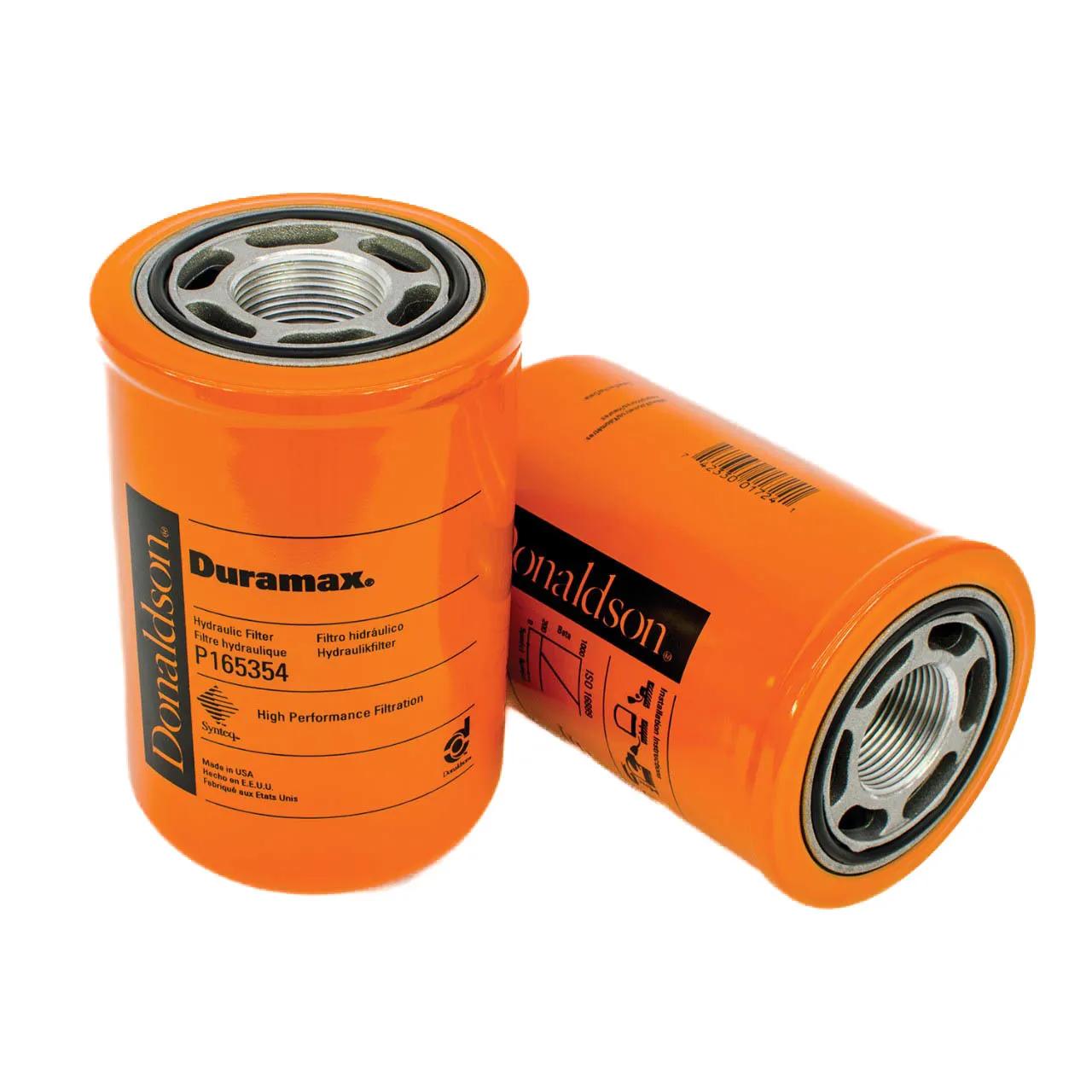

Donaldson Hydraulic Filter, Spin-On, Synteq XP Media, 5.97 in Length, 3.82 in Outer Diameter, 1 3/8-12 UN Thread
#DONP165354
Product Overview
Hydraulic Filter, Synteq XP Media, Filter Rating: 4 micron, 2.48 in Gasket I.D., 2.76 in Gasket O.D., 3.82 in OD, Standards: ISO 16889, Spin-On, 1-3/8-12 UN Thread, 5.97 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Application | Hydrostatic charge side filtration, pilot circuits, power shift transmissions, kidney loop circuits |
| Efficiency Test Std | ISO 16889 |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 5.97 in |
| Outer Diameter | 3.82 in |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
| Filter Rating | 4 Micron |
| Filter Type | Hydraulic |
| Thread Size | 1 3/8-12 UN |
| Media Type | Synteq XP |
| Pressure Rating | Medium pressure |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT8842MPG |
| 85457 |
| K045747 |
| K045791 |
| K045801 |
| CG46CC5 |
| A411G06 |
| HF28892 |
| HF6550 |
| HFR86550 |
| P6880 |
| GP761H |
| HF859 |
| SH66354 |
| L457 |
| LFH4436 |
| LFP2546 |
| LP2546 |
| WH9453 |
| 1457 |
| 944030Q |
| SBF1653546Z5 |
| SPH12532 |
| 51457 |
| 551457 |
| ZME05P |
| ZME5 |
| 1R61709 |
| 920788 |
| 92457 |
| 221669 |
| 222759A1 |
| 22759A1 |
| 1261815 |
| 3I1909 |
| 5001784 |
| KCY068A |
| TST006600118 |
| 149874 |
| 149874A |
| 6201041064 |
| 3576P165354 |
| 9576P165354 |
| 9576P165454 |
| E8NN6A692AA |
| L99440 |
| 58118000 |
| 7025028 |
| 7041595 |
| 20452 |
| 12KP854 |
| 207102 |
| 138398A |
| 708333 |
| V006600025 |
| 664917 |
| 1104146 |
| 751310 |
| 296257496 |
| HF165354 |
| WGH6550 |
| FIL1457 |
| DN P165354 |
| DN P165354 |
| 020452 |
| 08333 |
| 1446691 |
| 2191-P165354 |
| 75-1310 |
| BLL-2546 |
| BT8842-MPG |
| DONP165354 |
| HF6550FLG |
| HLC1099783 |
| KCY |
