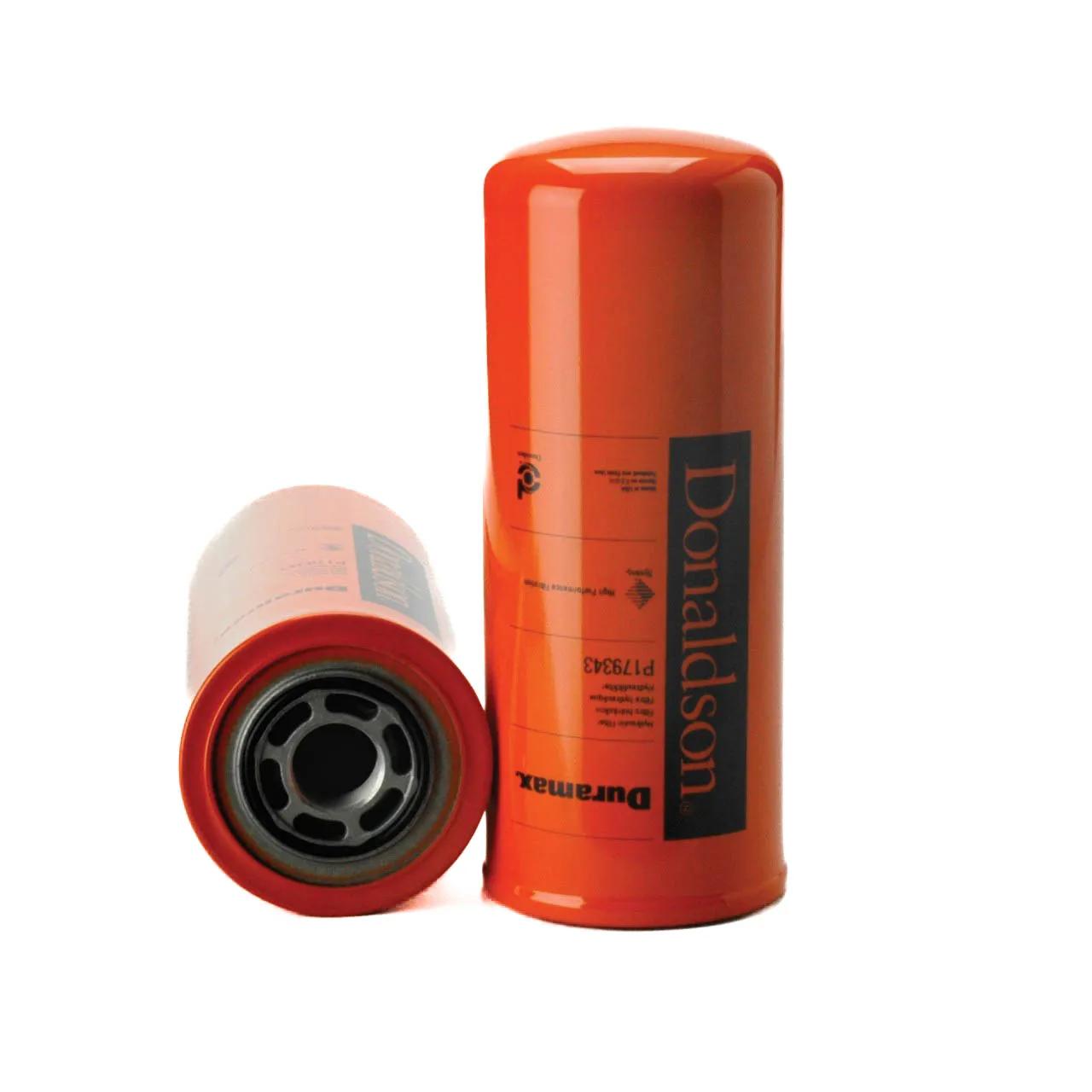

Donaldson Hydraulic Filter, Spin-On, Synthetic Media, 11.63 in Length, 1 3/8-12 UN Thread, 4.77 in OD
#DONP179343
Product Overview
Hydraulic Filter, Synthetic Media, Filter Rating: 11 micron, 2.48 in Gasket I.D., 2.76 in Gasket O.D., 4.76 in OD, Spin-On, 1-3/8-12 UN Thread, 11.63 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 11-5/8 in |
| Outer Diameter | 4.77 in |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
| Filter Rating | 11 micron |
| Thread Size | 1 3/8-12 UN |
| Media Type | Synthetic |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT8432MPG |

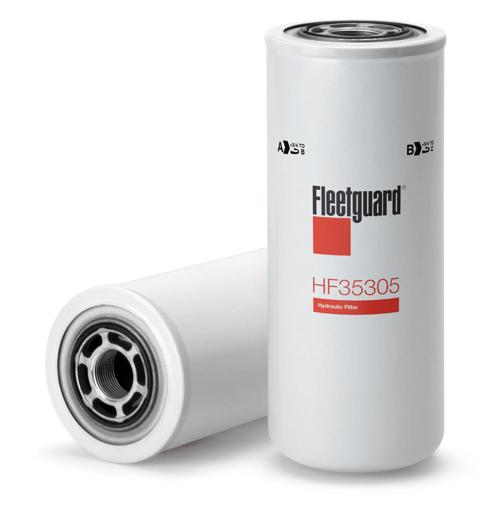

| HF35305 |
| P8464 |
| HY363W |
| H304W |
| SH66143 |
| WH1263 |
| SPH12568 |
| SPH12538 |
| EPO21NFCWBW |
| 551863 |
| 1261818 |
| 534045D1 |
| 25435A1 |
| 84285044 |
| 47131178 |
| 418237A1 |
| 431588A1 |
| 86991559 |
| 3788331 |
| 12691818 |
| 6E6408 |
| 48142232 |
| 48139857 |
| 435141A1 |
| 84226263 |
| 86018758 |
| 86989778 |
| NP86018758 |
| CPK5547 |
| HF179343 |
| 11809003 |
| 51863 |
| 2191-P179343 |
| 4656506 |
| 6770759130 |
| 6E-6408 |
| 85863 |
| DONP179343 |
| HF35305FLG |
| HLC1131136 |
| BT8432-MPG |
| DN P179343 |
| DN P179343 |
| 15709342 |
