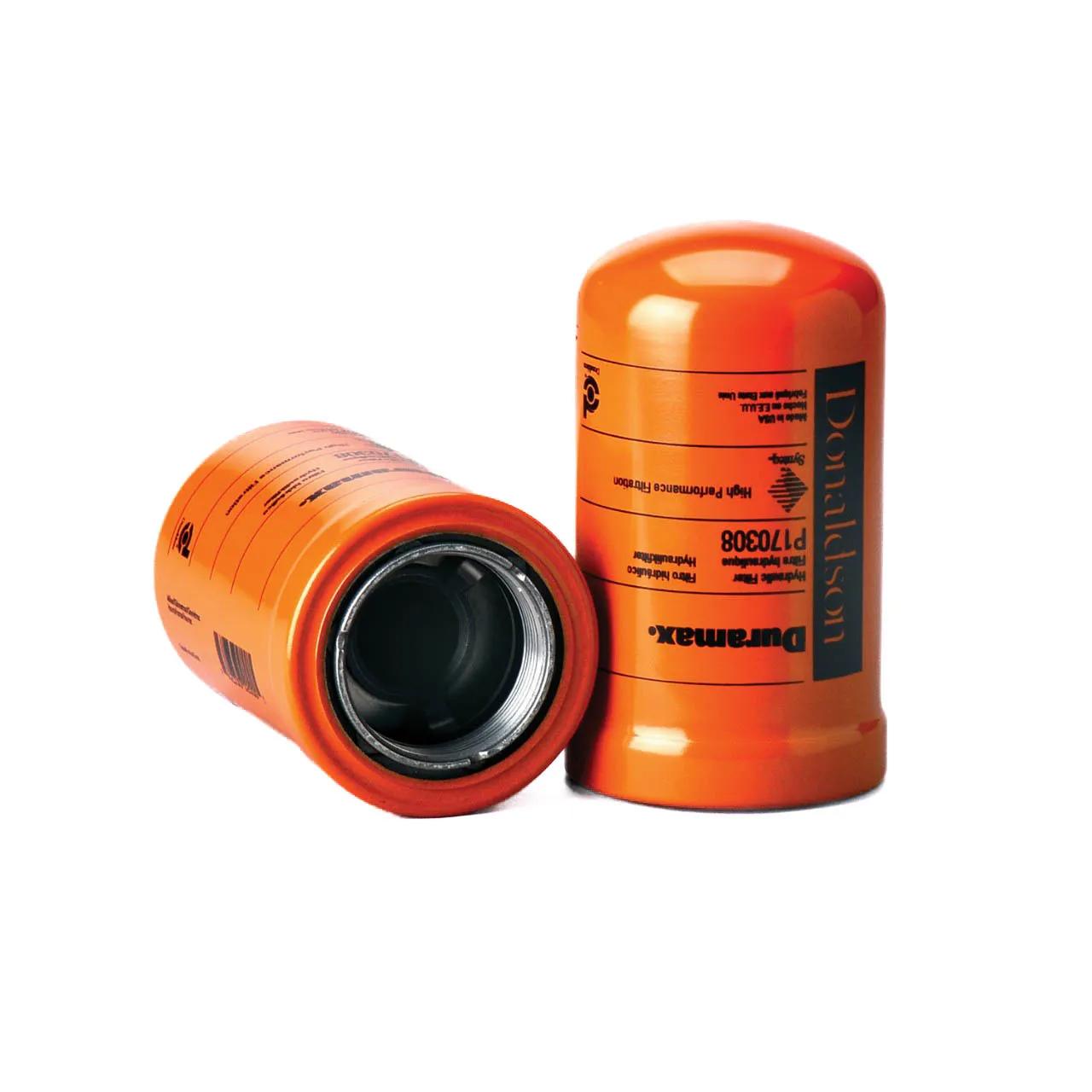

Donaldson Hydraulic Filter, Spin-On, Synthetic Media, 5.52 in Length, 3.13 in Outer Diameter, 2-12 UN Thread
#DONP170308
Product Overview
Hydraulic Filter, Synthetic Media, Filter Rating: 6 micron, 1.85 in Gasket I.D., 3.13 in Gasket O.D., 3.13 in OD, Spin-On, 2-12 UN Thread, 5.52 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Diameter Range | 3 to 3.99 in |
| Gasket ID | 1.85 in (47 mm) |
| Gasket OD | 3.13 in (79.6 mm) |
| Length | 5-17/32 in |
| Outer Diameter | 3.13 in |
| Series | HMK03 |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 2-12 UN |
| Filter Rating | 6 Micron |
| Thread Size | 2-12 UN |
| Media Type | Synthetic |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT9393MPG |
| 84724 |
| HF35355 |
| SH66021 |
| LFH9393 |
| WH723 |
| 7724 |
| 944001Q |
| 944003Q |
| SPH12537 |
| EM251B1R05 |
| 557724 |
| 57724 |
| 3I1765 |
| 1261813 |
| 3I1767 |
| 149939 |
| 149939A |
| 56507781 |
| 56679000 |
| 609135003 |
| HF170308 |
| 1588987 |
| DN P170308 |
| DN P170308 |
| 2191-P170308 |
| BD7-0308 |
| BT9393-MPG |
| DONP170308 |
| HF35355FLG |
