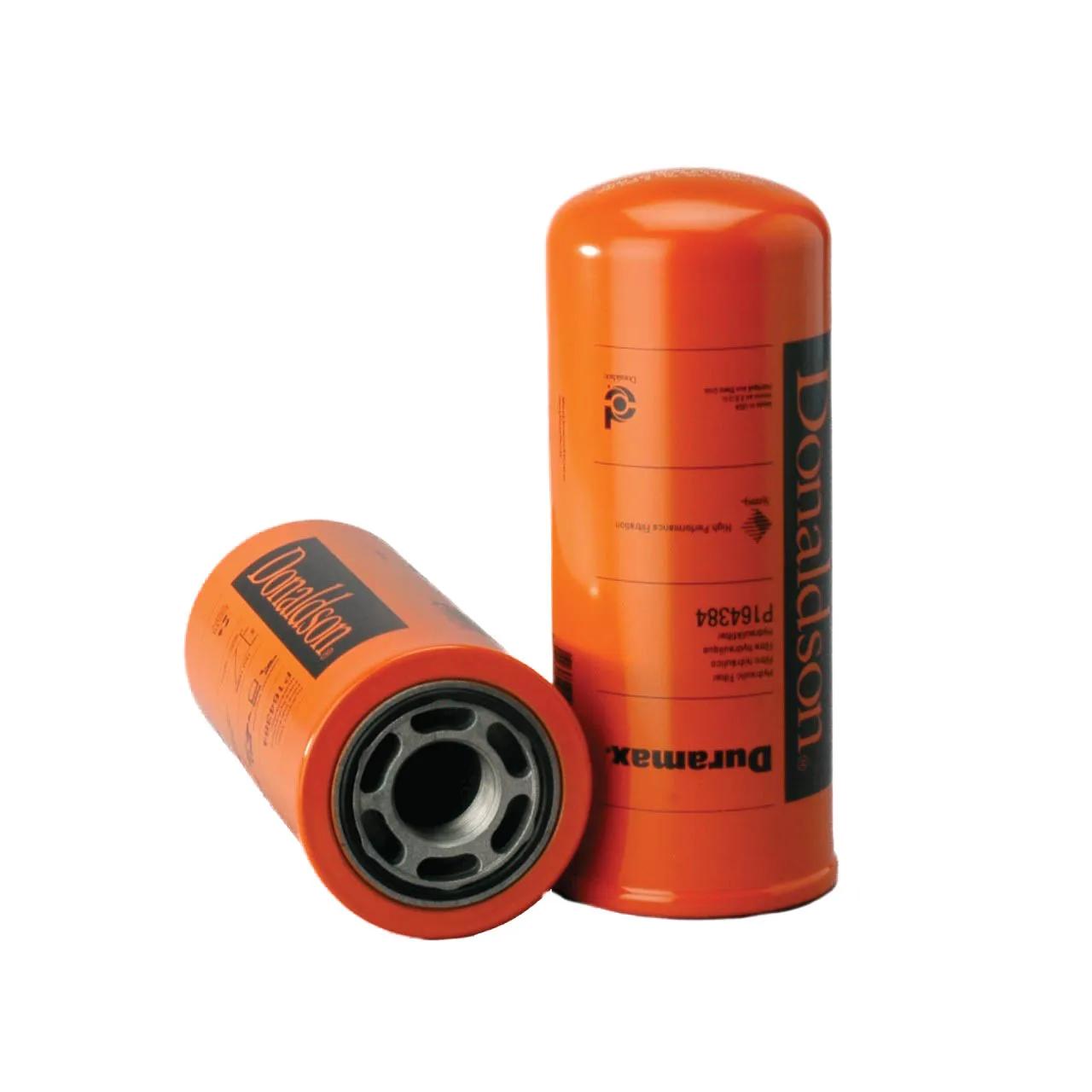

Donaldson Hydraulic Filter, Spin-On, Synthetic Media, Length 9.44 in, Thread 1 3/8-12 UN, OD 3.82 in
#DONP164384
Product Overview
Manufactured to meet or exceed O.E.M. specifications in function, form, and fit. Designed for superior contamination control in hydraulic systems.Hydraulic Filter, Synthetic Media, Filter Rating: 7 micron, 2.48 in Gasket I.D., 2.76 in Gasket O.D., 3.82 in OD, Standards: ISO 16889, Spin-On, 1-3/8-12 UN Thread, 9.44 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Efficiency Test Std | ISO 16889 |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 9.44 in |
| Outer Diameter | 3.82 in |
| Series | HMK04/24 |
| Style | Spin-On |
| Thread Size | 1 3/8-12 UN |
| Filter Rating | 7 Micron |
| Thread Size | 1 3/8-12 UN |
| Media Type | Synthetic |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT8863 |
| HP409L925MB |
| 8973036933 |
| 9618257 |
| BT744 |
| BT758 |
| BT8850MPG |
| BT8862 |
| BT8326MPG |
| 85481 |
| J8630384 |
| K045744 |
| K045798 |
| K045808 |
| CSD07000P25NRA |
| CG49CC22 |
| A413C15 |
| A413G25 |

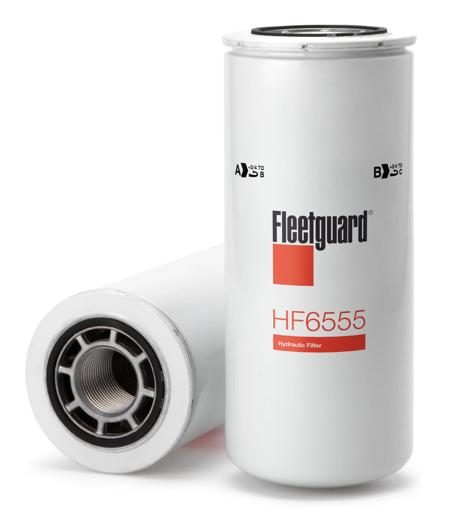

| HF6555 |

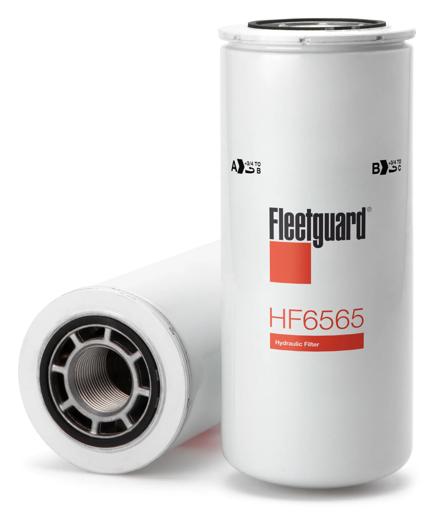

| HF6565 |
| HF6567 |
| HF28992 |
| HFR86557 |
| 84095 |
| 85483 |
| 85495 |
| HFR828992 |
| HFR86555 |
| HFR86565 |
| P6871 |
| P6885 |
| P6886 |
| P6889 |
| P6890 |
| SH56605 |
| SH56617 |
| WH980 |
| HF720 |
| HF989 |
| H18W10 |
| 90410MA20BN |
| KL345007 |
| KL395007 |
| KL615010 |
| L252 |
| LFH4910 |
| LFH4962 |
| LFH4972 |
| LFH5079G |
| 1481 |
| 1483 |
| 1495 |
| 7095 |
| 933431 |
| 944012Q |
| 944025Q |
| H56062 |
| 6948590 |
| H56058 |
| H56060 |
| SPH9647 |
| SPH12503 |
| SPH12505 |
| SPH12514 |
| 51495 |
| SBF163324E25 |
| SBF1643849Z25 |
| 483 |
| 51481 |
| 51483 |
| 57095 |
| ZME22LP |
| ME10L |
| ME10LP |
| ZME20L |
| PF2152 |
| TRA8320047 |
| 92483 |
| 92485 |
| 92495 |
| 119644802B |
| 2209000369 |
| 308105163 |
| 1604694491 |
| 1604694401 |
| 1604694490 |
| E5116 |
| 91095 |
| 92481 |
| 92494 |
| 61101 |
| 10061101 |
| 811583800 |
| 841152800 |
| 842808800 |
| 6598903 |
| 33016 |
| 60033016 |
| 0060033016J |
| 633016 |
| AH114973 |
| RE349588 |
| 47917358 |
| 1272063X1 |
| 1346028C1 |
| 1971727C1 |
| 3515328M92 |
| 431587A1 |
| NP84074777 |
| 84239751 |
| 89909 |
| 94236 |
| D89909 |
| D94236 |
| N7332 |
| N9025 |
| 3I2046 |
| 870895 |
| 1353155 |
| 3I0547 |
| 3I0 |
| 2NVG3 |
| P171298 |
