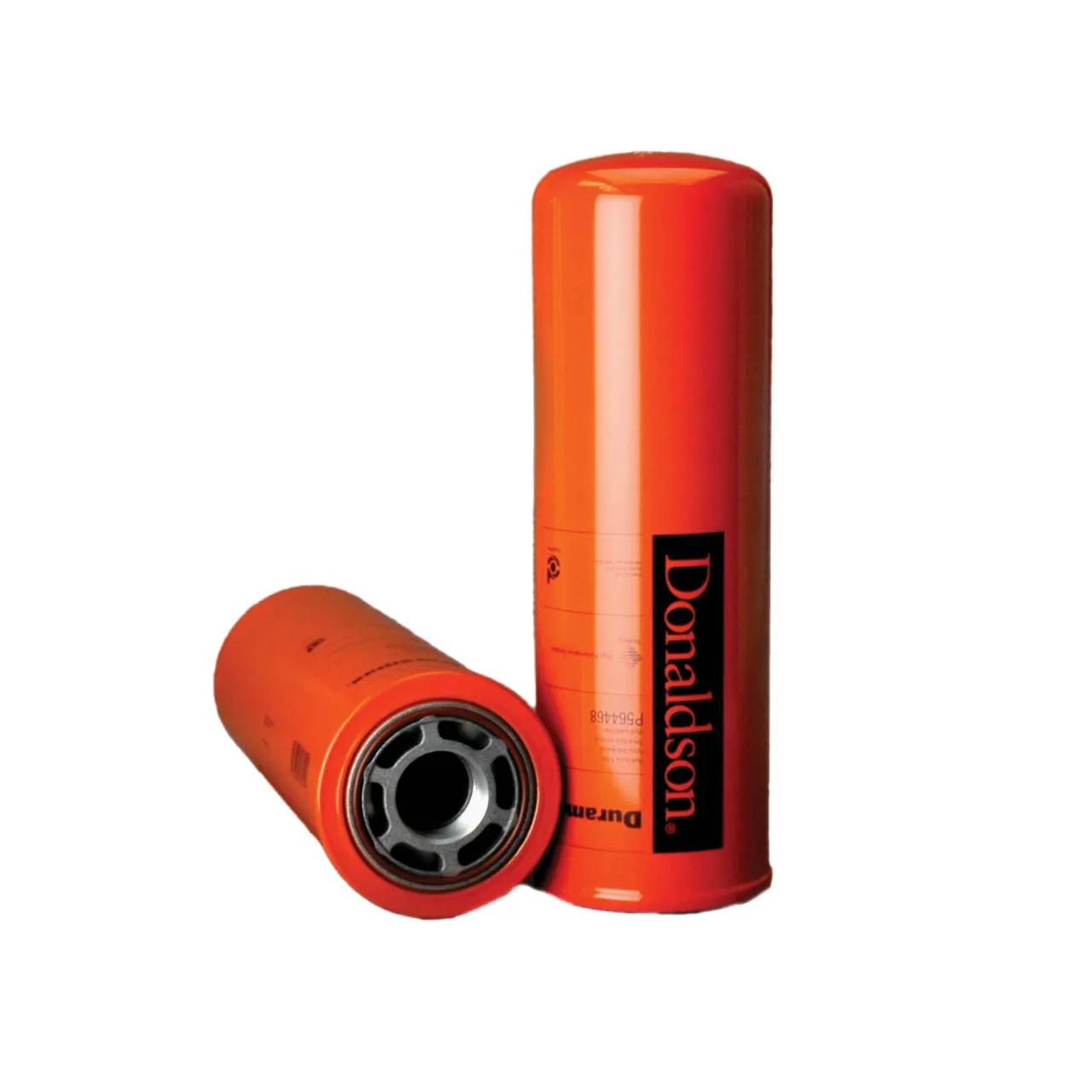

Donaldson Hydraulic Spin-On Filter, 14.24 in Length, 1 3/4-12 UN Thread, 4.7 in Outer Diameter, Synthetic Media
#DONP564468
Product Overview
Hydraulic Filter, Synthetic Media, Yes Bypass Valve, Filter Rating: 4 micron, 3.11 in Gasket I.D., 3.39 in Gasket O.D., 4.7 in OD, Spin-On, 1-3/4-12 UN Thread, 14.24 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Application | Hydrostatic charge side filtration, pilot circuits, power shift transmissions, kidney loop circuits |
| Bypass Valve | Yes |
| Efficiency Beta 1000 | 4 Micron |
| Gasket ID | 3.11 in (79 mm) |
| Gasket OD | 3.39 in (86.2 mm) |
| Length | 14.24 in |
| Outer Diameter | 4.7 in |
| Series | HMK05/25 |
| Style | Spin-On |
| Thread Size | 1 3/4-12 UN |
| Filter Rating | 4 Micron |
| Thread Size | 1 3/4-12 UN |
| Media Type | Synthetic |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| EM502B4R03 |
| DN P564468 |
| DN P564468 |
| 2191-P564468 |
| DONP564468 |
| 51729 |
| A20A03GV |
