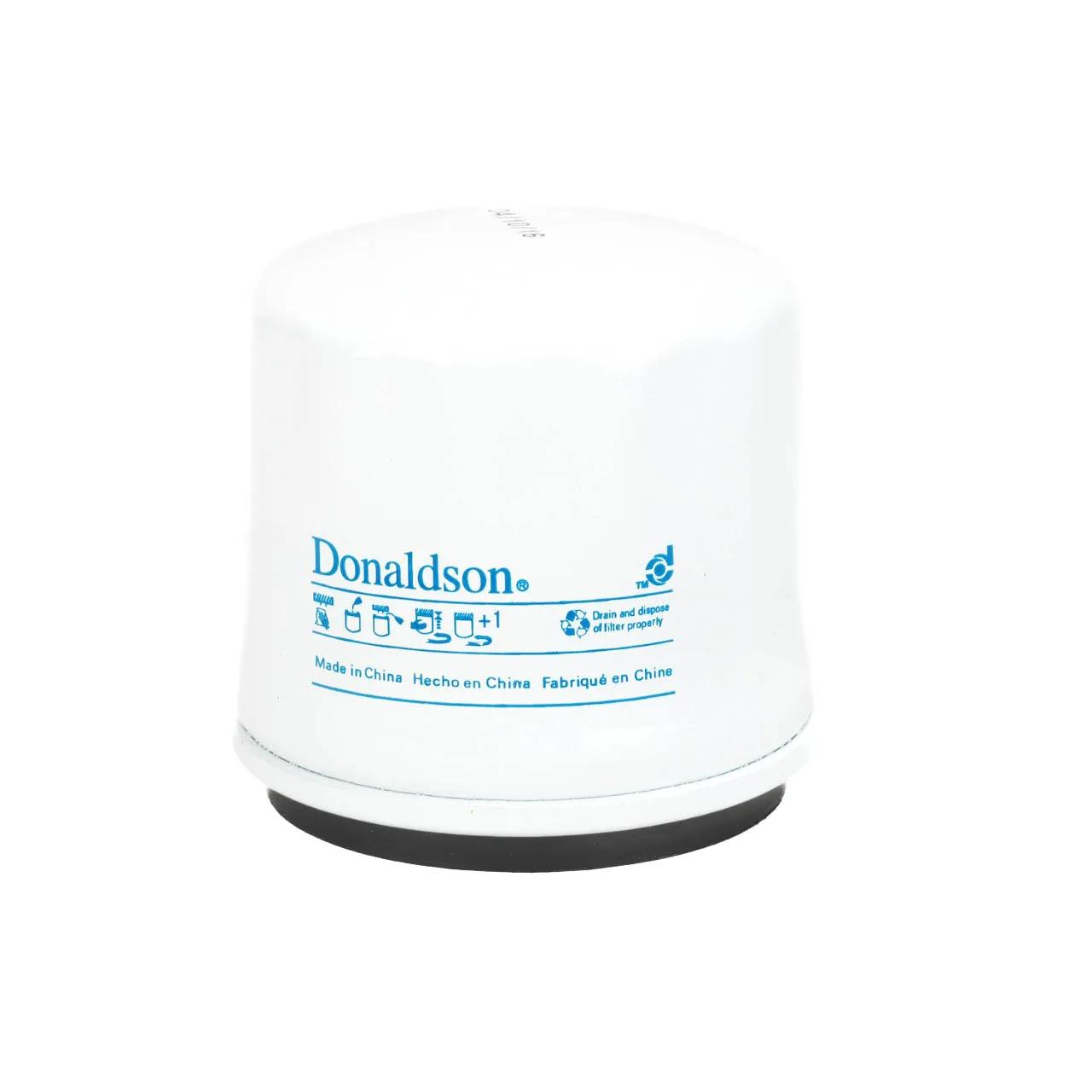

Donaldson Hydraulic Spin-On Filter, 2.89 in Outer Diameter, 3 in Length
#DONP550606
Product Overview
Hydraulic Filter, Yes Bypass Valve, Filter Rating: 9 micron, 2.42 in Gasket I.D., 2.75 in Gasket O.D., 2.89 in OD, 9 psi Low Pressure, Spin-On, 3/4-20 UN Thread, For GMC 29537628, 3 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance hydraulic spin-on filters utilize Donaldson media technology which undergoes stringent design and testing setting the standard in filtration performance.
- Donaldson media formulations provide superior hydraulic system protection.
- Donaldson offers the largest selection of replacement hydraulic spin-on filters for greater contamination control.
- A variety of filters which meet and/or exceed OEM specifications.
Specifications
| Application | GMC 29537628 |
| Bypass Valve | Yes |
| Gasket ID | 2.42 in |
| Gasket OD | 2.75 in |
| Length | 3 in |
| Outer Diameter | 2.89 in |
| Style | Spin-On |
| Filter Rating | 9 micron |
| Filter Type | Hydraulic |
| Thread Size | 3/4-20 UN |
| Media Type | Donaldson media |
| Pressure Rating | 9 psi Low |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT8460 |
| 94282 |
| 96054 |
| LFH8737 |
| HF35247 |

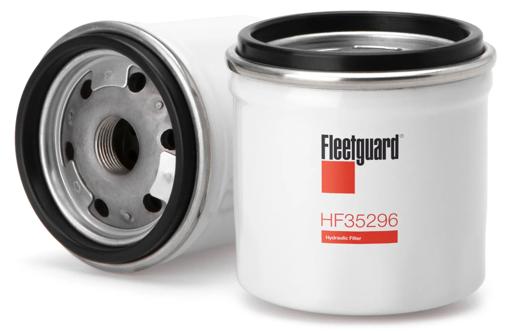

| HF35296 |
| HFR835296 |
| P9264 |
| HF992 |
| H14WD04 |
| SH70071 |
| L7701 |
| FIL7701 |
| 7701 |
| A8460 |
| P1276 |
| 57701 |
| TF950 |
| 29531007 |
| 29539579 |
| 29537268 |
| TF1208 |
| 29537628 |
| S349201230 |
| 42561583 |
| A0002773095 |
| HF550606 |
| WD8009 |
| ATP18592 |
| 18592 |
| DN P550606 |
| DN P550606 |
| 5001872645 |
| 10024940 |
| 2191-P550606 |
| DONP550606 |
| HF35296FLG |
| ABP N10G 29539579 |
