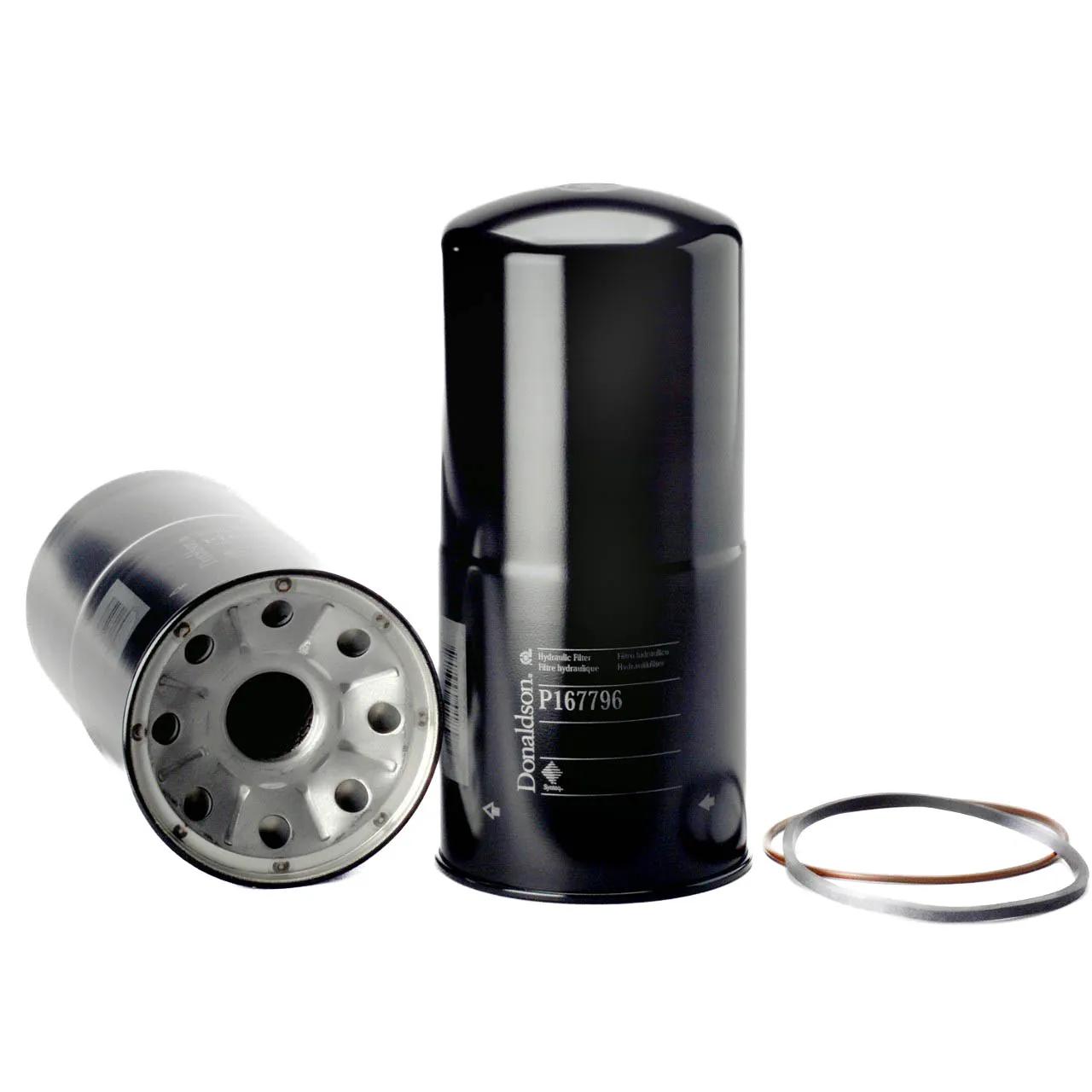

Donaldson Hydraulic Spin-On Filter, Synthetic Media, 10.66 in Length, 1-1/2-16 UN Thread, 5.08 in Outer Diameter
#DONP167796
Product Overview
Hydraulic Filter, Synthetic Media, Filter Rating: 4 micron, 4.72 in Gasket I.D., 5.04 in Gasket O.D., 5.08 in OD, Spin-On, 1-1/2-16 UN Thread, 10.66 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance hydraulic spin-on filters utilize Donaldson media technology which undergoes stringent design and testing setting the standard in filtration performance.
- Donaldson media formulations provide superior hydraulic system protection.
- Donaldson offers the largest selection of replacement hydraulic spin-on filters for greater contamination control.
- A variety of filters which meet and/or exceed OEM specifications.
Specifications
| Diameter Range | 5 to 5.99 in |
| Gasket ID | 4.73 in (120.2 mm) |
| Gasket OD | 5.04 in (128.1 mm) |
| Length | 10-21/32 in |
| Outer Diameter | 5.08 in |
| Series | W023. HBK05. SP50/60. SP80/90. SP100/120. FPK04 |
| Length Range | 10 to 10.99 in |
| Style | Spin-On |
| Thread Size | 1 1/2-16 UN |
| Filter Rating | 4 micron |
| Thread Size | 1 1/2-16 UN |
| Media Type | Synthetic |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| HP75L81MB |
| 70036 |
| 70041 |

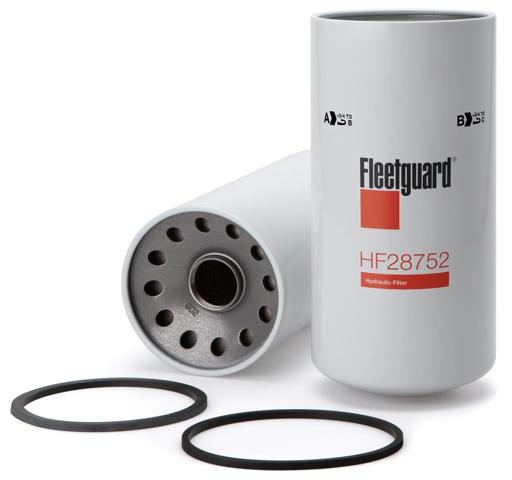

| HF28752 |
| CPL128203SYN50 |
| HC7500SDZ8H |
| HC7500SDZ8Z |
| HC7500SMP8Z |
| HC7500SMZ8H |
| HC7500SMZ8Z |
| SF6702MG |
| 750081UMSF |
| 36972 |
| V0211V2V03 |
| FRESS125M1L |
| LEX3MAF |
| HC7500SDP8Z |
| HC7500SKP8Z |
| HC7500SKZ8H |
| HC7500SKZ8Z |
| HC7500SUP8Z |
| HC7500SCP8Z |
| HC7500SCZ8H |
| HC7500SCZ8Z |
| 1983188 |
| HF167796 |
| HC7500SRP8Z |
| HC7500SRZ8H |
| HC7500SRZ8Z |
| HC7500SHP8Z |
| HC7500SHZ8H |
| HC7500SHZ8Z |
| DN P167796 |
| DN P167796 |
| DCS10000S04ABU |
| S10000S04ABU |
| 296387479 |
| BSO128E03A38 |
| KMP7500AKC8B |
| DCS10000S08ABU |
| S10000S08ABU |
| 2191-P167796 |
| 284733 |
| DONP167796 |
| V0211V2R03 |
| A09A03G |
| HP75L83MB |
