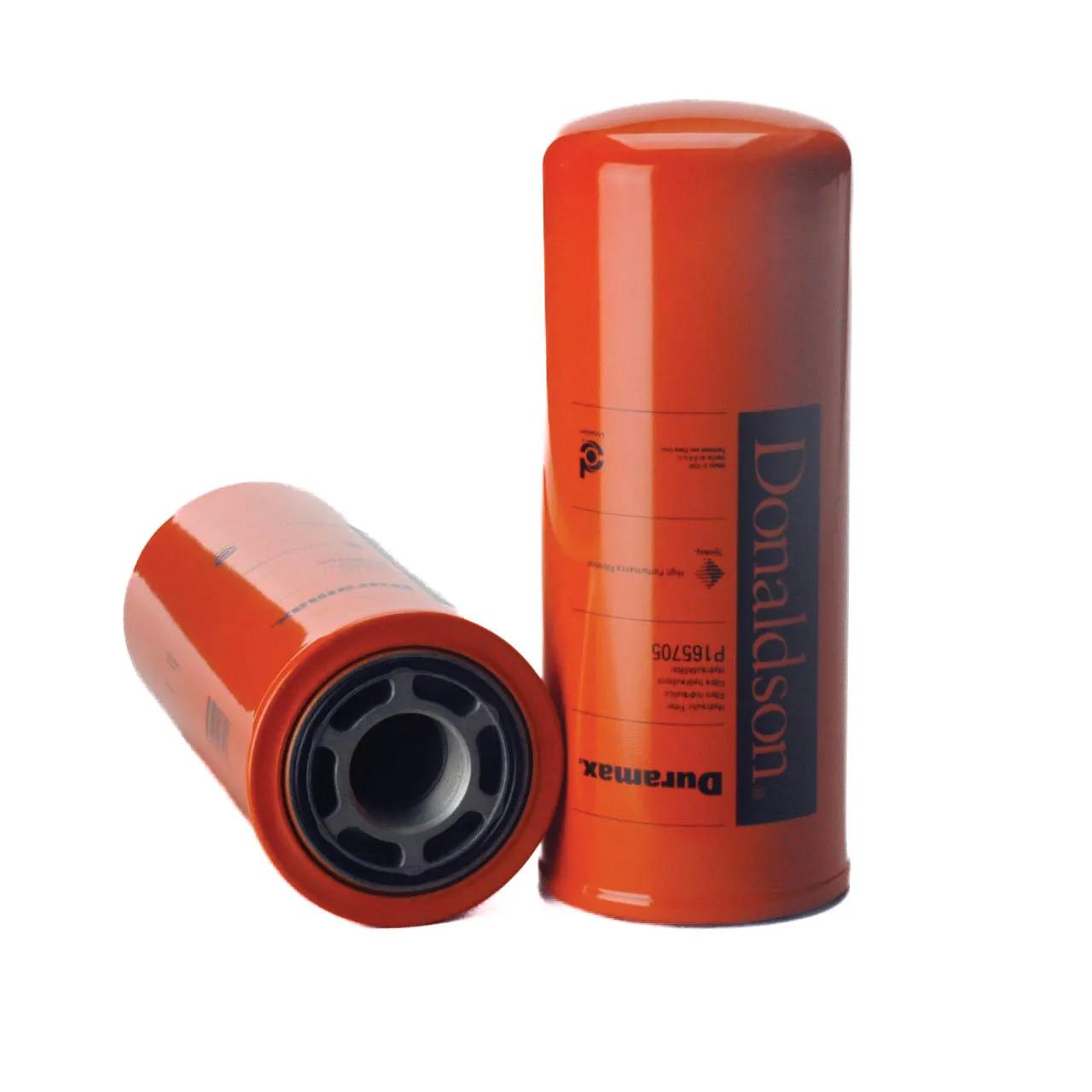

Donaldson Hydraulic Spin-On Filter, Synthetic Media, 11.63 in Length, 1 3/4-12 UN Thread, 4.77 in OD
#DONP165705
Product Overview
Hydraulic Filter, Synthetic Media, Filter Rating: 7 micron, 3.11 in Gasket I.D., 3.39 in Gasket O.D., 4.76 in OD, Spin-On, 1-3/4-12 UN Thread, 11.63 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- Duramax filters are the highest rated medium pressure spin-on filters available in the market.
- Duramax filters are proven, reliable, long-lived and easy to install.
- A variety of mix and match system of heads, housings and media choices to meet your exact requirements.
- Applications include hydrostatic charge side filtration, pilot circuits, power shift transmissions and kidney loop circuits.
- Improved performance including higher burst, greater fatigue strength and longer filter life.
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency Beta 1000 | 23 Micron |
| Efficiency Beta 2 | 7 Micron |
| Gasket ID | 3.11 in (79 mm) |
| Gasket OD | 3.39 in (86.2 mm) |
| Length | 11-5/8 in |
| Outer Diameter | 4.77 in |
| Length Range | 11 to 11.99 in |
| Style | Spin-On |
| Thread Size | 1 3/4-12 UN |
| Filter Rating | 7 Micron |
| Thread Size | 1 3/4-12 UN |
| Media Type | Synthetic |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT8311 |
| BT8873 |
| 85733 |
| K053124 |
| K053143 |
| K053147 |
| K5131 |
| A421C10 |
| HF6589 |
| HFR86589 |
| P7565 |
| HF942 |
| SH66705 |
| KL980010 |
| L255 |
| LFH1832 |
| LFH1922 |
| FP7565 |
| 1733 |
| 944039Q |
| H55117 |
| SPH12517 |
| 51733 |
| 551733 |
| 733 |
| 247429 |
| 7707375 |
| 243622 |
| 375711 |
| 92733 |
| 3I0696 |
| 37104 |
| 956899 |
| 290243622 |
| 24362290 |
| 196444 |
| 196446 |
| CL243622 |
| 9658998 |
| M0965899 |
| 9576P165705 |
| DNP165705 |
| 2118129 |
| 9437100555 |
| HD8822 |
| 1392399 |
| 83432 |
| HC114 |
| E1A0080 |
| 20038 |
| 965899 |
| 7384996 |
| 800820026 |
| 4044454 |
| 4404454 |
| 549739 |
| 2246035 |
| 738499600 |
| 687252 |
| 54900A60000070 |
| HF165705 |
| MI965899 |
| 811016 |
| 811018 |
| 1978 |
| 0965899 |
| 020038 |
| 019005200036 |
| 00811016 |
| 00811018 |
| DN P165705 |
| DN P165705 |
| 130000910001 |
| 2191-P165705 |
| 3I-0696 |
| 9-437-100555 |
| DONP165705 |
| FIL1733 |
| F |
| 19005200036 |
