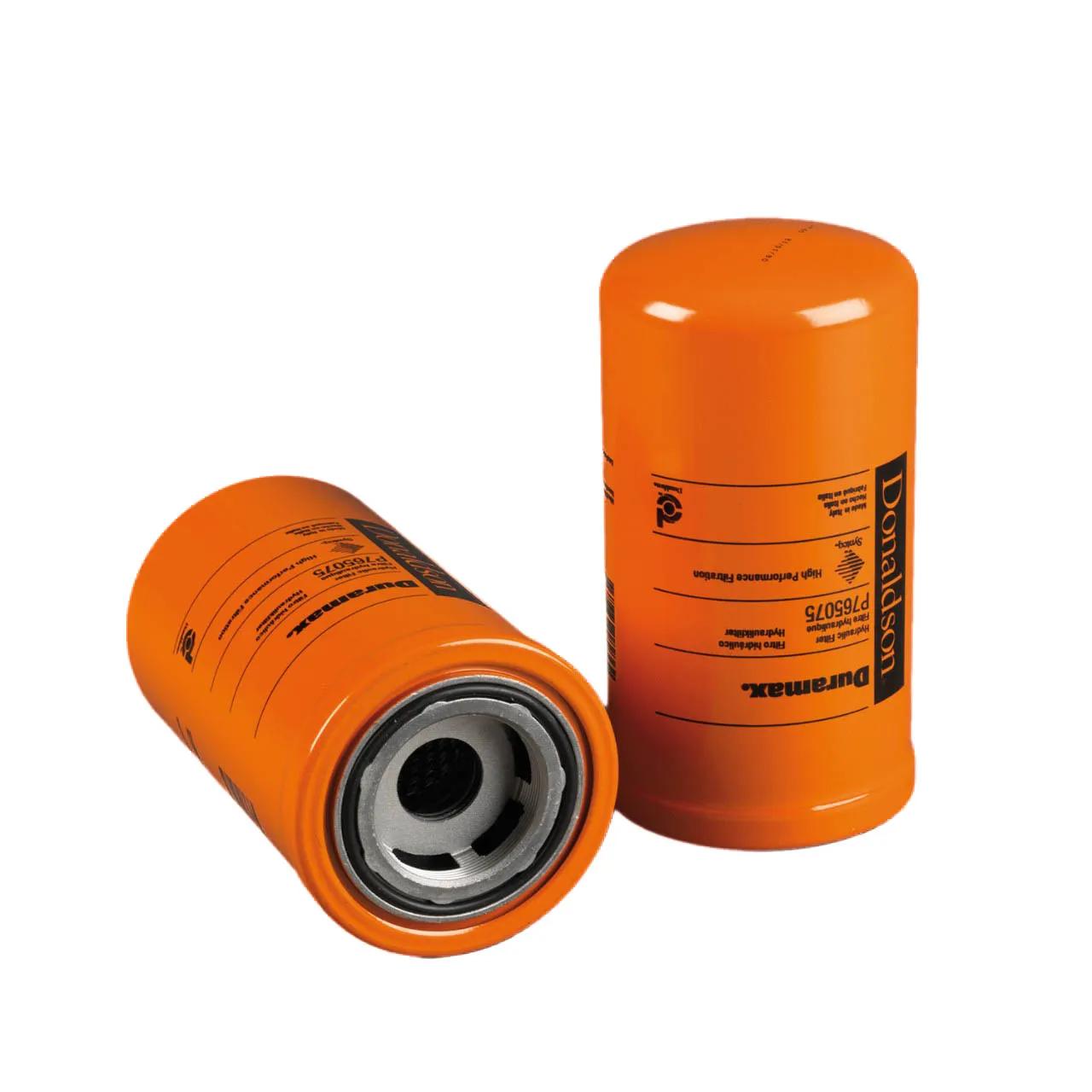

Donaldson Hydraulic Spin-On Filter, Synthetic Media, 7.13 in Length, 3.82 in Outer Diameter, Thread 2-16 UN
#DONP765075
Product Overview
Removes abrasives that could damage the hydraulic pump and other hydraulic system components. Features high-performance synthetic media technology that provides superior hydraulic system protection and meets or exceeds OEM specifications.Hydraulic Filter, Synthetic Media, Yes Bypass Valve, Filter Rating: 9 micron, 2.48 in Gasket I.D., 2.76 in Gasket O.D., 3.82 in OD, 41 psi Low Pressure, Spin-On, 2-16 UN Thread, For DANA 4209440, 7.13 in L
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
- High-performance hydraulic spin-on filters utilize Donaldson media technology which undergoes stringent design and testing setting the standard in filtration performance.
- Donaldson media formulations provide superior hydraulic system protection.
- Donaldson offers the largest selection of replacement hydraulic spin-on filters for greater contamination control.
- A variety of filters which meet and/or exceed OEM specifications.
Specifications
| Application | DANA 4209440 |
| Bypass Valve | Yes |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 1000 | 11 Micron |
| Gasket ID | 2.48 in (63 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 7-1/8 in |
| Outer Diameter | 3.82 in |
| Length Range | 7 to 7.99 in |
| Style | Spin-On |
| Thread Size | 2-16 UN |
| Filter Rating | 9 micron |
| Thread Size | 2-16 UN |
| Media Type | Synthetic |
| Pressure Rating | 41 psi Low |
| Product Category | Hydraulic Filter |
Interchanges & Equivalent parts:
| BT9400MPG |
| HF35464 |
| SH66201 |
| LFH8484 |
| 7227 |
| HC45030 |
| SPH12554 |
| 57227 |
| 4209440 |
| D4209440 |
| 1556992 |
| 8008101 |
| 4258178279 |
| 9210280007 |
| 140522 |
| 9364243 |
| 10035430 |
| TFC45H |
| Z6550537 |
| 580048036 |
| 0906041009CRE |
| 76086226 |
| BT9400-MPG |
| LFH8484LFB |
