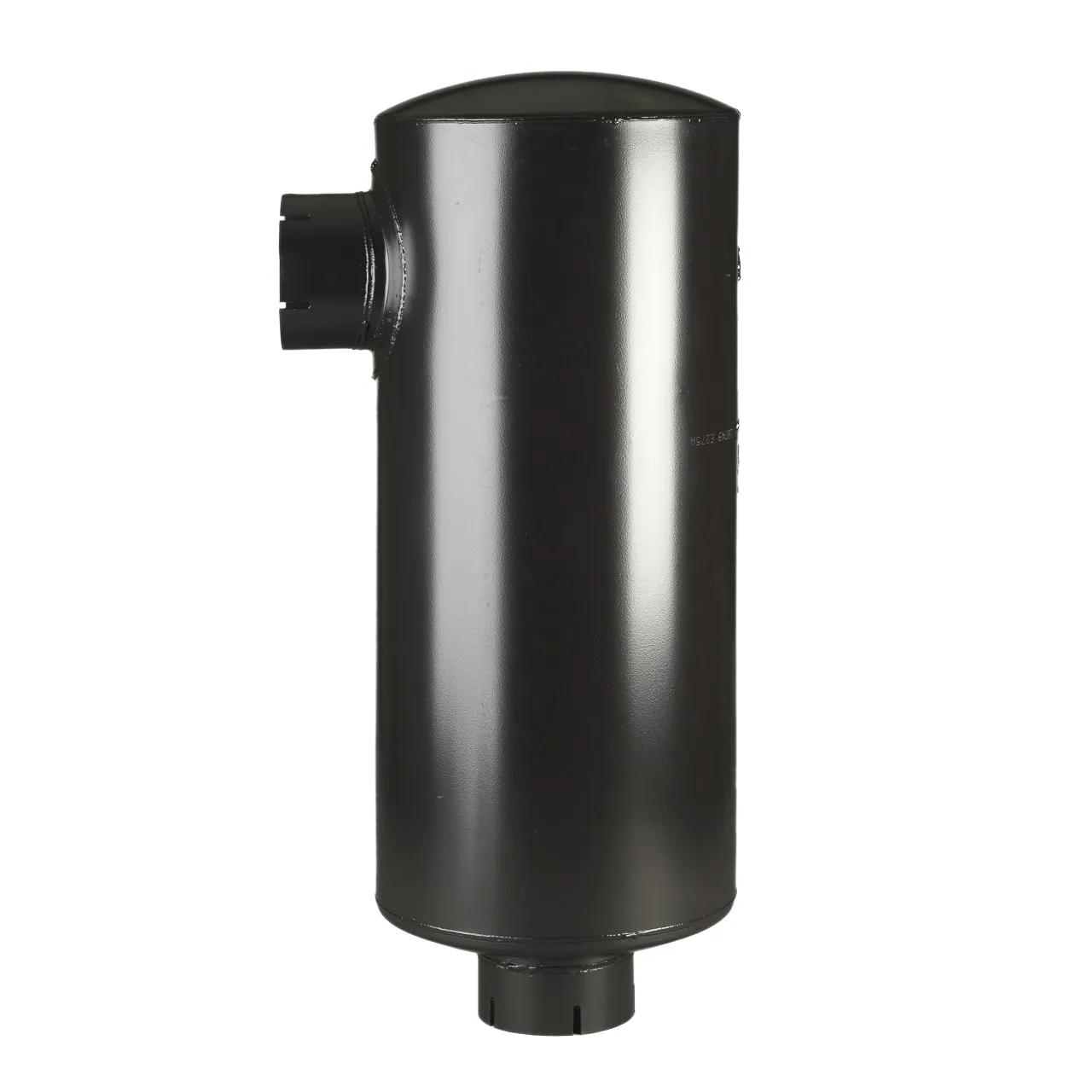

Donaldson Muffler, 26 in Length, 12 in Body Diameter, 5 in Inlet Diameter
#DONM120749
Product Overview
Muffler, Low Range: 12 dBA, High Range: 18 dBA Attenuation, Back Pressure Rating: Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.01 InHg, 11.84 in Body Dia, 5.03 in Inlet Dia, 3/4
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Body Diameter | 12 in |
| Body Length | 25-63/64 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 5 in |
| Inlet Position | 0,25 |
| Length | 26 in |
| Outlet Diameter | 5 in |
| Overall Length | 31-39/64 in |
| Rated Flow High Range | 2447.31 cfm (69.3 m³/min) |
| Rated Flow Low Range | 1762.2 cfm (49.9 m³/min) |
| Length Range | 25 to 26 in |
| Style | Style 3/4 |
| Attenuation | Low Range: 12 dBA, High Range: 18 dBA |
| Back Pressure Rating | Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.01 InHg |
| Product Category | Muffler |
Interchanges & Equivalent parts:
| 201577N |
| 114666460 |
| P3423079 |
| 1000200020 |
| 122614 |
| 2191-M120749 |
| DCM120749 |
| DONM120749 |
| DN M120749 |
| DN M120749 |
