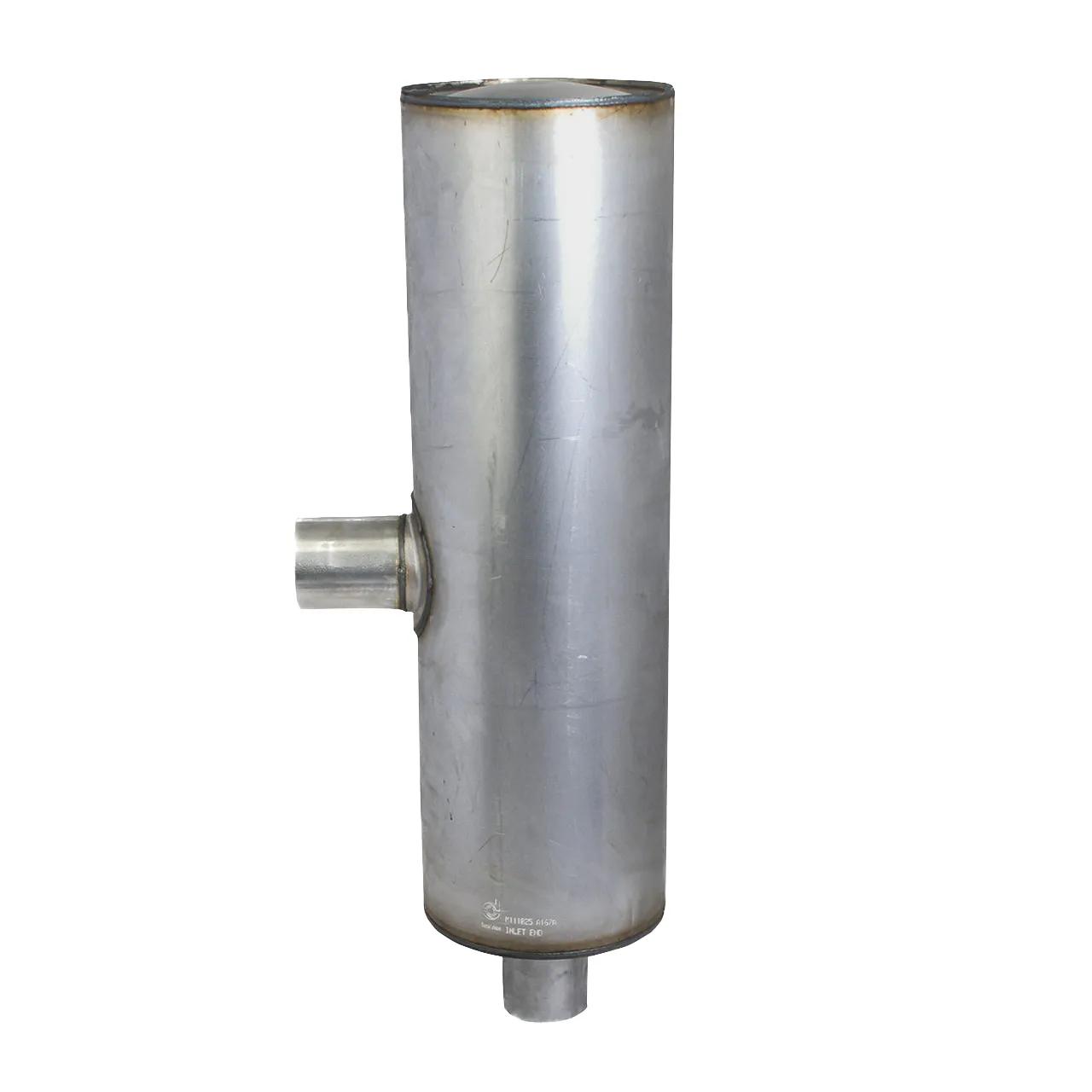

Donaldson Muffler, 36 in Length, 11.08 in Body Diameter, 4 in Inlet Diameter
#DONM111025
Product Overview
Muffler, Low Range: 15 dBA, High Range: 21 dBA Attenuation, Back Pressure Rating: Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.99 InHg, 11.08 in Body Dia, 4.00 in Inlet Dia, 4
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre du corps | 11,08 po |
| Diamètre | 11-5/64 po |
| Diamètre d'entrée | 4,00 po |
| Longueur | 36 po |
| Position de l'horloge de sortie | 6:00 |
| Diamètre de sortie | 4 po |
| Longueur totale | 41 po |
| Gamme haute de débit nominal | 1975 pi³/min (55,93 m³/min) |
| Plage basse de débit nominal | 1141 pi³/min (33 m³/min) |
| Rated Flow Mid Range | 1611 pi³/min (45,62 m³/min) |
| Style | Style 4 |
| Attenuation | 15 to 21 dBA |
| Back Pressure Rating | 0.98 to 2.99 in HG |
| Outlet Position | 0.25 |
| Product Category | Silencieux |
Interchanges & Equivalent parts:
| 418814007 |
| DN M111025 |
| DN M111025 |
| 0418814007 |
| 04-18814-007 |
| DONM111025 |
| 2191-M111025 |
| DCM111025 |
