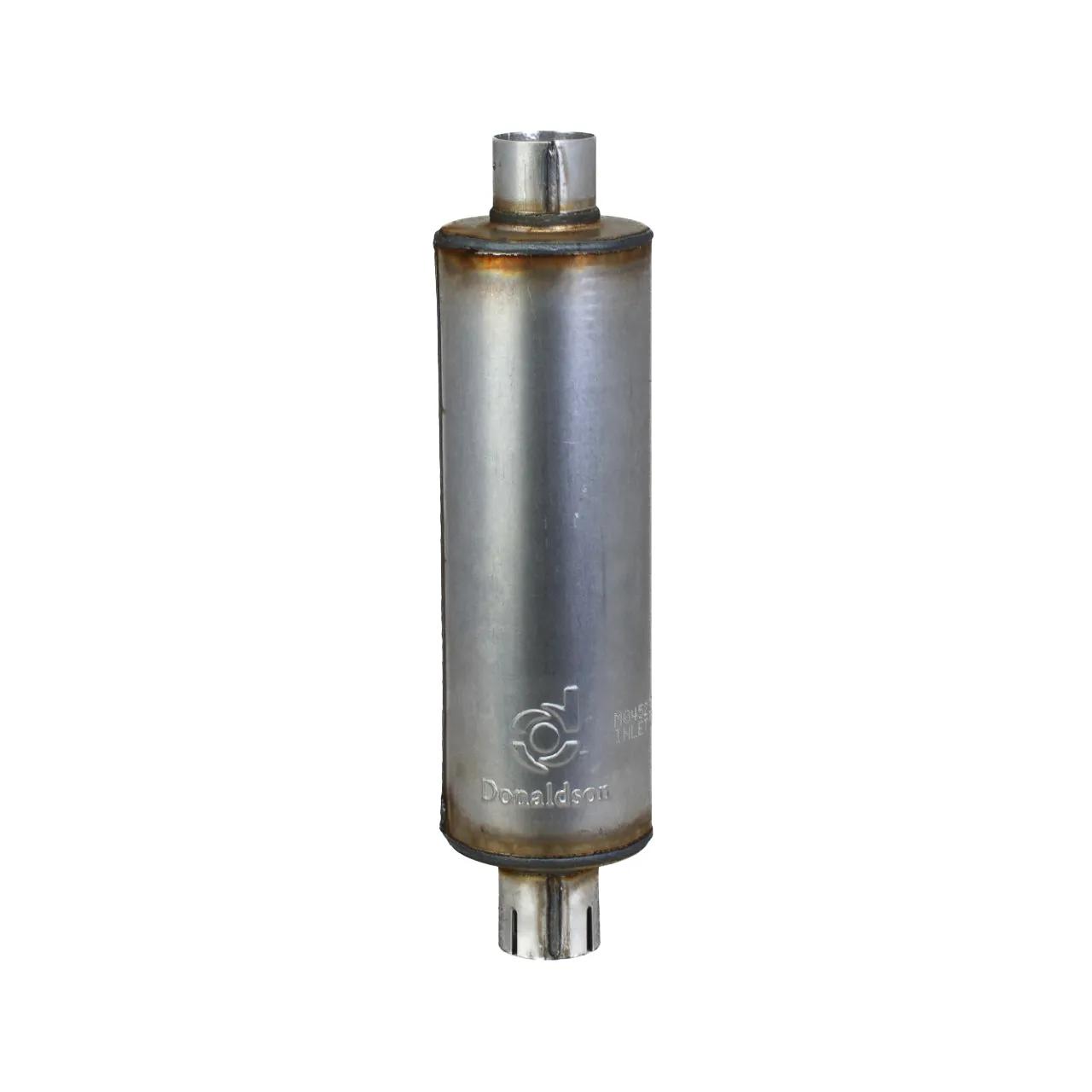

Donaldson Muffler, Round, 4-3/8 in Body Diameter, 2 in Inlet/Outlet Diameter, 17 in Overall Length
#DONM045237
Product Overview
Muffler, Low Range: 8 dBA, High Range: 12 dBA Attenuation, Back Pressure Rating: Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.99 InHg, 4.37 in Body Dia, 2.02 in Inlet Dia, 1
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 4-3/8 in |
| Body Length | 12-33/64 in |
| Color | Aluminized |
| Height | 4-1/4 in |
| Inlet Diameter | 2 in |
| Inlet Quantity | 1 |
| Inlet Type | Pipe Connection |
| Length | 11-1/4 in |
| Material | Steel |
| Outlet Diameter | 2 in |
| Outlet Quantity | 1 |
| Outlet Type | Pipe Connection |
| Rated Flow High Range | 529.72 cfm (15 m³/min) |
| Rated Flow Low Range | 307.24 cfm (8.7 m³/min) |
| Reversible | No |
| Shape | Round |
| Length Range | 12 to 13 in |
| Style | Style 1 |
| Width | 4-1/4 in |
| Attenuation | Low Range: 8 dBA, High Range: 12 dBA |
| Back Pressure Rating | Low Range: 0.98 in HG, Mid Range: 2.01 in HG, High Range: 2.99 in HG |
| Body Shape | Round |
| Product Category | Muffler |
Interchanges & Equivalent parts:
| M045237 |
| 86177M |
| 80 |
| 2050029 |
| 76020614 |
| 60094381 |
| 66U21491 |
| 1249281H1 |
| 4700921989 |
| 921989 |
| 34112 |
| 1D22101 |
| 16H40043 |
| 2260801 |
| 401666 |
| 197700 |
| 199254 |
| 260424V11 |
| 9575M045237 |
| 604966 |
| 43B25 |
| 91203058 |
| 764210000 |
| HD4020 |
| 31074 |
| M06554 |
| DCM045237 |
| 3220033 |
| AT10646 |
| 519020018 |
| 51910218 |
| 846100209 |
| 78152 |
| 206655 |
| 806556 |
| 13000402 |
| LL84786 |
| MM313 |
| 13706 |
| 34862 |
| 64572841 |
| 180363 |
| 10002214 |
| 40009 |
| 911349 |
| 810261 |
| 21025 |
| 21188 |
| 21722 |
| 11908 |
| MUF20006 |
| 013706 |
| 00810261 |
| M2244 |
| 69445089 |
| 720000 |
| F18685 |
| N100615 |
| 950250016 |
| DN M045237 |
| DN M045237 |
| 2191-M045237 |
| 2614907B |
| 31074HDM |
| DONM045237 |
| EG0938 |
| EN1632 |
| W21188 |
| 3970 |
