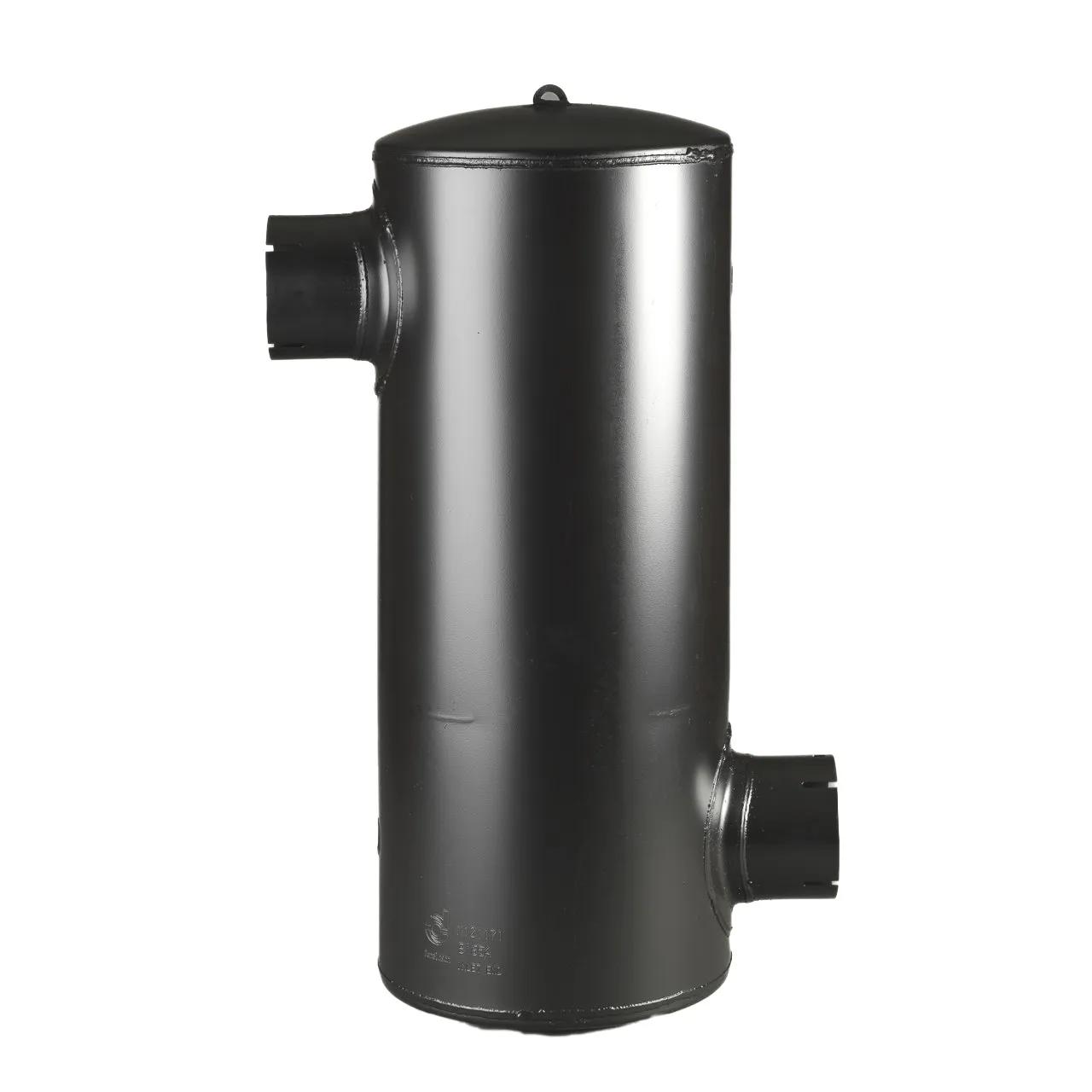

Donaldson Muffler, Style 6, 24 in Length, 10 in Body Diameter, 4 in Inlet Diameter
#DONM101171
Product Overview
Donaldson Style 6 Round Muffler with a 24-inch length and 10-inch body diameter, designed for superior performance in exhaust systems. Features precise attenuation and back pressure ratings for optimal flow and noise reduction in on- and off-road applications.Muffler, Low Range: 12 dBA, High Range: 18 dBA Attenuation, Back Pressure Rating: Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.99 InHg, 10 in Body Dia, 4.02 in Inlet Dia, 6
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Body Diameter | 10 in |
| Body Length | 24-1/64 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 4 in |
| Inlet Position | 0,25 |
| Length | 24 in |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 4 in |
| Overall Length | 26-3/8 in |
| Rated Flow High Range | 1998.81 cfm (56.6 m³/min) |
| Rated Flow Low Range | 1412.59 cfm (40 m³/min) |
| Style | Style 6 |
| Attenuation | Low Range: 12 dBA, High Range: 18 dBA |
| Back Pressure Rating | Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.99 InHg |
| Outlet Position | 0,5 |
| Product Category | Muffler |
Interchanges & Equivalent parts:
| 201574N |
| 8NG3100025 |
| N100283 |
| J9A0331 |
| 13000571 |
| DN M101171 |
| DN M101171 |
| 8NG3100024 |
| 2191-M101171 |
| DCM101171 |
| DONM101171 |
