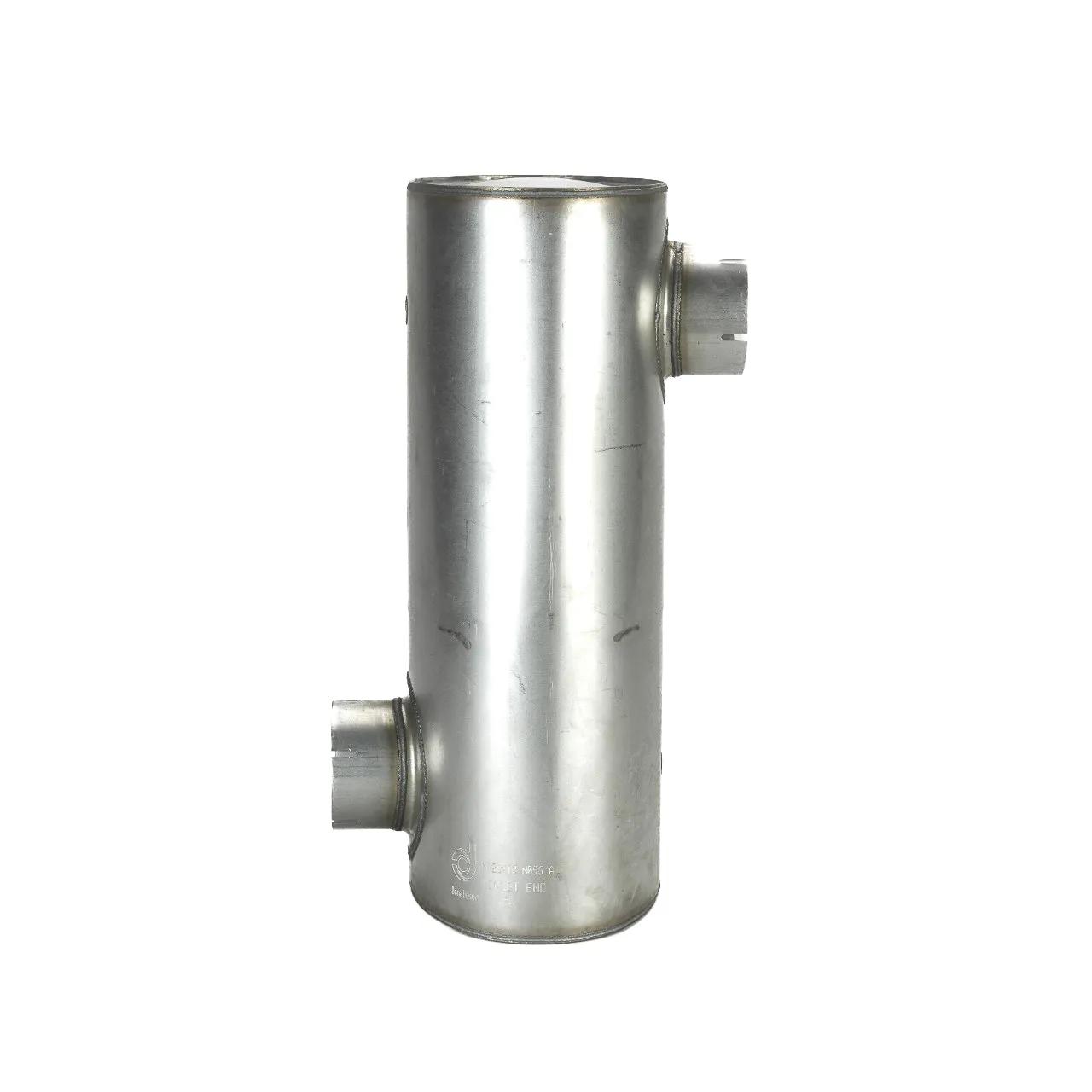

Donaldson Muffler, Style 6, 28 in Length, 15 in Body Diameter, 5 in Inlet Diameter
#DONM120418
Product Overview
Muffler, Low Range: 15 dBA, High Range: 20 dBA Attenuation, Back Pressure Rating: Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.99 InHg, 15 in Body Dia, 5.03 in Inlet Dia, 6
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 15 in |
| Body Diameter Max | 15 in |
| Body Length | 27-63/64 in |
| Inlet Clock Position | 6:00 |
| Inlet Diameter | 5 in |
| Inlet Position | 0,25 |
| Length | 28 in |
| Outlet Clock Position | 12:00 |
| Outlet Diameter | 5 in |
| Rated Flow High Range | 2348.43 cfm (66.5 m³/min) |
| Rated Flow Low Range | 1356.08 cfm (38.4 m³/min) |
| Length Range | 27 to 28 in |
| Style | Style 6 |
| Attenuation | Low Range: 15 dBA, High Range: 20 dBA |
| Back Pressure Rating | Low Range: 0.98 InHg, Mid Range: 2.01 InHg, High Range: 2.99 InHg |
| Outlet Position | 0,5 |
| Product Category | Muffler |
Interchanges & Equivalent parts:
| 3941 |
| 15011 |
| 15911 |
| 1901134 |
| 3018051102 |
| NM120418 |
| 4013195000 |
| 4001319500 |
| 413195 |
| 10000494 |
| 9575M120418 |
| 31250 |
| EB5665 |
| EB5922 |
| 63229 |
| DCM120418 |
| P103952 |
| 22452 |
| 004013195000 |
| 2191-M120418 |
| 31250HDM |
| DONM120418 |
| DN M120418 |
| DN M120418 |
