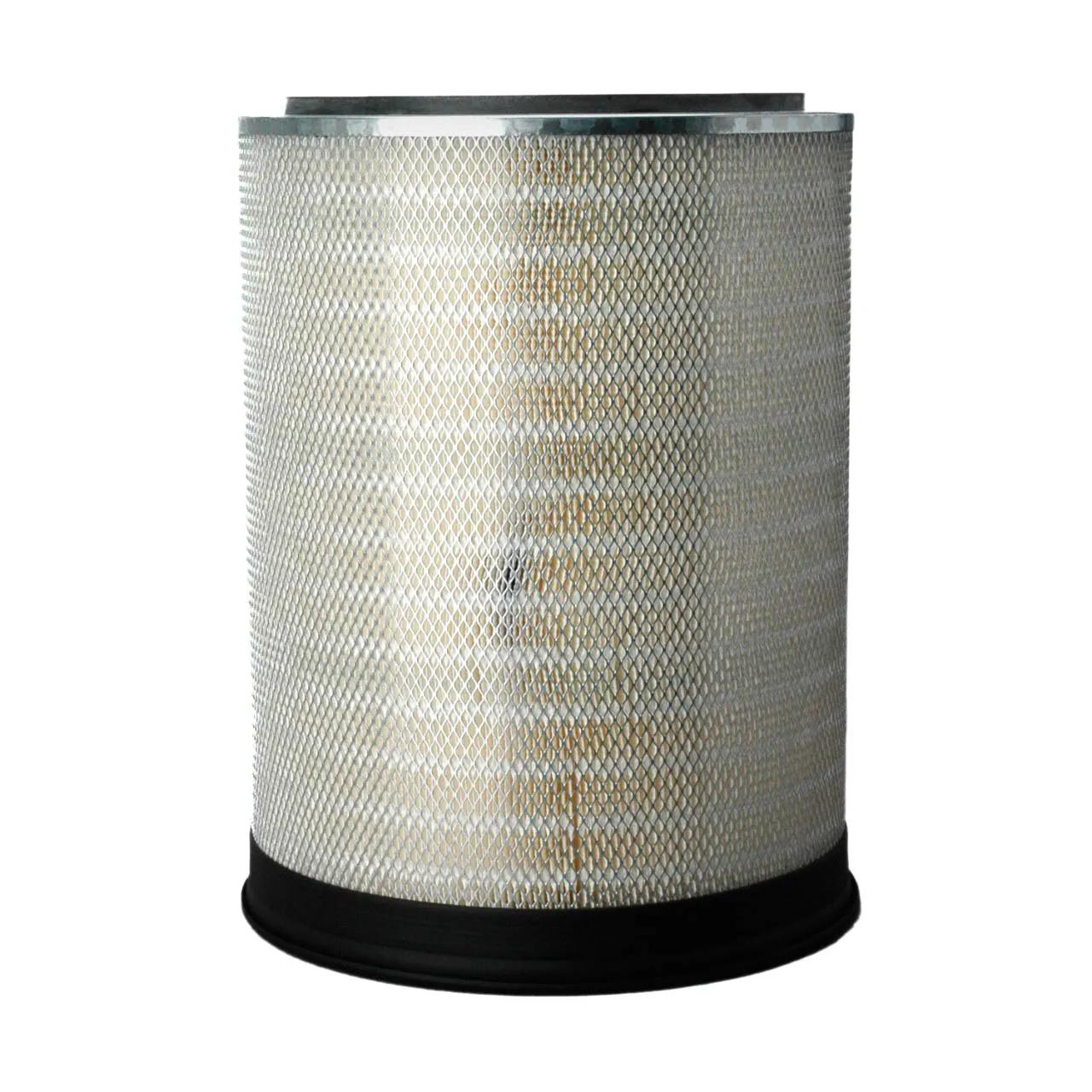

Donaldson Primary Air Filter, Cellulose Media, 99.9% Efficiency, 12.22 in ID, 17.58 in OD, Round
#DONP181040
Product Overview
Air Filter, Primary, Cellulose Media, Bolt Hole Diameter: 0.89 in, 99.9 Filter Efficiency, 12.22 in ID, 17.58 in OD, Standards: ISO 5011, Round
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
- Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life
Specifications
| Bolt Hole Diameter | 0.89 in (22.7 mm) |
| Inner Diameter | 12.22 in (310.4 mm) |
| Length | 23.06 in (585.8 mm) |
| Outer Diameter | 17.58 in (446.54 mm) |
| Style | Round |
| Filter Efficiency | 99.9 |
| Filter Type | Primary |
| Media Type | Cellulose |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| P181040 |
| 2238 |
| 42238 |
| ARM117782 |
| 121947 |
| PA2453 |
| CFM574 |
| 87238 |
| P812050 |
| 3108 |
| 11980 |
| AA2907 |

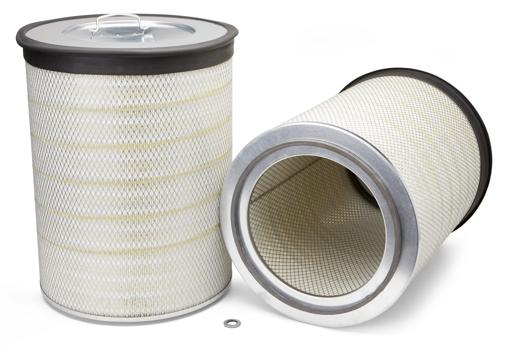

| AF899 |
| FA117782 |
| FA7782 |
| AAR82907 |
| AFR8899 |
| CA1570 |
| GA569 |
| GA569E |
| GA569M |
| AF576 |
| A6658 |
| E7782 |
| HDA6658 |
| HDA7782 |
| TME7782 |
| SA10849 |
| KA940011 |
| LA574 |
| LAF1818 |
| LAF7782 |
| C453265 |
| FA756 |
| 117782 |
| 70125N |
| 6696758 |
| A72922 |
| AF2922 |
| SL8946 |
| SFA1040P |
| U17782 |
| A901C |
| 1150 |
| 93238 |
| AP3520A |
| 21000263 |
| E2305 |
| 1050507 |
| F1050507 |
| 150507 |
| E1010507 |
| E1250566 |
| F1010507 |
| F150507 |
| P1050507 |
| 1W3637 |
| CV21183 |
| 3I0793 |
| 7218104000 |
| 9826250710001 |
| PCA1570 |
| AEM2022 |
| AZA514 |
| PMA117782 |
| 401PPP117782 |
| SMP181040 |
| 684 |
| 684AIR |
| AF684 |
| 4022651 |
| 9038350 |
| 9059562 |
| 746713 |
| G117782 |
| 7650214 |
| HD6820 |
| AR1570 |
| 35356153 |
| 3040615 |
| 3040616 |
| 3040644 |
| 3040648 |
| 3040653 |
| 3040654 |
| AG155 |
| 5810212120 |
| PB1400 |
| PB1569 |
| PB2101 |
| VA0010 |
| 130110 |
| MDONP182040 |
| AP3520 |
| LK3520 |
| 20897 |
| 22007 |
| 8690940013 |
| N2787 |
| S2787 |
| 101094 |
| 8406371 |
| B406371 |
| HF1410 |
| AF2238 |
| 330570136 |
| 9059512 |
| 687480 |
| 901619 |
| AF181040 |
| 7001 |
| P182040 |
| LAF1818MXM |
| A9218 |
| A-9218 |
| 5821348 |
| 42238NP |
| 87238XP |
| 1036 |
| 103661 |
