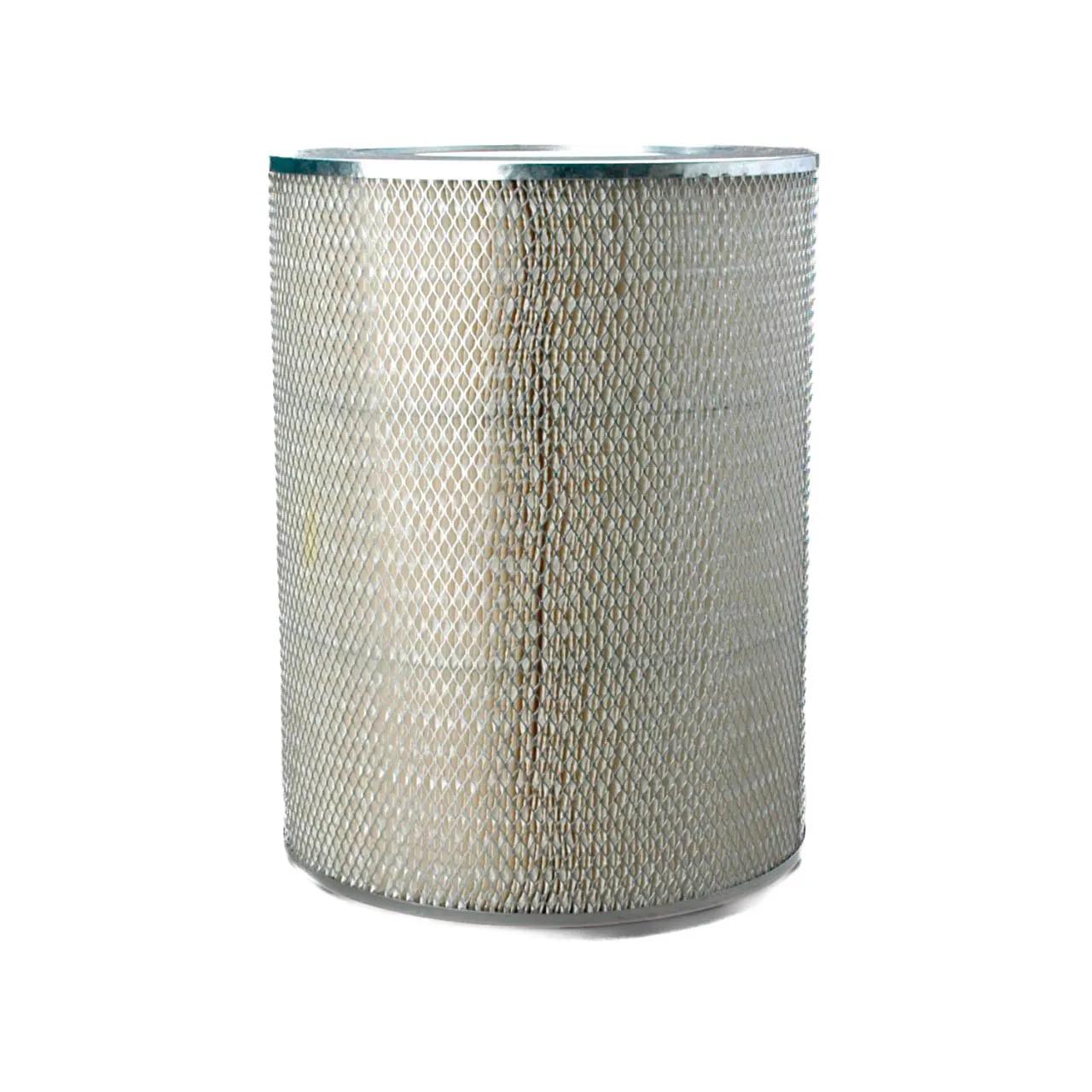

Donaldson Primary Air Filter, Cellulose Media, 99.9% Efficiency, 18 in Length, 13.84 in OD, 9.48 in ID
#DONP182039
Product Overview
Air Filter, Primary, Cellulose Media, Bolt Hole Diameter: 0.89 in, 99.9 Filter Efficiency, 9.47 in ID, 13.84 in OD, Standards: ISO 5011, Round
Features & Benefits
- Strong, reliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- More media pleats deliver higher dust-holding capacity and longer filter life
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
- Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life
Specifications
| Bolt Hole Diameter | 0.89 in (22.7 mm) |
| Efficiency (Percent) | 0.999 |
| Efficiency Test Std | ISO 5011 |
| Family | STG |
| Inner Diameter | 9.48 in (240.8 mm) |
| Length | 18 in (457.2 mm) |
| Outer Diameter | 13.84 in (351.54 mm) |
| Style | Round |
| Type | Primary Air Filter |
| Filter Efficiency | 99.9 |
| Filter Type | Primary |
| Media Type | Cellulose |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| 121794 |
| LL1894 |
| PA1894 |
| CFM287 |
| CFM578 |
| LAF9155XL |
| R804304 |
| P117441 |
| 10015 |
| 39828 |
| E115 |
| 9514 |
| AF851 |
| FA109155 |
| FA9155 |
| AFR8851M |
| XLP182039 |
| A9155 |
| SA10801 |
| SA10601 |
| C361142 |
| 70072L |
| A7912 |
| 800176885 |
| 71409552 |
| 72527840 |
| 2X3310 |
| AE27010 |
| SFA0851P |
| 588006210 |
| AP3028A |
| 3090541121 |
| 3014052007 |
| 45474 |
| 352569 |
| 2914400600 |
| 2650616390 |
| 5540108600 |
| 5540417500 |
| 277418 |
| E2304 |
| 401476202 |
| 86033526 |
| 61329602 |
| 61404404 |
| 1299437 |
| AP536 |
| 507221 |
| 423218C1 |
| E117207 |
| M1950527 |
| S224637 |
| SFD45252 |
| 1849116 |
| 4003012R1 |
| 45252 |
| 700701211 |
| 84217251 |
| N1950527 |
| X0850538 |
| 1N8165 |
| 3I0792 |
| 6N6071 |
| 8J5897 |
| 8L5897 |
| 774290 |
| 3I0920 |
| 1314431H91 |
| 68PS4670 |
| 1514580P |
| E1514580 |
| M1564833 |
| 1564833 |
| 966538 |
| 4002720006 |
| P181039 |
| 4710040 |
| AP109155 |
| PMA109155 |
| 421899 |
| K1053750 |
| 988637 |
| 1340122 |
| 942626C1 |
| VE7438 |
| 2004058 |
| 200458 |
| 4082221 |
| E4082221 |
| E4881174 |
| 403216 |
| 4000055 |
| 4005102 |
| 4881174 |
| 6233146 |
| 9035866 |
| 9035988 |
| 9035992 |
| 9037362 |
| 9038900 |
| 9038906 |
| 9247127 |
| 9249091 |
| 9256640 |
| 9370902 |
| 44811749 |
| 4000055P |
| 4005102P |
| 9256640P |
| 9369053P |
| 9370902P |
| A0040940004 |
| 718325 |
| 746395 |
| 700701 |
| 2906 |
| AF851M |
