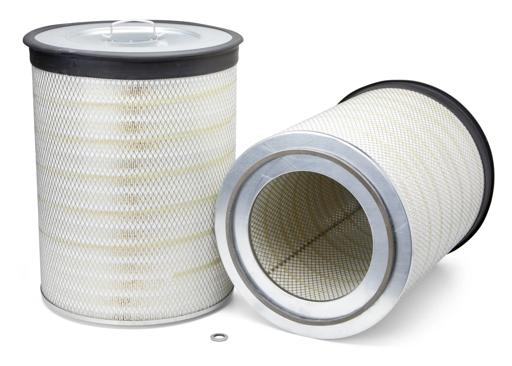

Donaldson Primary Air Filter, Cellulose Media, 99.9% Efficiency, 23.06 in Length, 17.58 in Outer Diameter, 11.07 in Inner Diameter
#DONP182038
Product Overview
Air Filter, Primary, Cellulose Media, Bolt Hole Diameter: 0.89 in, 99.9 Filter Efficiency, 11.07 in ID, 17.58 in OD, Standards: ISO 5011, Round
Features & Benefits
- Strong, reliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- More media pleats deliver higher dust-holding capacity and longer filter life
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
- Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life
Specifications
| Bolt Hole Diameter | 0.89 in (22.7 mm) |
| Efficiency Test Std | ISO 5011 |
| Family | SRG |
| Inner Diameter | 11.07 in (281.2 mm) |
| Length | 23.06 in (585.8 mm) |
| Outer Diameter | 17.58 in (446.54 mm) |
| Style | Round |
| Filter Efficiency | 99.9 |
| Filter Type | Primary |
| Media Type | Cellulose |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| P182038 |
| 2440 |
| 42440 |
| 121758 |
| LL2363 |
| CFM528 |
| LAF5069XL |
| 3105 |
| 11890 |
| AF879M |
| FA115069 |
| FA5069 |
| AFR8879M |
| A5069 |
| SA10829 |
| FA763 |
| A9217 |
| SFA0879P |
| HF153 |
| 62101232 |
| USP66215010 |
| 3I0791 |
| 9Y6835 |
| 2515885 |
| 2925862 |
| 3I0919 |
| 9Y7662 |
| 7218103800 |
| 3010306 |
| 3013214 |
| 3015349 |
| 3875391 |
| XLP182038 |
| 988635 |
| 694488 |
| 3745965 |
| VE0779 |
| 4082222 |
| 6945659 |
| 40822223 |
| E4082222 |
| 9576P181038 |
| DNP181038 |
| HD6605 |
| HD8900 |
| 433192 |
| 4331923 |
| L4331923 |
| X4331923 |
| 35325885 |
| 39190103 |
| 52242971 |
| 57087264 |
| 56964562 |
| VS2186HP |
| VS2186HD |
| 69448800 |
| VS2186 |
| 50388 |
| 43669 |
| 4078927 |
| 4079927 |
| 1438 |
| PB0687 |
| PB1242 |
| PB2433 |
| VA0003 |
| YA0003 |
| D988635 |
| 13011A1 |
| 20289 |
| 20869 |
| KFA0233476 |
| 172037 |
| N2587 |
| S2587 |
| 1046Z727 |
| 1046Z507 |
| AF2440 |
| 873159 |
| 16708059 |
| 500005242 |
| 50005242 |
| 50005252 |
| 330560501 |
| 351658 |
| 420003 |
| 1203897 |
| 101080 |
| 1408439 |
| 901727 |
| 9059510 |
| 9059560 |
| 687752 |
| 687472 |
| AF182038 |
| 4031216 |
| 12000204 |
| 811055 |
| P181038 |
| 20768 |
| WGA393 |
| 020289 |
| 016708059 |
| 00811055 |
| 000036475 |
| 001475342 |
| DN P182038 |
| DN P182038 |
| 01670 |
| EAF5038 |
| LAF5069MXM |
| 42440NP |
| QSA573 |
| SL8944 |
