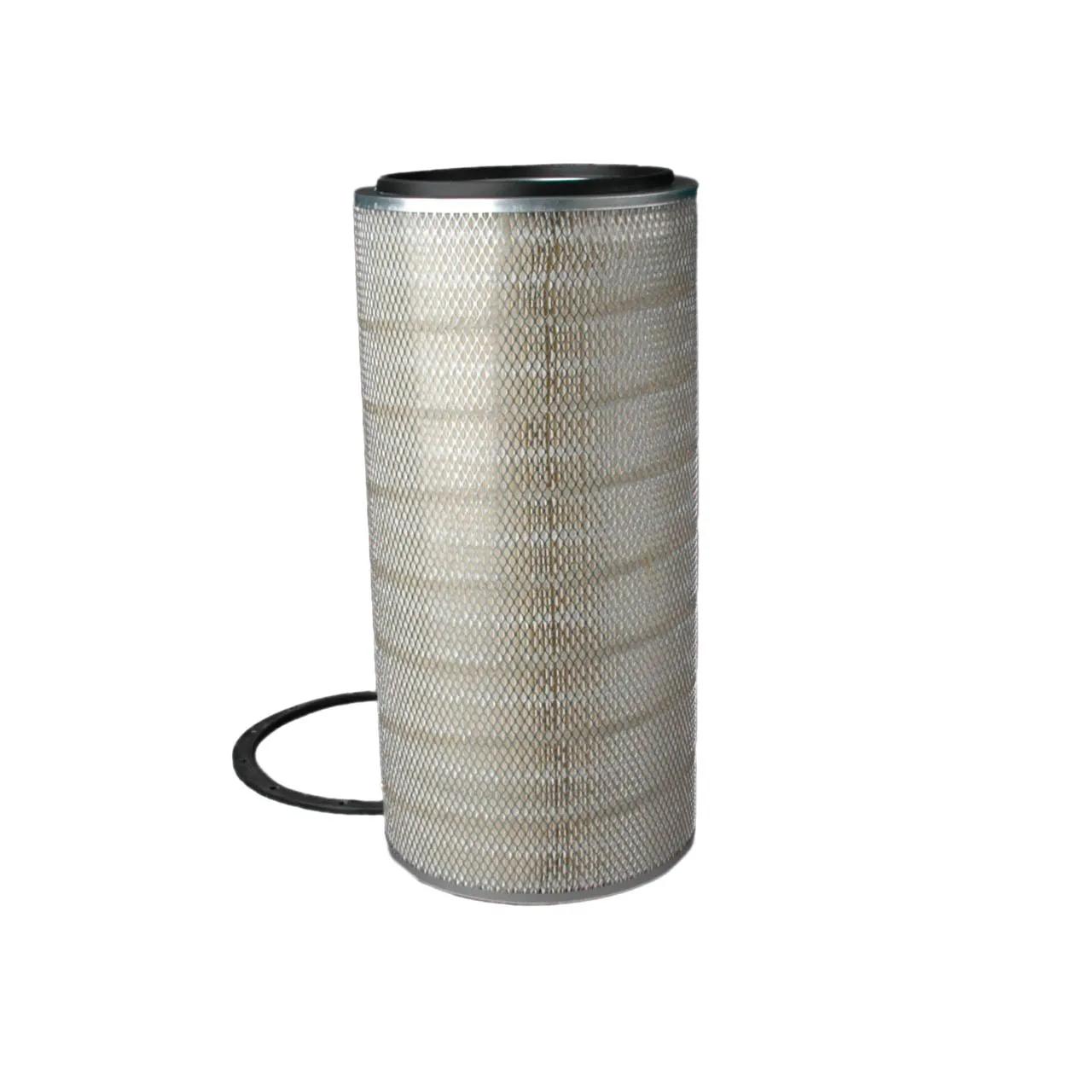

Donaldson Primary Air Filter, Cellulose Media, 99.9% Efficiency, 26.5 in Length, 12.74 in OD, 8.39 in ID
#DONP181009
Product Overview
Air Filter, Primary, Cellulose Media, 99.9 Filter Efficiency, 8.38 in ID, 12.74 in OD, Standards: ISO 5011, Round
Features & Benefits
- Strong, pliable gasket is compressed against the air cleaner housing to create a tight seal
- High-efficiency cellulose media performs across a wide range of heavy-duty engine applications
- Corrosion resistant, coated steel liners support media during operation and help maximize airflow
- Pleatloc feature ensures uniform pleat spacing and prevents media from bunching to promote longer service life
Specifications
| Efficiency Test Std | ISO 5011 |
| Family | EBA |
| Inner Diameter | 8.39 in (213.2 mm) |
| Length | 26 in (660.4 mm) |
| Outer Diameter | 12.74 in (323.6 mm) |
| Style | Round |
| Type | Primary Air Filter |
| Filter Efficiency | 99.9 |
| Filter Type | Primary |
| Media Type | Cellulose |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ARM116880 |
| ARM134745 |
| ARM181009 |
| 121784 |
| LL2357 |
| PA2357 |
| CFM616 |
| 87661 |
| AF1865 |
| HA513 |
| LAF6880 |
| AF865 |
| AF865M |
| FA116880 |
| FA6880 |
| AFR8865 |
| AFR8865M |
| CA596 |
| HCA596 |
| GA596 |
| GA6880 |
| GA6880A |
| GA880 |
| AF306 |
| A0724 |
| A4183 |
| A8299 |
| E8299 |
| HDA0724 |
| HDA4183 |
| HDA8299 |
| TME8299 |
| SA10815 |
| LA616 |
| LAF6080 |
| FA620 |
| 2661 |
| 128299 |
| 70185N |
| 84931S |
| 6693756 |
| 6947602 |
| A82893 |
| A84545 |
| AF2893 |
| AFN2595 |
| HDA5388 |
| A5426 |
| SFA1009 |
| U16880 |
| SB150A |
| 42661 |
| A579C |
| SFA1009P |
| 1025 |
| 93661 |
| 428680C1 |
| 3I0767 |
| 3I0898 |
| 7C8305 |
| 7W7421 |
| 7218100900 |
| PCA596 |
| AEM2376 |
| PMA116880 |
| SMP181009 |
| XLP182009 |
| 784 |
| 784AIR |
| 97342400152 |
| 97342400185 |
| 98342400185 |
| 9576P181009 |
| DNP181009 |
| DC1226OC |
| FC479 |
| 9304100052 |
| G116880 |
| HD8850 |
| 422714C91 |
| 422714C92 |
| 437050C91 |
| 515304C91 |
| 21401091 |
| KW865 |
| KW865M |
| EF597 |
| 21013 |
| 2MD39323 |
| 57MD29307 |
| 57MD35 |
| 9R334 |
| 9R35 |
| HA2893 |
| DONP182009 |
| DONP181009 |
| 780038 |
| N2595 |
| S1701 |
| S2595 |
| T2595 |
| 90002822 |
| PAK6880 |
| PAK996 |
| PB865 |
| QSA596 |
| AF2661 |
| 46140305 |
| 46163260 |
| 46163280 |
| 147224 |
| A147224 |
| AT650112 |
| PAF6880 |
| AF784 |
