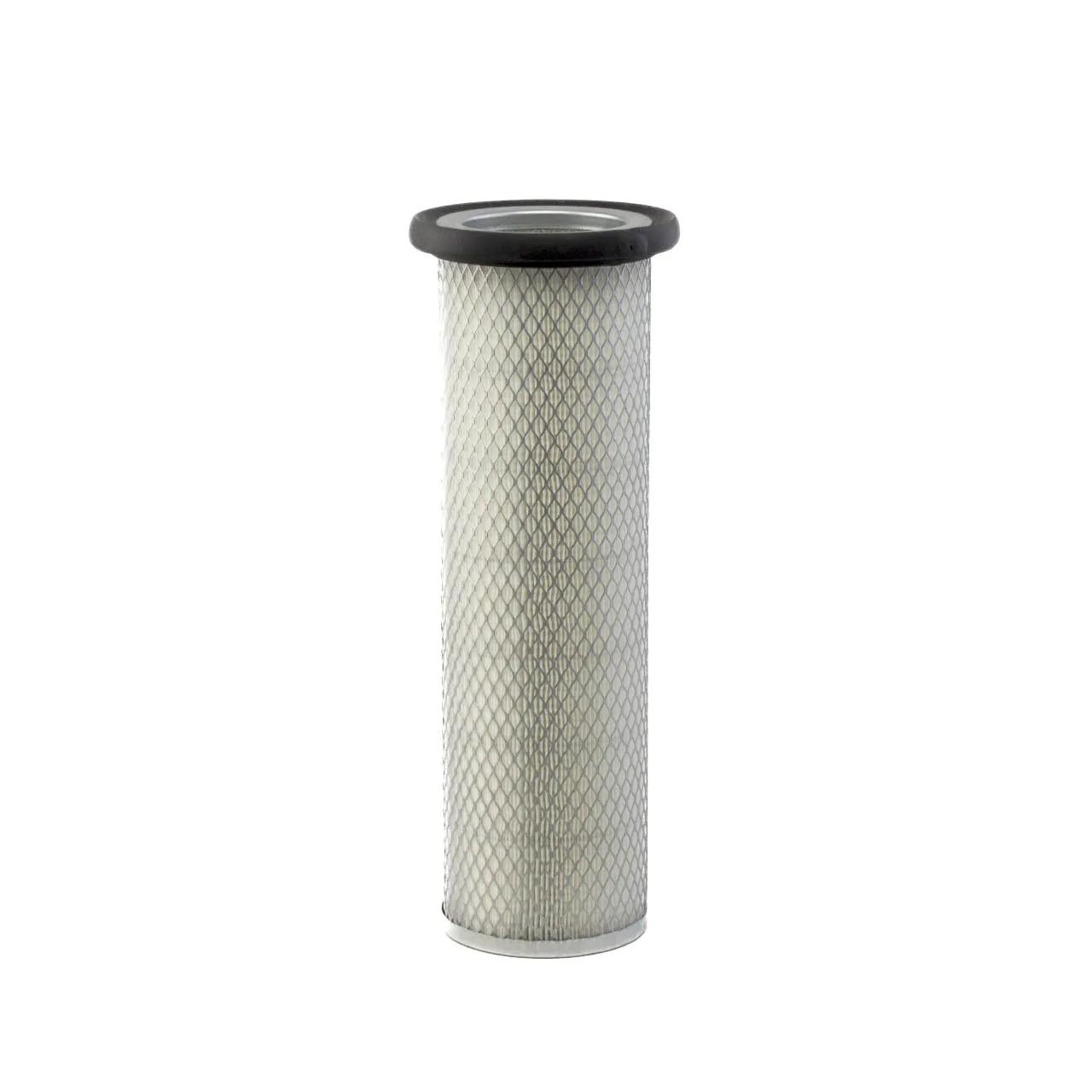

Donaldson Safety Air Filter, 15.65 in Length, 4.59 in Outer Diameter, 3.48 in Inner Diameter
#DONP119375
Product Overview
Air Filter, Safety, Bolt Hole Diameter: 0.66 in, 3.48 in ID, 4.58 in OD, Standards: ISO 5011, Round
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Bolt Hole Diameter | 0.66 in (16.8 mm) |
| Diameter Range | 4 to 4.99 in |
| Efficiency Test Std | ISO 5011 |
| Family | FHG |
| Inner Diameter | 3.48 in (88.4 mm) |
| Length | 15.65 in (397.6 mm) |
| Outer Diameter | 4.59 in (116.4 mm) |
| Length Range | 15 to 15.99 in |
| Style | Round |
| Type | Safety Air Filter |
| Filter Type | Safety |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| AR077 |
| ARM108674 |
| ARM124526 |
| 121792 |
| PA1912 |
| PA912 |
| CFM434 |
| 87920 |
| 88643 |
| LAF8674 |
| P822142 |
| EN10E245 |
| 40062 |
| 40070 |
| 914 |
| 96 |
| 90006 |
| 13760 |
| 9635 |
| AF804 |
| AF804M |
| FA8674 |
| AFR8804 |
| AFR8804M |
| AHR819068 |
| CA546SY |
| CA564SY |
| CAK546SY |
| AF246 |
| AF644 |
| A1350 |
| A4526 |
| A8674 |
| HDA1350 |
| HDA3828 |
| HDA4526 |
| HDA8674 |
| E696LS |
| SA10754 |
| KC185015 |
| LA434 |
| LA907 |
| A735 |
| LAF8077 |
| PC333 |
| A476C |
| A476CL |
| 4510055106 |
| C12100 |
| C121001 |
| EFPA670 |
| FA233 |
| 2920 |
| 6643 |
| 108674 |
| 131350 |
| 70104N |
| 70203N |
| AP108674 |
| 6948591 |
| A63157 |
| A64560 |
| A64560Q |
| AF2256 |
| AF3048 |
| AF3157 |
| AF4560 |
| AF4560Q |
| HDA5328 |
| HDA5465 |
| SL6373 |
| 125002 |
| SFA0804S |
| AR859 |
| AS859 |
| 2799400 |
| U08674 |
| 42920 |
| 46643 |
| 546643 |
| 1429718M91 |
| 312755077 |
| 4149022 |
| MD648 |
| MA4464 |
| MA4464A |
| 267962 |
| 662608 |
| 267931 |
| 666432 |
| 0666432S |
| 10662608 |
| 1183993 |
| 2679629 |
| 3053289 |
| 6626089 |
| 6626899 |
| 70267962 |
| 70662608 |
| 70666432 |
| 71183993 |
| 73053289 |
| MA4464B |
| 1259 |
| 93920 |
| 94643 |
| AP3523A |
| L1163970 |
| HF177 |
| 2914500500 |
| 3216277200 |
| 362541 |
| ELM00056 |
| 466546 |
| 276139 |
| 3607850 |
| 9007691 |
| 76116329 |
| 29N83 |
| N08568 |
| 1849105 |
| 8322161 |
| 8322169 |
| 20526240 |
| 1930752 |
| 249572 |
| WA2273 |
| 94037809 |
| 30030-84200 |
| A476CC |
| 19831604 |
