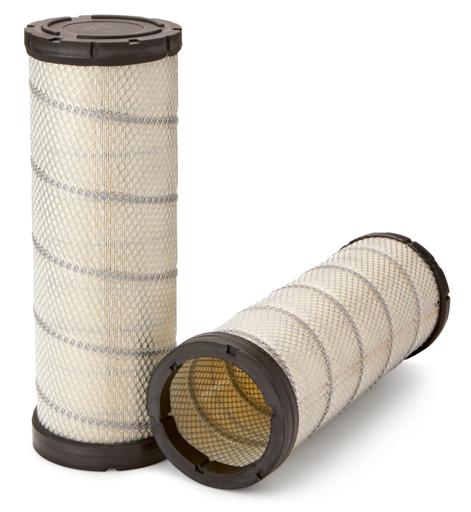

Donaldson Safety Air Filter, 19.72 in Length, 7.11 in Outer Diameter, 5.47 in Inner Diameter
#DONP777869
Product Overview
Air Filter, Safety, Safety Media, 5.46 in ID, 7.11 in OD, Standards: ISO 5011, Radial Seal, For TEREX 15270189
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Application | TEREX 15270189 |
| Family | FRG |
| Inner Diameter | 5.47 in (139 mm) |
| Length | 19.72 in (500.9 mm) |
| Outer Diameter | 7.11 in (180.5 mm) |
| Style | Radial Seal |
| Filter Type | Safety |
| Media Type | Safety |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ALAS17000 |
| RS3871 |
| 88771 |
| LAF8693 |
| P836913 |
| AF25468 |
| AFR825468 |
| CA9966SY |
| AG962028R |
| AF2362 |
| E540LS |
| SA16121 |
| LA1861 |
| CF18190 |
| CF181902 |
| 6771 |
| EASE68638 |
| AP3871 |
| HDA6016 |
| A8580 |
| SFA7869S |
| ASR564 |
| 46771 |
| 546771 |
| 93383E |
| 122231 |
| AG122231 |
| AE37050 |
| SL5666 |
| 119926 |
| 2914001100 |
| 2914501100 |
| 3222188192 |
| 3222188193 |
| 5541941700 |
| 220747 |
| 94771 |
| 30009151 |
| 52RS018346 |
| 255798 |
| 381859A1 |
| 72219823 |
| 76049607 |
| 84031482 |
| KTH0576 |
| LS11P00014S003 |
| 1471158 |
| 1421403 |
| 3I2157 |
| D6150594 |
| 5726803234 |
| MA1422 |
| A13368774 |
| 9826251440002 |
| 102B0079 |
| CDD000138 |
| RN240852 |
| 47400037 |
| 350062 |
| 40040100093 |
| 69034915 |
| 737095603 |
| 11033997 |
| 160167 |
| 160167SEE1421403 |
| 921463 |
| 8900119926 |
| 7C469601BA |
| 1514055 |
| 8970515102 |
| 38902111220 |
| OG0000082648 |
| FC844 |
| 9304100214 |
| A126760 |
| 2242227 |
| 1105353 |
| 4464697 |
| 4466268 |
| 76612496 |
| 76612499 |
| HJ4466268 |
| L4466268 |
| TT220747 |
| M16448 |
| 6276602 |
| 1456800 |
| 1456802 |
| 11Q820120 |
| CV102729 |
| 57921942 |
| 85401354 |
| 503670547 |
| 3352445R1 |
| 61007207 |
| 9231100189 |
| 9231100589 |
| LXS602 |
| YZ11P00001S002K |
| K03 |
| AF2439 |
| 2KZZ7 |
| SC16301 |
| 53506245 |
| AA1342 |
| 225180 |
| 95134 |
