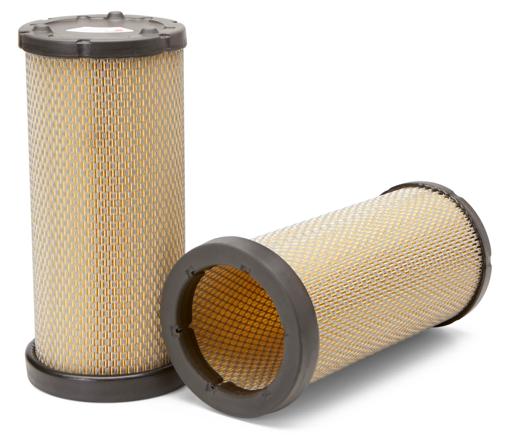

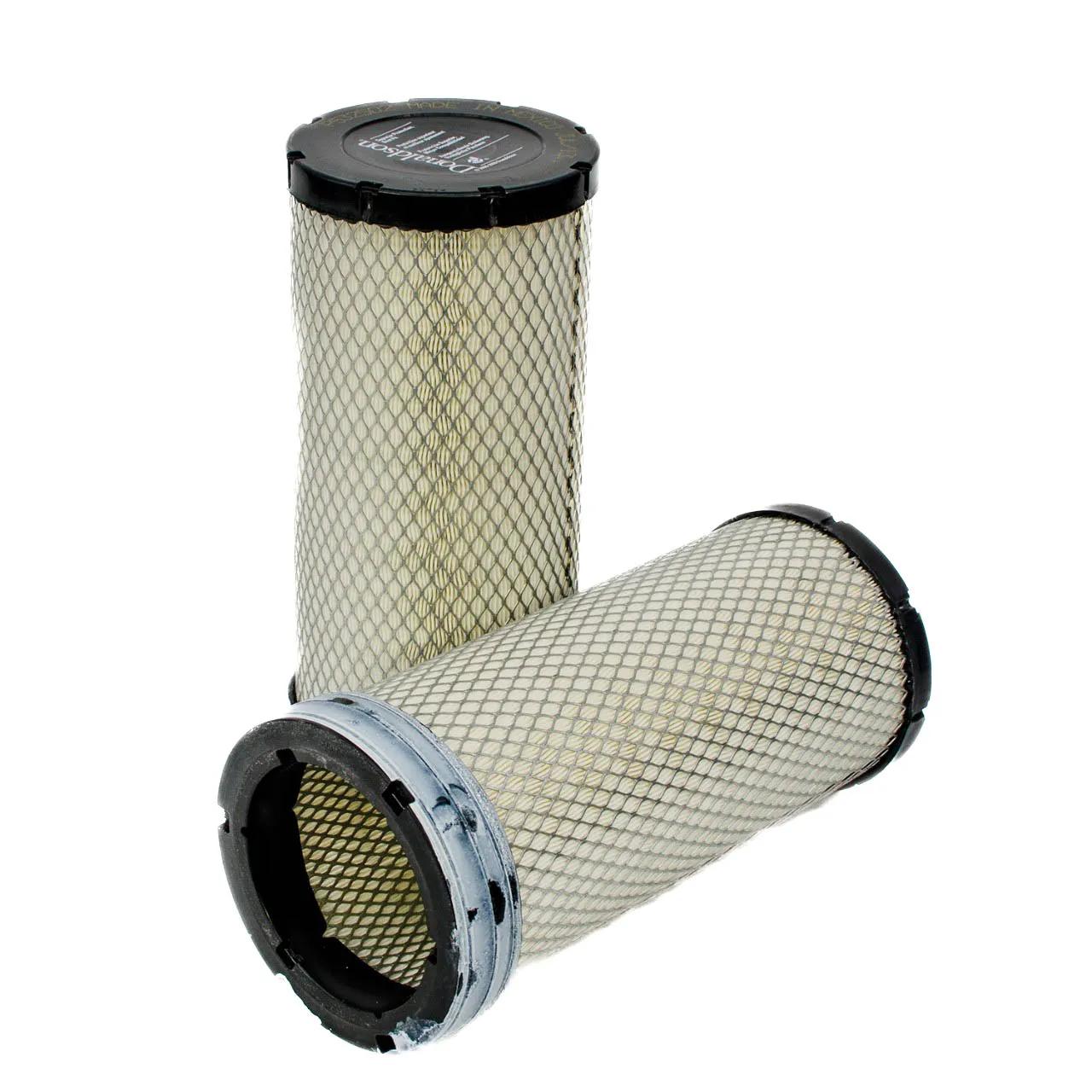

Donaldson Safety Air Filter, Radialseal, 12.44 in Length, 5.89 in Outer Diameter, 4.32 in Inner Diameter
#DONP532502
Product Overview
Manufactured to meet or exceed O.E.M. specifications in function, form, and fit.
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Diameter Range | 5 to 5.99 in |
| Inner Diameter | 4.32 in (109.8 mm) |
| Length | 12.44 in (316 mm) |
| Outer Diameter | 5.89 in (149.4 mm) |
| Length Range | 12 to 12.99 in |
| Style | Radialseal |
| Type | Safety Air Filter |
| Filter Type | Safety |
| Media Type | Safety |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ARM2502 |
| RS3505 |
| 88478 |
| 220036 |
| AF25026 |
| AF25126 |
| AF25126M |
| AFR825026 |
| AFR825126 |
| AFR825126M |
| CA7486SY |
| AF2201 |
| E591LS |
| LAF4502 |
| SA16005 |
| LA1516 |
| CF1574 |
| 6478 |
| A55002 |
| A5550 |
| SL8994 |
| SFA2502S |
| ASR501 |
| 46478 |
| A1594C |
| 3782387M1 |
| AE27160 |
| HF118 |
| E3543 |
| 94478 |
| 505089 |
| 612502 |
| 6I2502 |
| AES2685 |
| AES2685P532502 |
| 7012074 |
| 9576P532502 |
| FC893 |
| 1620A |
| 2242957 |
| 25750 |
| 20242 |
| 6I2502C |
| 688116 |
| AF532502 |
| 811891 |
| 97825 |
| WGA1099S |
| 2833 |
| 28332 |
| A554955502 |
| 3 782 387 M1 |
| ABP N03 A32502 |
| DN P532502 |
| DN P532502 |
| 020242 |
| 00811891 |
| 1P-7958 |
| 1S-4762 |
| 2191-P532502 |
| 2P-5080 |
| 2S1286 |
| 4N-4812 |
| 6I2503 |
| 6N-7847 |
| 6N-8262 |
| 7N-5483 |
| 7S-5474 |
| 7W5317 |
| 8N-6299 |
| 9M-1827 |
| 9S-1128 |
| AF25126MFLG |
| BLA-4502 |
| DONP532502 |
| FIL6478 |
| HLC1071640 |
| HLC1108531 |
| LAF334 |
| MD-7502S |
| P53-2502 |
| RS |
| 46479 |
