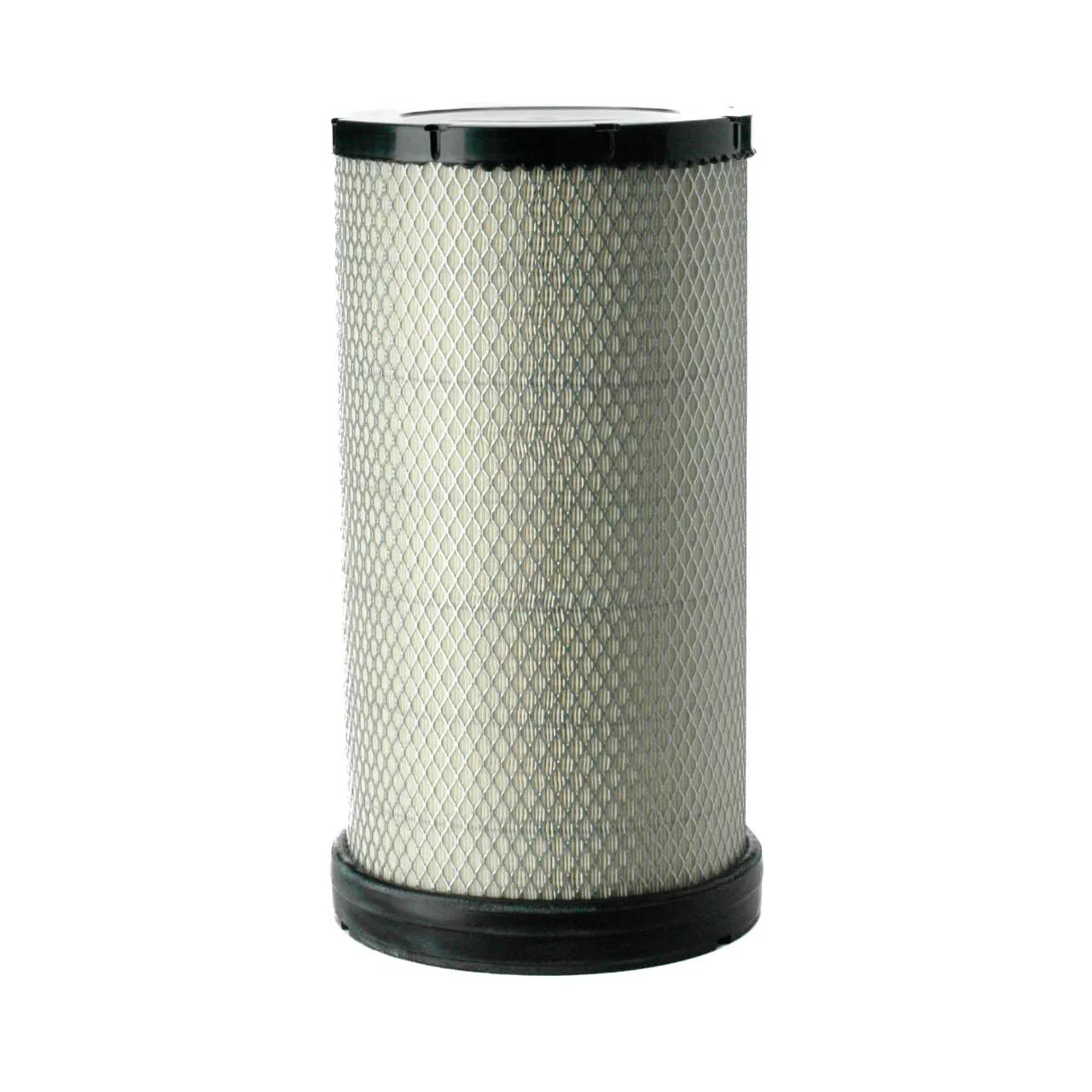

Donaldson Safety Air Filter, Radialseal, 15.18 in Length, 8.33 in Outer Diameter, 6.13 in Inner Diameter
#DONP532510
Product Overview
Manufactured to meet or exceed O.E.M. specifications in function, form, and fit.Air Filter, Safety, Safety Media, 6.12 in ID, 8.33 in OD, Standards: ISO 5011, Radial Seal, For CATERPILLAR 6I2510
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Application | CATERPILLAR 6I2510 |
| Diameter Range | 8 to 8.99 in |
| Inner Diameter | 6.13 in (155.8 mm) |
| Length | 15.18 in (385.6 mm) |
| Outer Diameter | 8.33 in (211.5 mm) |
| Length Range | 15 to 15.99 in |
| Style | Radialseal |
| Type | Safety Air Filter |
| Filter Type | Safety |
| Media Type | Safety |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ARM2510 |
| RS3515 |
| 88589 |
| AF25035 |
| AF25138M |
| AFR825035 |
| AFR825138M |
| CA7476SY |
| AF2211 |
| LAF4510 |
| SA16024 |
| LA1503 |
| CF22160 |
| 6589 |
| A65010 |
| A5563 |
| SL5604 |
| SFA2510S |
| 46589 |
| 504422D1 |
| AE27480 |
| 94589 |
| 612510 |
| 6I2510 |
| AES2675 |
| AES2675P532510 |
| FC922 |
| 2242297 |
| 7025018 |
| EF812R |
| 20407 |
| 323244 |
| AF532510 |
| WGA1103S |
| ABP N03 A32510 |
| DN P532510 |
| DN P532510 |
| 020407 |
| 2191-P532510 |
| 4W-0086 |
| 7N-0688 |
| 7W5216 |

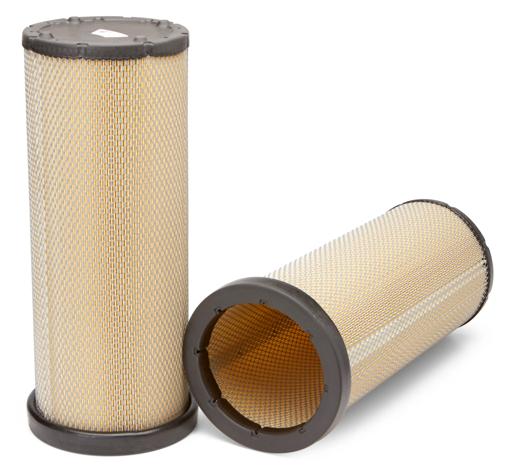

| AF25138MFLG |
| AF25138MLP |
| DONP532510 |
| FIL6589 |
| HLC1129453 |
| MD-7624S |
| A2112C |
| CA6851 |
| HA40321 |
| A24751 |
| A1394C |
| EN1004 |
