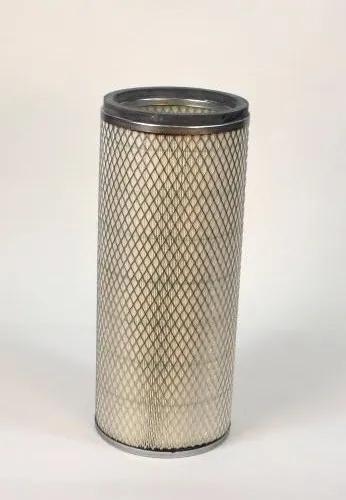

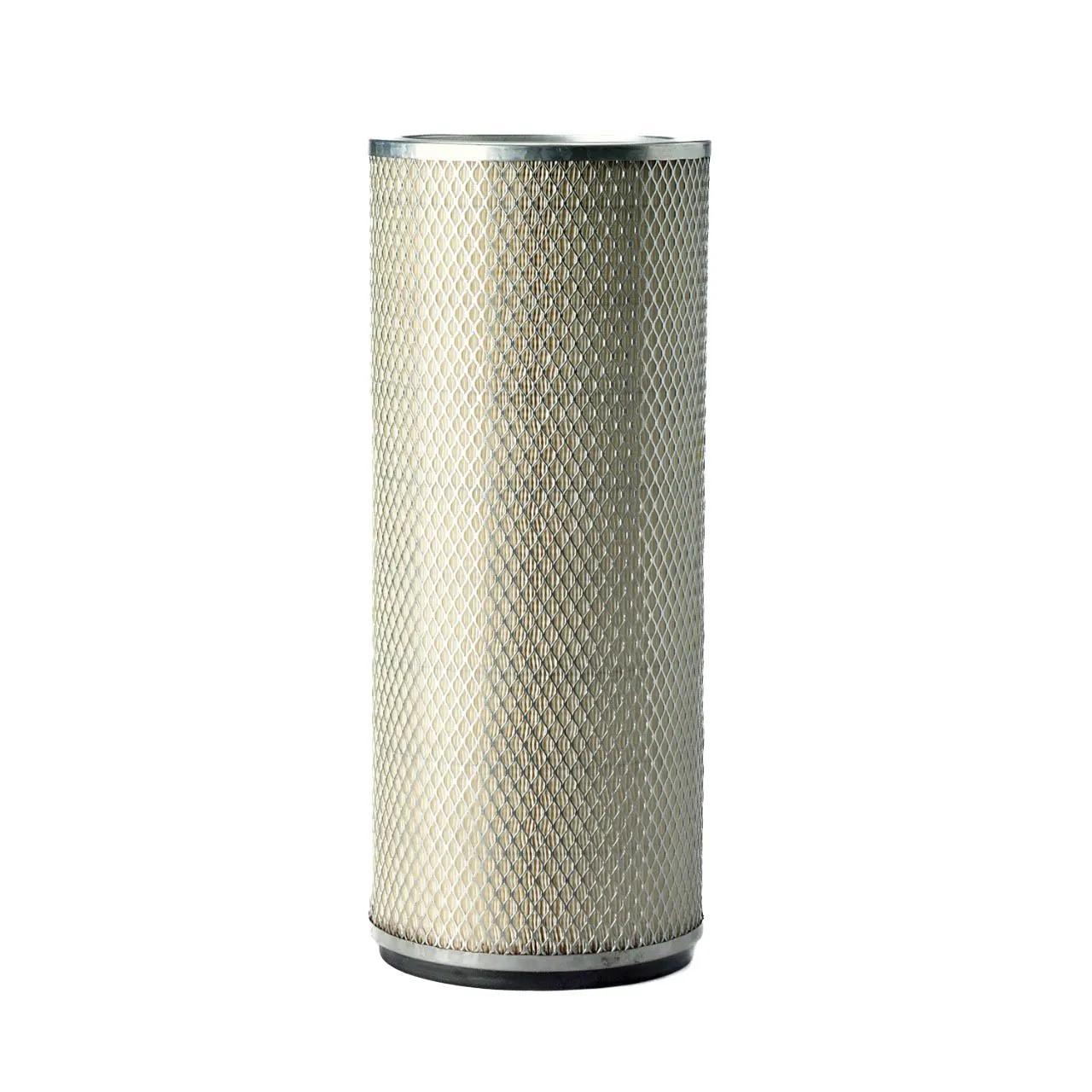

Donaldson Safety Air Filter, Round, 18 in Length, 7.65 in Outer Diameter, 6.04 in Inner Diameter
#DONP124860
Product Overview
Air Filter, Safety, Safety Media, Bolt Hole Diameter: 0.89 in, 6.04 in ID, 7.64 in OD, Standards: ISO 5011, Round, For TEREX 9031711
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Application | TEREX 9031711 |
| Bolt Hole Diameter | 0.89 in (22.7 mm) |
| Efficiency Test Std | ISO 5011 |
| Family | FVG |
| Inner Diameter | 6.04 in (153.5 mm) |
| Length | 18 in (457.2 mm) |
| Outer Diameter | 7.65 in (194.1 mm) |
| Style | Round |
| Type | Safety Air Filter |
| Filter Type | Safety |
| Media Type | Safety |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ARM124860 |
| ARM6003 |
| 121772 |
| PA2519 |
| CFM854 |
| 87494 |
| AF1894 |
| AF1894M |
| FA4860 |
| AFR81894M |
| CA2541SY |
| AF667 |
| A2488 |
| A31791 |
| A4860 |
| HDA2488 |
| HDA31791 |
| HDA4860 |
| SA11844 |
| 1156421 |
| KC230015 |
| LA854 |
| LAF1854 |
| A777C |
| FA818 |
| 2494 |
| 70164N |
| 84955S |
| 6947715 |
| A73245 |
| AF3245 |
| C15947 |
| HDA5469 |
| A7906 |
| SL8871 |
| SFA1894S |
| 250C140S |
| 42494 |
| 542494 |
| 718570 |
| AG718570 |
| AE37020 |
| 1378 |
| 93494 |
| 20000111 |
| 20X98 |
| 5730122 |
| 3I0190 |
| 9Y6810 |
| 459300016505 |
| 7212486000 |
| 961604 |
| M0961604 |
| 853521267 |
| GD1156421 |
| PCA2541SY |
| AES2053 |
| 149282 |
| 9031711 |
| 9052906 |
| FR1028 |
| HP742 |
| 3H1094 |
| 9576P124860 |
| DNP124860 |
| 9304100169 |
| G124860 |
| HD7647 |
| 35355353 |
| 39207972 |
| 51776979 |
| 914633 |
| 391081143 |
| DQ43483 |
| 360628328 |
| 651493 |
| GM47973 |
| 032003B |
| EF508 |
| 21688 |
| K9234680056 |
| 29321373 |
| SS016 |
| SS108 |
| 1401630 |
| 1DX177 |
| 60590D |
| 19502417 |
| AF2494 |
| 1499213 |
| 62016040 |
| 46981 |
| P124860 |
| 4044446 |
| 700611500 |
| 695499900 |
| 686724 |
| 250C140 |
| 608450001 |
| 6084500011 |
| 95612 |
| AF124860 |
| AH124860 |
| 810687 |
| WGA432S |
| DN |
| 2NVF9 |
