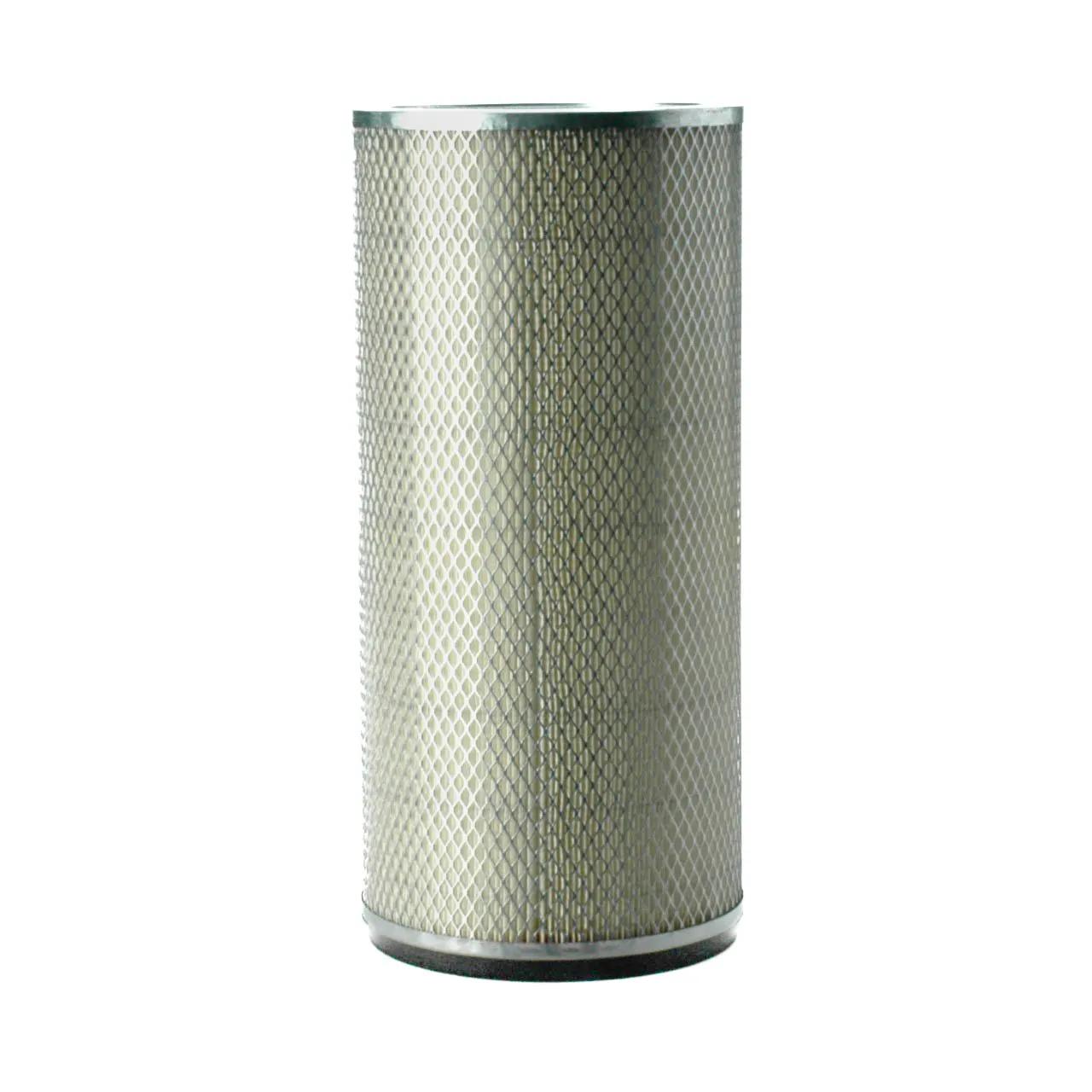

Donaldson Safety Air Filter, Round, 18 in Length, 8.65 in Outer Diameter, 7.06 in Inner Diameter
#DONP124866
Product Overview
Air Filter, Safety, Safety Media, Bolt Hole Diameter: 0.89 in, 7.06 in ID, 8.65 in OD, Standards: ISO 5011, Round
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Bolt Hole Diameter | 0.89 in (22.7 mm) |
| Efficiency Test Std | ISO 5011 |
| Family | FVG |
| Inner Diameter | 7.06 in (179.4 mm) |
| Length | 18 in (457.2 mm) |
| Outer Diameter | 8.65 in (219.6 mm) |
| Style | Round |
| Filter Type | Safety |
| Media Type | Safety |
| Standards | ISO 5011 |
| Product Category | Air Filter |
Interchanges & Equivalent parts:
| ARM124866 |
| 121874 |
| PA2574 |
| CFM1007 |
| 87236 |

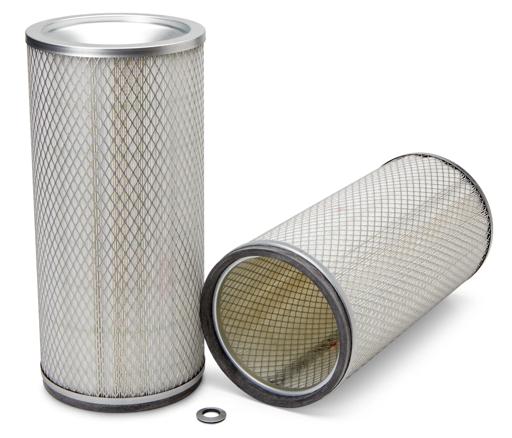

| AF4554M |
| AFR84554M |
| AHR819074 |
| CA6327SY |
| CA6327SYBLK |
| AF726 |
| A4866 |
| HDA4866 |
| SA14504 |
| KC210023 |
| LA1007 |
| LAF1840 |
| A995C |
| FCA6327SY |
| FA886 |
| 2236 |
| 124866 |
| 70155A |
| 70155N |
| 6948185 |
| A73227 |
| A73227Q |
| AF3227 |
| AF3227Q |
| HDA5471 |
| A7944 |
| SL8873 |
| SFA4866S |
| 42236 |
| 542236 |
| 1401655 |
| 700274 |
| AG700274 |
| AE34010 |
| 1357 |
| 93236 |
| 361321 |
| 5536132100 |
| ELM00082 |
| E2157 |
| 3I0192 |
| 9Y6812 |
| 459300015905 |
| 7212486600 |
| 1256176 |
| 12565176 |
| M12565176 |
| 4003040001 |
| 430401 |
| AES2059 |
| 6307051 |
| 499504 |
| 69032289 |
| 4065102 |
| E4065102 |
| FR1029 |
| 3A13689 |
| 1402840R2 |
| FC455 |
| 12451057 |
| 951057 |
| G124866 |
| HD7663 |
| EU4065102 |
| 57790925 |
| RE16809 |
| 657398 |
| GD1402840R2 |
| 20277 |
| 1903931 |
| 29320610 |
| SS080 |
| 1404655 |
| AF2236 |
| P124866016140 |
| 69037512 |
| 47523 |
| 374672 |
| AF124866 |
| AH124866 |
| 125651760 |
| 12656176 |
| 810689 |
| WGA863S |
| CLE387 |
| ELM82 |
| DN P124866 |
| 020277 |
| 01401655 |
| 006307051 |
| 00810689 |
| 004003040001 |
| ABP N03 A24866 |
| DN P124866 |
| 00 |
| 3XUL4 |
