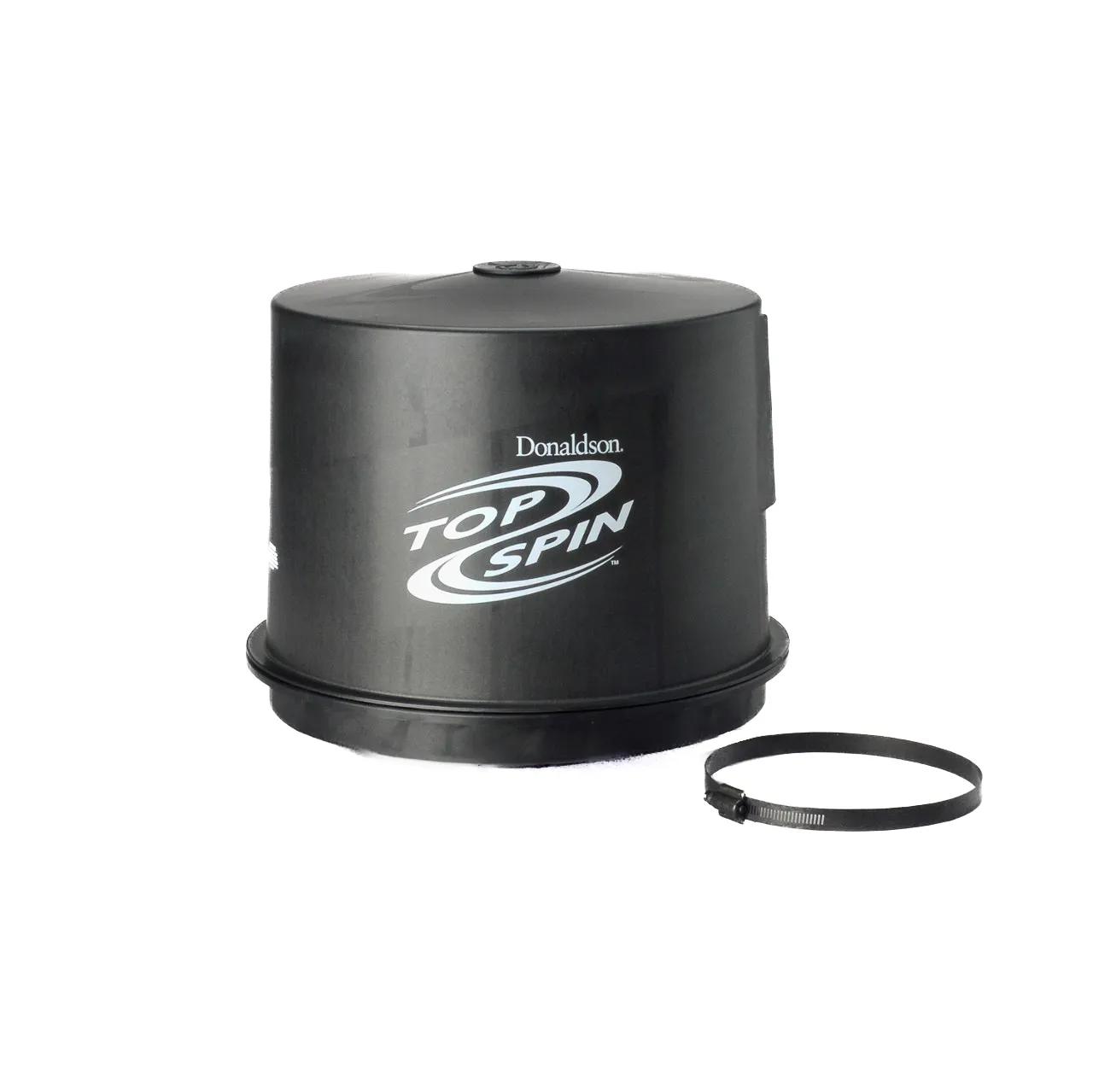

Préfiltre Donaldson Top-Spin, 15,62 po de diamètre
#DONH002439
Sommaire du produit
Préfiltre, Top-Spin, 15,62 po de diamètre, Efficacité de 85 %, 798 PCM (bas régime), 1501 PCM (haut régime), Diamètre intérieur de sortie : 7,03 po, Restriction : 2,01 po (bas régime), 8,74 po (haut régime), 13,44 po H
Caractéristiques et avantages
- Donaldson TopSpin pre-cleaners extend primary air filter life, boost system efficiency, and extend engine life
- Separates up to 85% of incoming contaminant per ISO 5011/SAE J726
- Self-cleaning - no maintenance bowl to clean
- Quick installation - one clamp to tighten
- Lighter than competitive pre-cleaners
Spécifications
| Diameter | 15.62 in (396.8 mm) |
| Efficiency | 85 |
| Height | 13.44 in (341.4 mm) |
| Outer Diameter | 7.03 in (178.56 mm) |
| Rated Flow High Range | 1501 cfm (42.51 m³/min) |
| Rated Flow Low Range | 799 cfm (22.6 m³/min) |
| Restriction HR | 8.75 in H2O (222 mm H2O) |
| Restriction LR | 2.01 in H2O (51.06 mm H2O) |
| Type | Top-Spin |
| Flow Rate | 798 CFM (LR), 1501 CFM (HR) |
| Outlet I.D. | 7.03 in |
| Restriction | 2.01 in (LR), 8.74 in (HR) |
| Standards | ISO 5011, SAE J726 |
| Product Category | Cleaner |
Interchanges et pièces équivalentes:
| 89177 |
| AP8406 |
| 4177 |
| 24177 |
| 524177 |
| 19482 |
| 1622015500 |
| 53506510 |
| 1303281 |
| 1303282 |
| CDD001069 |
| DNH002439 |
| 71434276 |
| YA00026819 |
| 12469239 |
| TY24865 |
| 9214240102 |
| 1586313 |
| 1000181529 |
| 975406 |
| 507501 |
| 1231HH2001 |
| PTH002439 |
| 1083466 |
| AP2439 |
| 240100067863 |
| DN H002439 |
| DN H002439 |
| 1010500140 |
| 2191-H002439 |
| AP8405 |
| DONH002439 |
