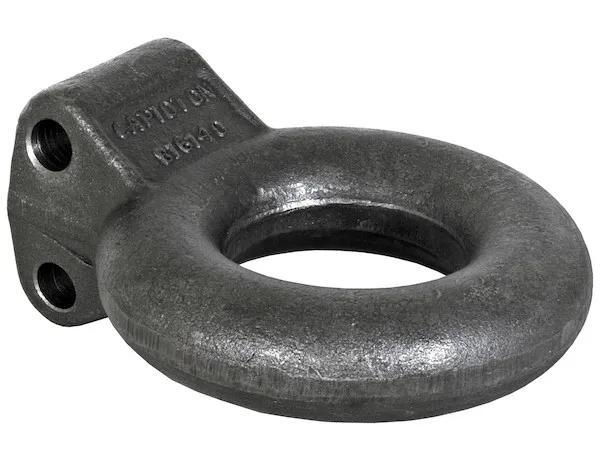

Drawbar Eye, Forged Steel, 10 Ton Capacity, 3 in Inner Diameter, Plain Finish
#BUYB16140
Product Overview
The Forged Steel Tow Eyes from Buyers Products are designed to be bolted into an adjustable channel bracket, allowing you to position the tow eye or lunette for level towing. Simply bolt the eye into the channel bracket at the position that fits your needs, and connect to the pintle hook on your truck. The eye has an interior diameter of 3 in and an outer diameter of 6.25 in. Made of rugged forged steel, it can handle a maximum gross towing weight of 20,000 lb. Available in a plain finish.Drawbar, Forged Steel, Plain, 10 ton, 3 in Eye ID, 6.25 in Eye OD, 0.656 in Hole, Trailer Load: 20000 lb, 2000 lb Vertical Load, For Construction Trailers, Equipment Haulers
Features & Benefits
- Achieve level towing by connecting the tow eye to an adjustable channel bracket.
- Strong forged steel construction can handle towing weights up to 20,000 lb.
- Product is used on construction trailers and equipment haulers.
- Available in corrosion-resistant zinc-plated finish or no finish.
Specifications
| Finition | Brut |
| Matériel | Acier forgé |
| Application | Remorques de construction, Transporteurs d'équipement |
| Capacité | 10 tonnes |
| Diamètre intérieur de l'œillet | 3 in |
| Diamètre extérieur de l'œillet | 6.25 in |
| Hole Size | 0.656 po |
| Mounting Type | Boulon |
| Number of Bolt Holes | 2 |
| Trailer Load | 20000 lb (9070.29 kg) |
| Vertical Load Capacity | 2000 lb (907.03 kg) |
| Product Category | Timon |
| Quantity | 1 |
| Weight | 12.68 lb (5,75 kg) |
