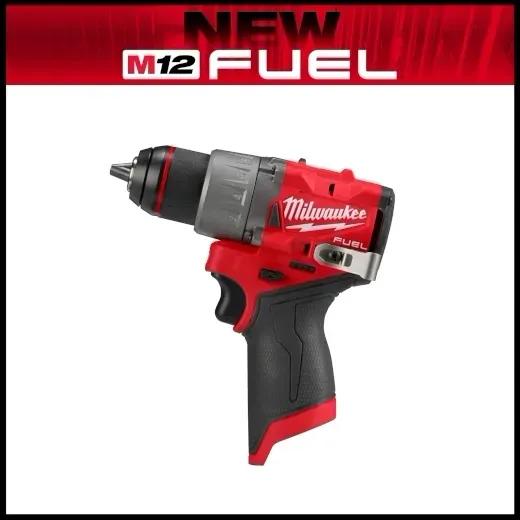

Drill Driver, FUEL™, All Metal Ratcheting Chuck, 1/2 in Chuck, 0 to 1550 rpm

#MWK3403-20

Product Overview


Our M12 FUEL™ 1/2 in drill/driver is the most powerful subcompact drill driver, the most compact in size, and provides the fastest speed under load. The POWERSTATE™ brushless motor delivers the most power for the capability to perform the widest variety of applications at high speed for unrivaled subcompact performance. At only 5.9 in length, this portable drill is the shortest solution in class offering most access into tight spaces. Our REDLINK PLUS™ intelligence delivers top of the line thermal performance to give our users the fastest speed under load in order to drill and drive faster than any other subcompact drill. Using our M12™ REDLITHIUM™ 2.0 Ah compact and 4.0 Ah extended capacity battery packs will deliver more work per charge and more work over the life of the pack than competitive batteries. Our all-metal 1/2 in chuck and all-metal gearcase deliver best-in-class durability. The mechanical clutch delivers consistent torque for driving fasteners. Our M12 FUEL™ 1/2 in drill driver is part of the M12™ system which is fully compatible with over 125 solutions.Drill Driver, FUEL™, All Metal Ratcheting Chuck, Brushless Motor, M12™ Battery, 1/2 in Chuck, Number of Clutch Settings: 12, Number of Speed Settings: 2, Speed Rating: 0 to 1550 rpm, Warranty: 5 Years Charger, 2 Years Battery, Includes: (1) Belt Clip, (1) M12 FUEL™ 1/2 in Drill/Driver, 5.95 in Length

See More
See Less

Features & Benefits


  • POWERSTATE™ brushless motor delivers the power to complete the widest range of applications of any subcompact drill driver
  • Only 5.9 in length for the most access in tight spaces
  • Fastest drilling and driving applications under load, LED light for better visibility in low-light situations
  • Light weight at 2.5 lb for tool belt portability and less fatigue in the work day
  • 1/2 in all-metal chuck for maximum durability, grip and bit retention
  • Mechanical clutch for consistency in driving a wide range of fasteners
  • Unmatched performance with the most runtime in class with the M12 REDLITHIUM™ XC4.0 battery pack
  • All-metal gearcase for ultimate durability, all-metal belt clip for portability
  • 400 in-lb of torque
  • Compatible with all M12™ batteries and chargers

Specifications


Battery System M12™
Chuck Size 1/2 in
Chuck Type All Metal Ratcheting
Includes (1) Belt Clip, (1) M12 FUEL™ 1/2 in Drill/Driver
Length 5.95 in
Motor Type Brushless
Number of Clutch Settings 12
Number of Speed Settings 2
Speed Rating 0 to 1550 rpm
Type FUEL™
Warranty 5 Years Charger, 2 Years Battery
Manufacturer Part Number 3403-20
Product Category Drill Driver
