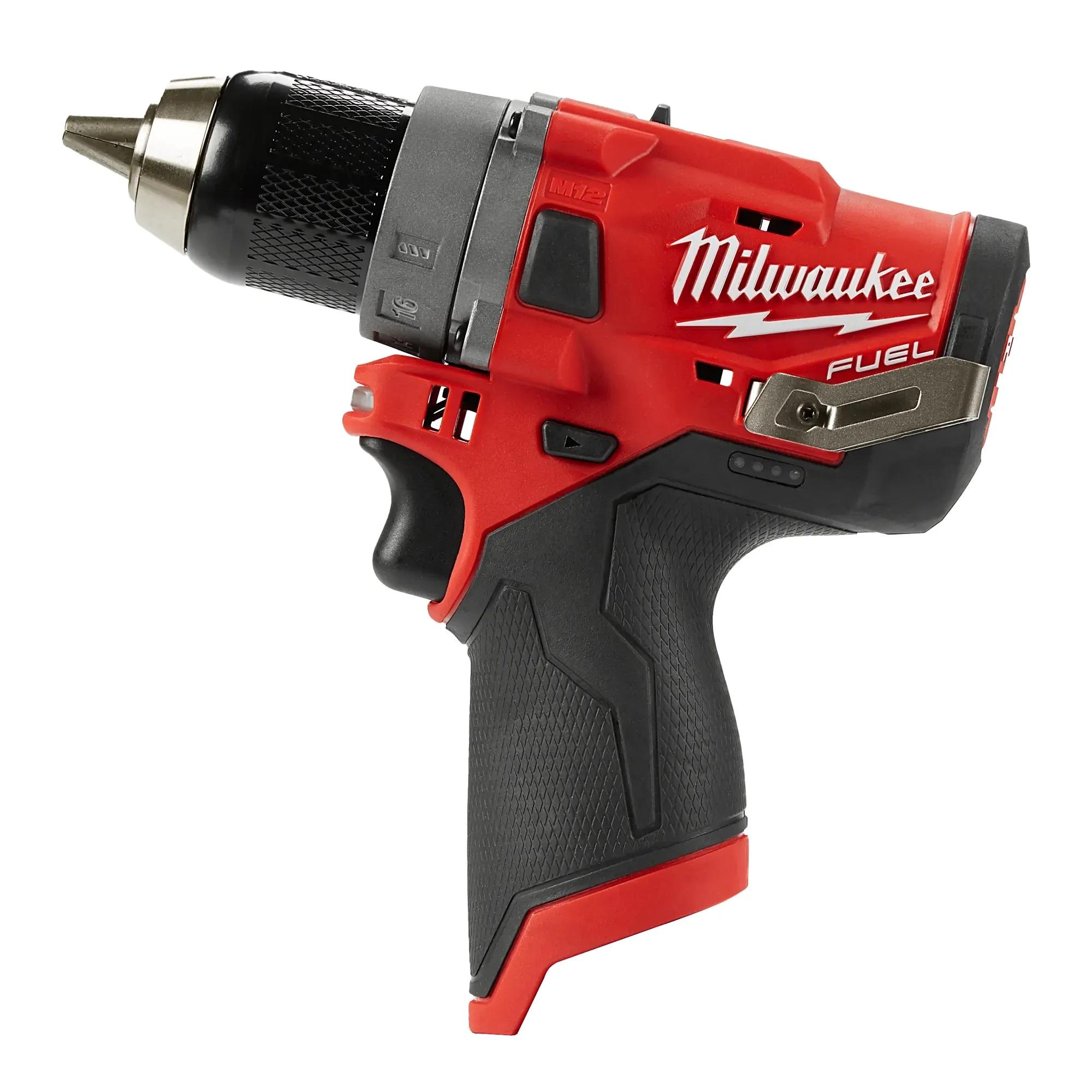

Drill Driver, Metal Single Sleeve - Ratcheting, 1/2 in Chuck, 1700 rpm, 12 V

#MWK2503-20

Product Overview


The M12 FUEL™ drill driver is the most capable, lightest weight, most compact tool in its class. The POWERSTATE™ brushless motor delivers the power to do a wide variety of applications at 1700 rpm’s and 350 in lb of torque. Weighing only 2.3 lb it is extremely portable, great for overhead applications, reduces fatigue throughout the day. At 6.6 in length this tool has the best access in tight spaces. REDLINK™ plus intelligence protects the tool from overloads and overheating while ensuring maximum performance. Using REDLITHIUM™ 2.0 Ah compact and 4.0 Ah extended capacity battery packs they deliver more work per charge and more work over the life of the pack than competitive batteries.Drill Driver, Redlithium Battery, Metal Single Sleeve - Ratcheting Chuck, Powerstate™ Brushless Motor, 2 Ah Battery, M12™ Battery, 1/2 in Chuck, 1700 rpm, 12 V, Warranty: 5 Years Limited, Includes: (1) 2503-20 M12 FUEL™ 1/2 in Drill Driver (Tool Only), (1) Belt Clip, 6.6 in Length, 2.1 in Width, 7.8 in Height

See More
See Less

Features & Benefits


  • Most capable
  • 350 in lb of peak torque
  • Lightest weight
  • Most compact
  • Most capable 12 V Drill with the power to perform a wide range of applications
  • Lightest weight in its class for tool belt portability and less fatigue in the work day
  • Most compact in its class for the best access in tight spaces
  • 1/2 in all metal chuck for maximum grip and bit retention
  • E-clutch for consistent repeatability in driving applications
  • 1700 rpm for faster drilling speeds

Specifications


Battery Capacity 2 Ah
Battery System M12™
Battery Type Redlithium
Chuck Size 1/2 in
Chuck Type Metal Single Sleeve - Ratcheting
Height 7.8 in
Includes (1) 2503-20 M12 FUEL™ 1/2 in Drill Driver (Tool Only), (1) Belt Clip
Length 6.6 in
Motor Type Powerstate™ Brushless
Speed Rating 1700 rpm
Voltage Rating 12 V
Warranty 5 Years Limited
Width 2.1 in
Manufacturer Part Number 2503-20
Product Category Drill Driver
Weight 2.3 lb
