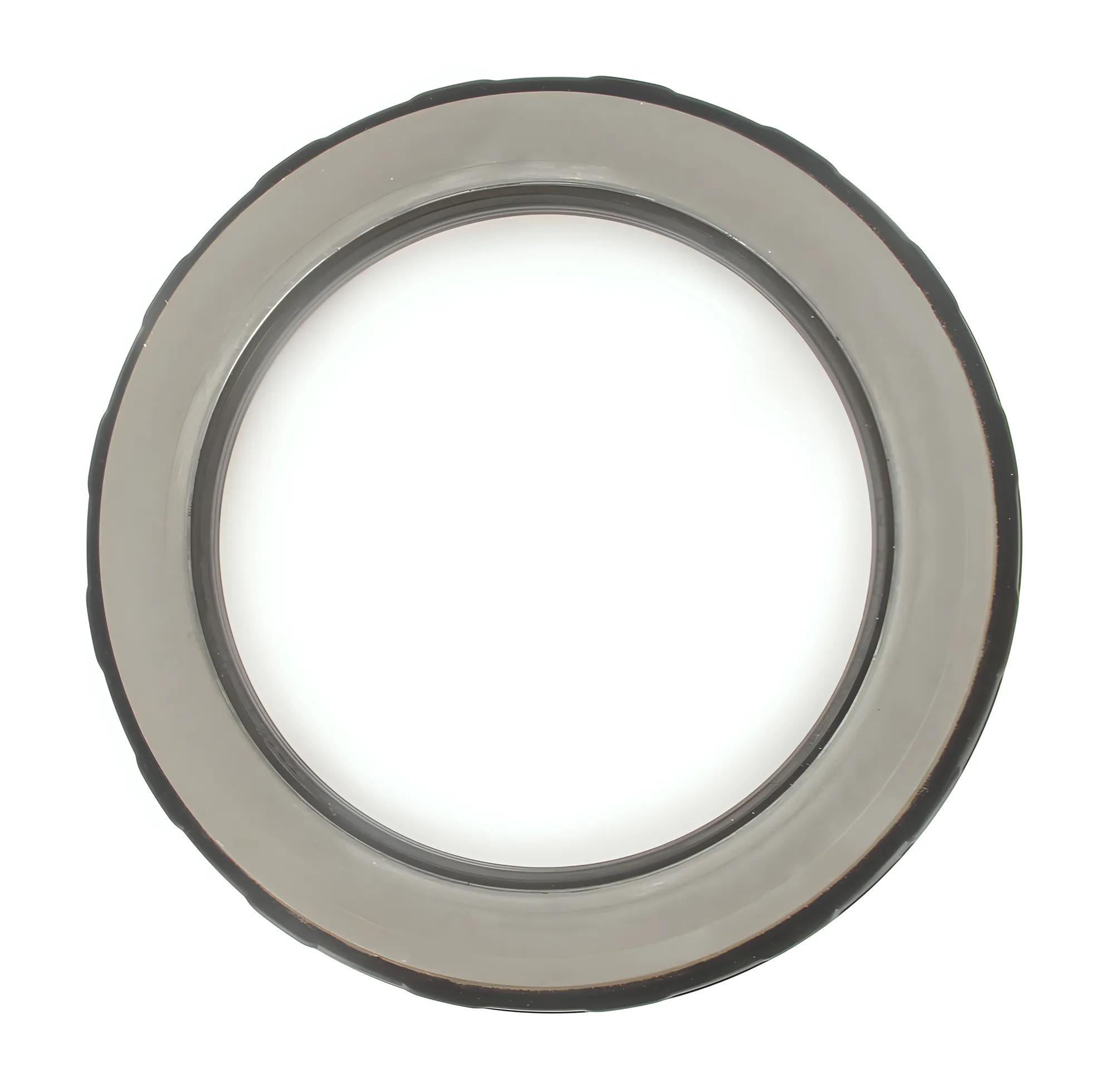

Drive Axle Scotseal Plus XL Oil Seal
#SKF42673
Product Overview
The ScotSeal PlusXL is a Rubber Unitized, One Piece Design.
Features & Benefits
Features & Benefits
SKF42673 - Documents de caractéristiques - A
SKF42673 - Documents de caractéristiques - B
SKF42673 - Documents de caractéristiques - C
SKF42673 - Documents de caractéristiques - D
SKF42673 - Documents de caractéristiques - E
SKF42673 - Documents de caractéristiques - F
SKF42673 - Documents de caractéristiques - G
SKF42673 - Documents de caractéristiques - H
SKF42673 - Documents de caractéristiques - I
- The ScotSeal Plus XL Consists of Four Sealing Lips: A Spring Loaded Primary Sealing Lip With Patented Waveseal Design That is Factory Pre-Lubed,
- a Radial and Axial Dirt Lip , Plus an Outer Bumper Lip That Acts as a Priliminary Dirt Excluder.
- ScotSeal PlusXL Requires No Special Installation Tools and Maintains a Rubber to Metal Contact Between the Seal O.D. and the Hub Bore Surface,
- as Well as a Rubber to Metal Contact Between the Packing I.D. and Spindle or Axle.
- The New High Temperature, Synthetic Lubricant Freindly Material of the ScotSeal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an Excellent Choice for Frequent Braking Applications.
- HNBR Elastomeric Material Provides Heat Resistance up to 300 Degrees Farenheit and Broad Compatibility With Today's Synthetic Lubrication Fluids.
- The Unsurpassed Exclusion Properties Allow the ScotSeal PlusXL to Perform in Very Harsh Conditions.
- Worn Hubs and Spindles Are Not a Problem for the ScotSeal PlusXL.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Contient | (1) Oil Bath Seal |
| Diamètre intérieur | 4-1/4 po (10,8 cm) |
| Joint d'étanchéité - Diam. intérieur | 4 to 4,99 po |
| Joint d'étanchéité - Diam. extérieur | 6 to 6.99 in |
| Séries | Scotseal Plus XL |
| Type | Joint de roue (PlusXL) |
| Code VMRS | 18001004 |
| Épaisseur de la paroi | 1-1/4 in (3.18 cm) |
Interchanges & Equivalent parts:
| 2ER917 |
| 48278 |
| 32QJ264 |
| 370031 |
| 370031A |
| 42671 |
| 42673 |
| 380031 |
| 380031A |
| 3090904 |
| 3910004 |
| 3918972 |
| 3929090 |
| 3929130 |
| 3930104 |
| 3930204 |
| CR42671 |
| CR42673 |
| 85104742 |
| N42671 |
| UZ0852E |
| XCR42671 |
| HS42671 |
| TKR852 |
| 2718W1705RING |
| 2132W1515RING |
| 309-0904 |
| 370030A |
| 393-0104 |
| 393-0204 |
| 42672 |
| CRI42673 |
| 42673-CR |
| 370031AFDM |
| 380031AFDM |
| CHR 42673 |
| CHR42671 |
| CHR42673 |
| XCR 42671 |
| MER0204 |
| 145842671 |
| 145842673 |
| ZAR42671 |
| 965842671 |
| 789400 |
