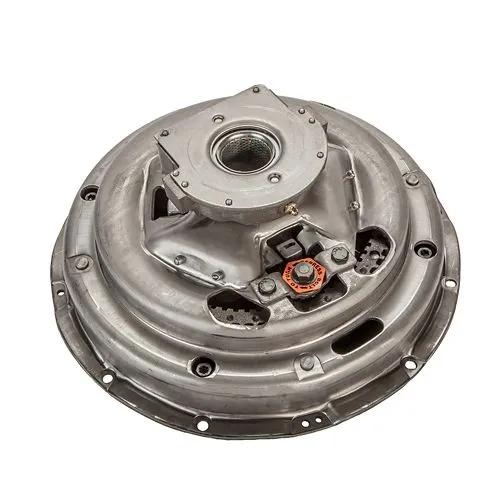

Eaton Medium-Duty Clutch 1402 SAS 1.75 in, 860 ft-lb Torque
#EAT107237-10
Product Overview
Reliability and long life are key reasons why Fuller clutches are the top-selling clutches in North America. Eaton offers a complete line of push and pull type medium-duty clutches with application coverage from 100 to 330 horsepower engines and up to 1150 ft-lb of torque. This clutch features a 1.75 in spline diameter, 860 ft-lb torque rating, and is designed for manual transmissions. Application and adjustment guidelines ensure the reliability and long life expected from Fuller clutches.Clutch, Medium-Duty, Manual Transmission, 0.5 to 0.56 in Bearing Travel, 2 Discs, 10 Spline Count, 1.75 in Spline Dia, 860 ft lb Torque Rating
Features & Benefits
- Coaxial 8 Spring Disc Type
- Pull Release Type
- Includes Pressure Plate with attached Release Bearing, (2) Clutch Discs, Center Plate with Ring
- Standard Ceramic Friction Material with (3) buttons per side
- Medium-Duty Clutch suitable for 860 ft-lb torque
- Manual Transmission Compatible
Specifications
| Clutch Size | 14 po |
| Facing Material | Céramique standard |
| Pre-Damper | Non |
| Release Type | Traction |
| Spline Diameter | 1,75 po |
| Spline Diameter-Spline Count | 1-3/4 po (10 Cannelure) |
| Transmission Type | Manuelle |
| Type | Service moyen |
| Weight | 110 |
| Application | Moteurs de 100 à 330 chevaux |
| Bearing Travel | 0,5 à 0,56 po |
| Damper Spring Count | 8 |
| Number of Discs | 2 |
| Spline Count | 10 |
| Torque Rating | 860 pi lb |
| Product Category | Embrayage |
Interchanges & Equivalent parts:
| CCC107237-10 |
| SPI107237-10 |
| 10723710 |
| C10723710 |
| EZ1072374CB |
| 107237-10 |
