Eaton Reman Medium-Duty Clutch, 1650 ft-lb Torque, 2 in Spline Diameter, Manual Transmission
#EAT108391-74MO
Product Overview

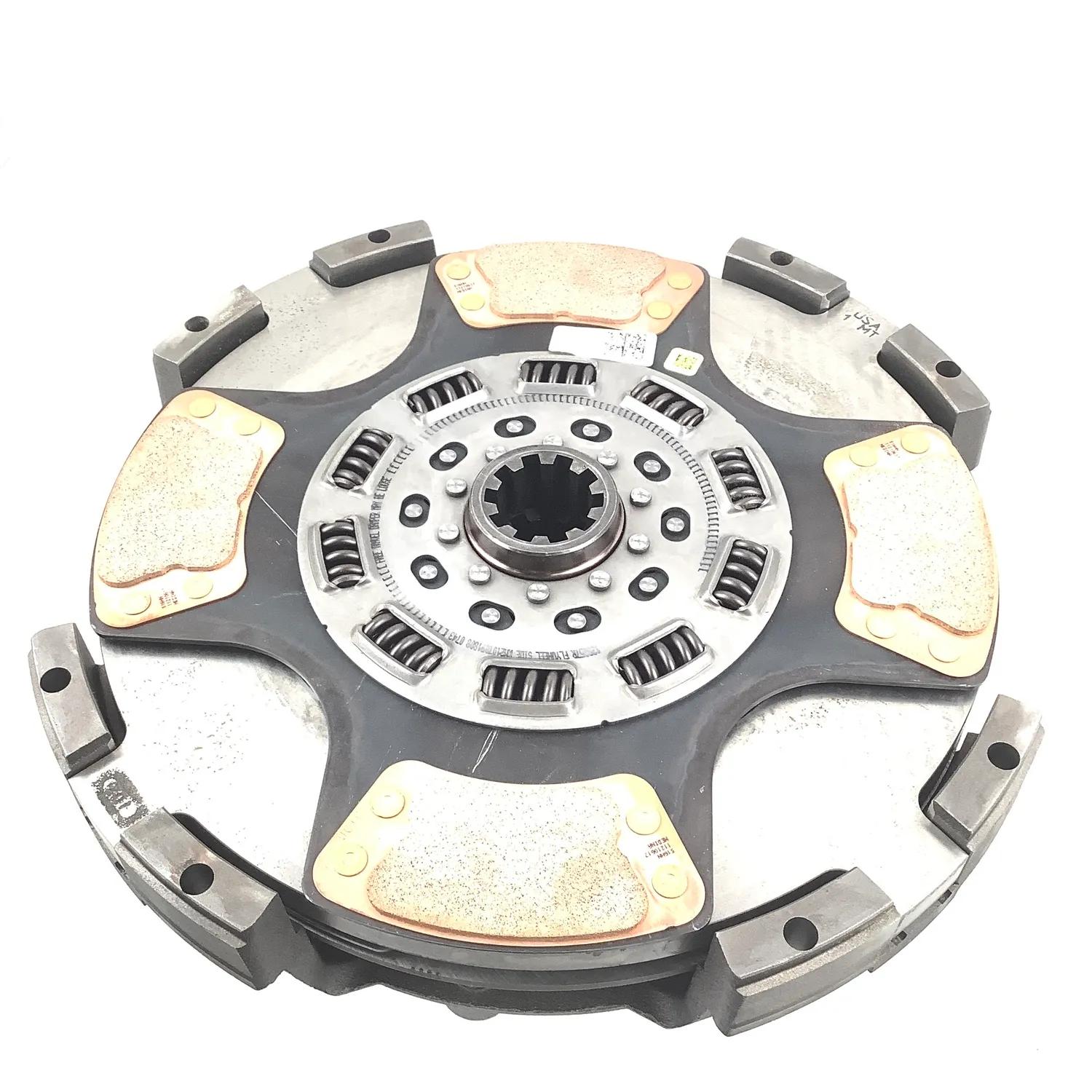

Reliability and long life are key reasons why Fuller clutches are the top-selling clutches in North America. Eaton offers a complete line of push and pull type medium-duty clutches with application coverage from 100 to 330 horsepower engines and up to 1650 ft-lb of torque. This clutch assembly includes a pressure plate with attached release bearing, two clutch discs, and a center plate, designed to ensure dependable performance and long service life.Clutch, Medium-Duty, Manual Transmission, 10 Damper Spring Count, 10 Spline Count, 2 in Spline Dia, 1650 ft lb Torque Rating
Specifications
| Clutch Size | 15-1/2 in |
| Facing Material | Ceramic |
| Height (in.) | 7.25 |
| Input Shaft Size | 2.00" - 10 |
| Length (in.) | 17 |
| Number of Discs (EA) | 2 |
| Pre-Damper | No |
| Spline Diameter | 2 in |
| Spline Diameter-Spline Count | 2 in (10 Spline) |
| Transmission Type | Manual |
| Type | Medium-Duty |
| Width (in.) | 17 |
| Bearing Travel | Attached release bearing |
| Damper Size | Coaxial 10 Spring |
| Damper Spring Count | 10 |
| Friction Pad Count | 4 |
| Height | 7.25 |
| Length | 17 |
| Number of Discs | 2 |
| Spline Count | 10 |
| Torque Rating | 1650 ft lb |
| Width | 17 |
| Product Category | Clutch |
Interchanges & Equivalent parts:
| BU15501874 |
| RC597EZDCX |
| SPI108391-74MO |
| C10839174MO |
| 108391-74MR |
| 10839174MO |
| ABPN251551650 |
| 108391-74MO |
| CCC108391-74MO |
