ECCO

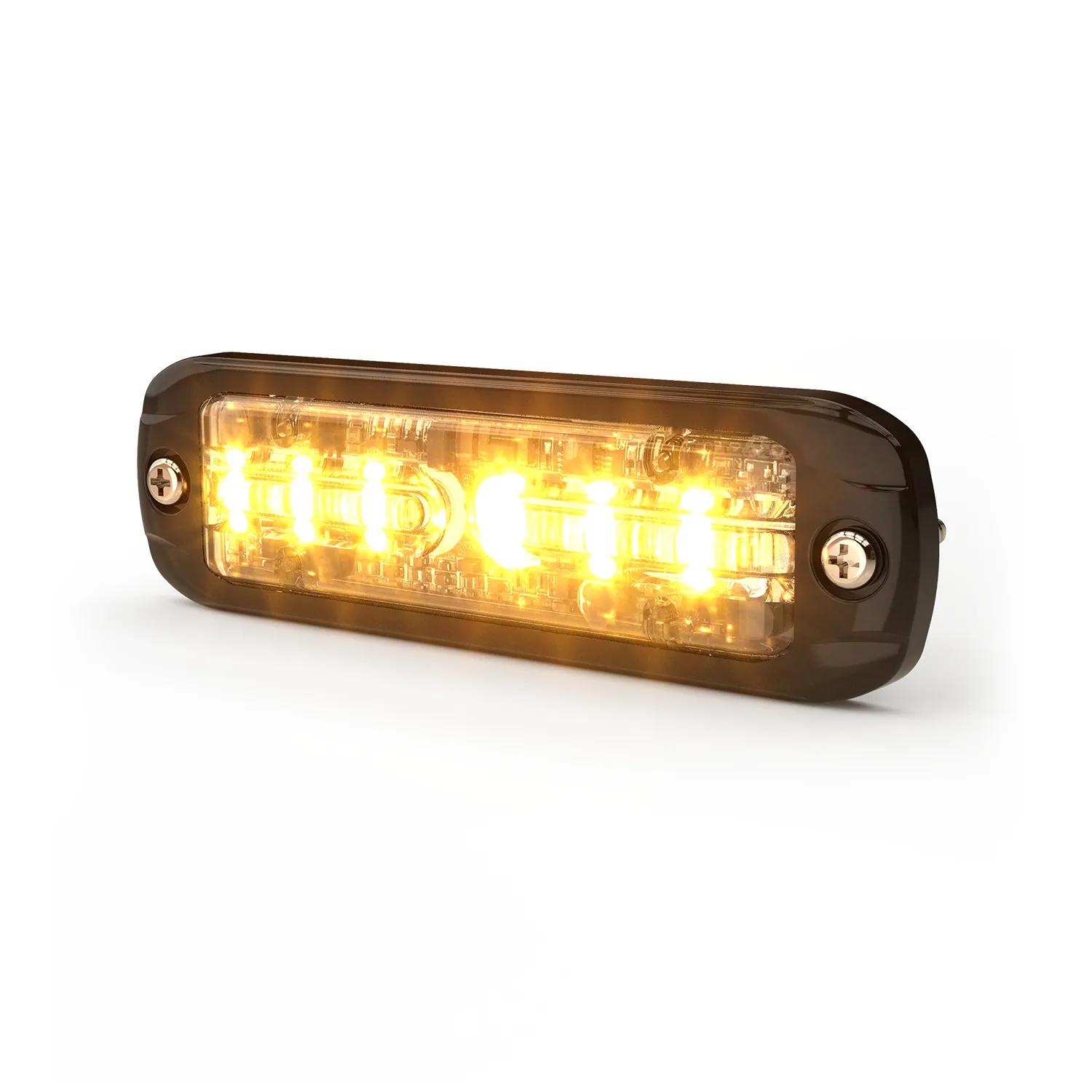

ECCO Directional Light, LED Light, Bolt Mounting, Aluminum, Clear Lens, 0.76 A, 36 mm Height, 121 mm Length, -30 to 50 °C, Class 1 SAE, Rectangular Shape
#ECIED3801A
Product Overview
ED3801 and ED3802 directional LEDs are bright and versatile warning lights suited to a wide variety of applications. Their ultra-low profile makes them easy to install virtually anywhere on a vehicle and are 25% thinner than previous models. All models offer wide angle optics and multiple flash patterns, including synchronization with other units for simultaneous or alternating operation. Each LED color can be controlled independently.Directional Light, LED Light, Bolt Mounting, Aluminum, Clear Lens, 0.76 A, 36 mm Height, 121 mm Length, -30 to 50 °C, Class 1 SAE, Rectangular Shape, Standards: SAE Class 1, IP69, IP67, IP69K, R10, RCM, RoHS, 12 to 24 V, 121 mm Width
Features & Benefits
- Sleek, low-profile design that allows for easy installation in a variety of locations
- 25% thinner than previous models
- Delivers a bright, powerful off-angle performance with its curved end optics
- Sync-capable with other ecco products
- Multiple flash patterns with phase 1 and phase 2 syncing capabilities
- Current draw (all versions) 1A
Specifications
| Height | 36 mm |
| Length | 121 mm |
| Lens Color | Clear |
| Material | Aluminum |
| Mounting Type | Bolt |
| Operating Temperature | -30 to 50 °C |
| SAE Class | Class 1 |
| Shape | Rectangular |
| Standards | SAE Class 1, IP69, IP67, IP69K, R10, RCM, RoHS |
| Voltage Rating | 12 to 24 V |
| Width | 121 mm |
| Current Rating | 0.76 A |
| Light Type | LED |
| Manufacturer Part Number | ED3801A |
| Product Category | Directional Light |
