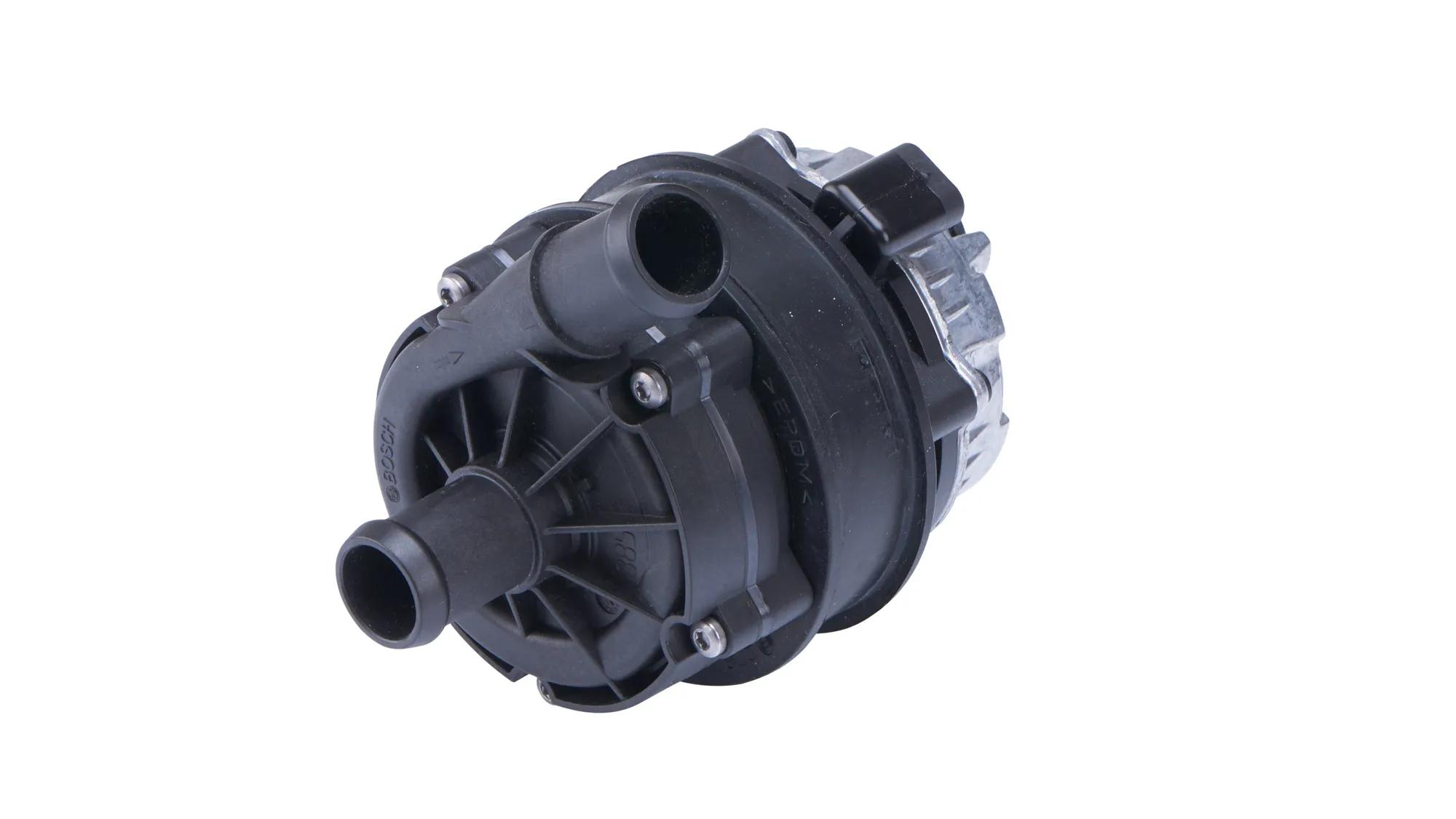

Electric Cooling Pump, PCE, 1200 lph Flow Rate, 0.6 bar

#RBG392024041

Product Overview


The Bosch coolant pump PCE in 24 V is designed for vehicles with a 24 V on-board voltage system, such as trucks or construction machinery. Thanks to its robust design and long service life, it can withstand the demanding requirements of these vehicles. The PCE 24 V from Bosch is not only suitable for use in vehicles, but also for industrial applications such as the cooling of laser welding systems. Other applications include, for example, the cooling of diesel generators and stationary power plants for electricity generation. The Bosch centrifugal pump ensures reliable and efficient cooling for smooth operation.Electric Cooling Pump, PCE, 1200 lph Flow Rate, 0.6 bar, Standards: IPX7, 24 V, For HVAC Units for Agricultural and Construction Machinery, Air Conditioning and Cooling Systems for Railway Vehicles, Such as Trains and Locomotives, Pump for Seat Heating or Cabin Heating in Trucks, Parking Heater for Trucks and Commercial Vehicles, Circulation Pump for 24V Applications

See More
See Less

Features & Benefits


  • Degree of protection: IPX7
  • Operating mode: S1
  • Nominal voltage: 24 V
  • Control: PWM
  • Medium: water/glycol (50/50)

Specifications


Type PCE
Weight 0.665 kg
Application HVAC Units for Agricultural and Construction Machinery, Air Conditioning and Cooling Systems for Railway Vehicles, Such as Trains and Locomotives, Pump for Seat Heating or Cabin Heating in Trucks, Parking Heater for Trucks and Commercial Vehicles, Circulation Pump for 24V Applications
Flow Rate 1200 lph
Operating Pressure 0.6 bar
Standards IPX7
Voltage Rating 24 V
Manufacturer Part Number 392024041
Product Category Electric Cooling Pump
